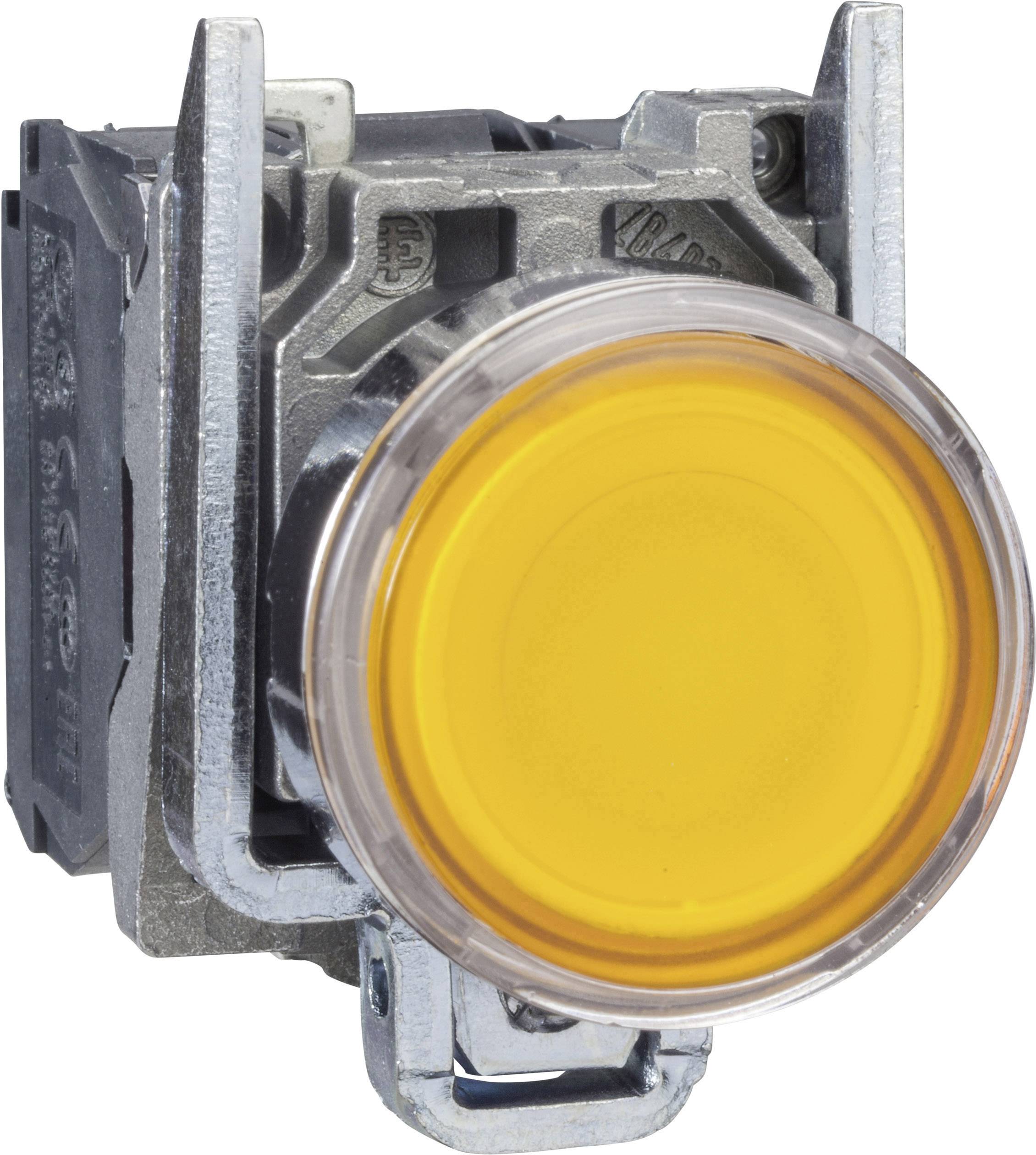

Schneider Electric XB4BW3565 XB4BW3565 Illuminated push button 600 V 6 A momentary (L x W x H) 57 x 30 x 47 mm IP66, IP6
EAN:
Part number:
Item no:
Product type
Illuminated push button
Lighting type
LED
Contact type
1 maker
1 breaker
Switching voltage
600 V
Switching current (max.)
6 A
Technical specifications
- Product type
Illuminated push button
- Switch/button features
illuminable
- Casing/button colour
Chrome
Yellow
- Functions
momentary
- Lighting type
LED
- Bulb type
LED (monochrome)
- Contact type
1 maker
1 breaker
- Material
Metal
- Switching voltage
600 V
- Switching current (max.)
6 A
- Length
57 mm
- Width
30 mm
- Height
47 mm
- Recess diameter
22 mm
IP66
IP67
IP69
IP69K
- Content
1 pc(s)
- Dim
(L x W x H) 57 x 30 x 47 mm
- Switching current (inductive)
6 A
- Type
XB4BW3565
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1982263 Schneider Electric XB4BW3565 XB4BW3565 Illuminated push button 600 V 6 A momentary (L x W x H) 57 x 30 x 47 mm IP66, IP6
Description
Control and signaling devices made of metal, diameter 22mm. The control and signaling devices designed for industry combine simple installation with great flexibility and robust designs. The robust 3-point mounting with only one screw offers enormous security and saves assembly time.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
