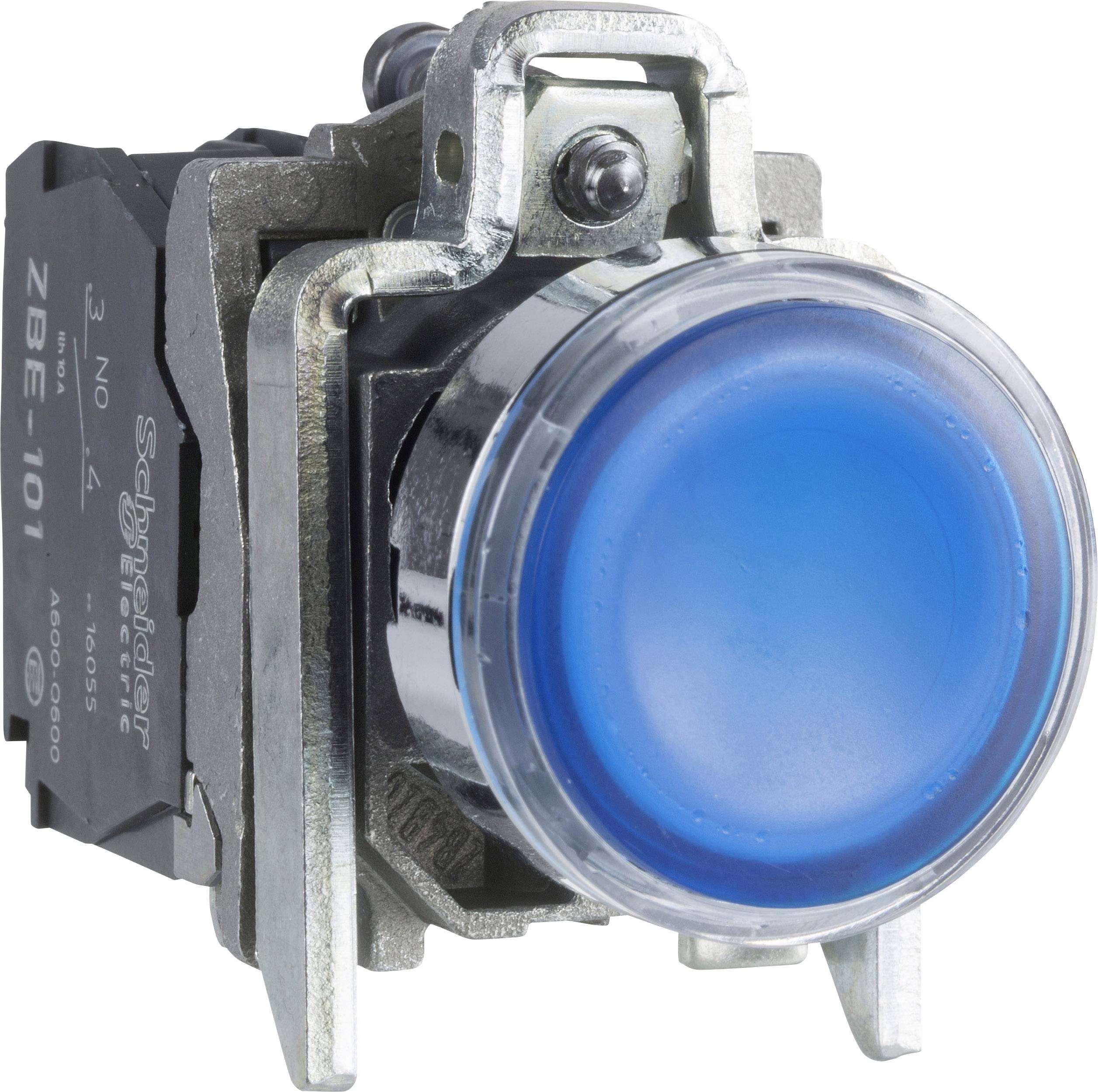

Schneider Electric XB4BW36B5 Harmony XB4BW36B5 Pushbutton Planar 1-button Blue Push 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Product type
Pushbutton
- Switch/button features
Planar
- Lighting type
LED
- Bulb type
LED (monochrome)
- Operation type
1-button
- Colour
Blue
- Factory colour
Blue
- Print motif
None
- Connection
Screws
- Unlocking mechanism
Push
- Shape
Round
- Functions
momentary
- Contact type
1 maker
1 breaker
- Recess diameter
22.5 mm
- Type
flat
IP66
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Switching voltage
600 V
- Switching current (max.)
6 A
- Width
30 mm
- Height
47 mm
- Content
1 pc(s)
- Dim
(W x H x D) 30 x 47 x 57 mm
- Depth
57 mm
- Type
Harmony XB4BW36B5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 446689 Schneider Electric XB4BW36B5 Harmony XB4BW36B5 Pushbutton Planar 1-button Blue Push 1 pc(s)
Description
Scope of delivery
- Mounting flange and auxiliary switch block.
- This text is machine translated.
