Buy Schneider Electric XB4FD21 XB4FD21 Selector switch Rotary switch Black 2 x 90 ° 1 pc(s) Piece

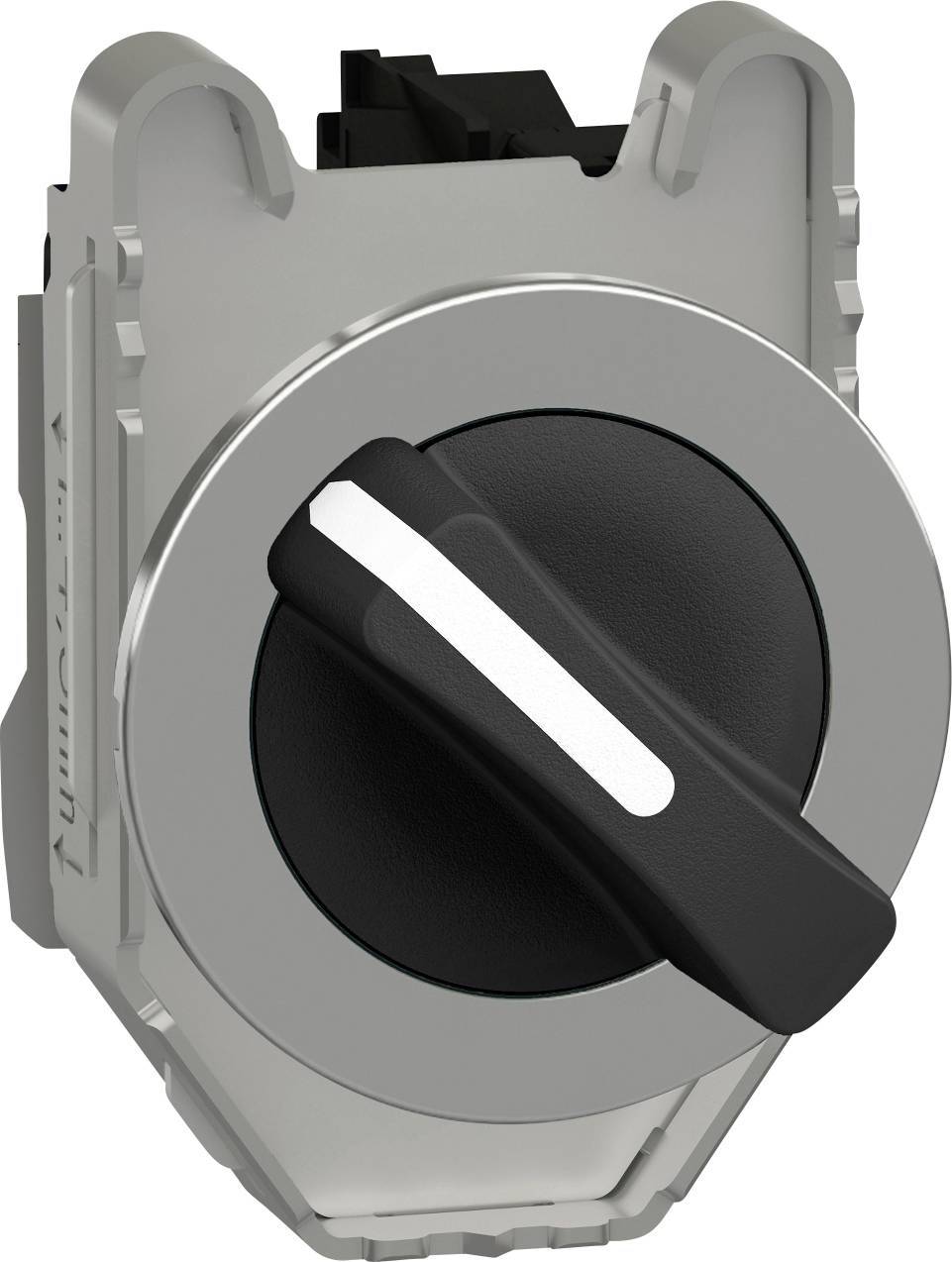

A silver rotary switch with a black handle, mounted on a vertical surface, is shown. The switch can be rotated by 90 degrees.

Image similar

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Material: Chrome-coated metal; Zamak
Tightening torque 0.8…1.2 Nm
Operating position information: 2 positions 90°
Operation of the contacts: Graduated switching
Contact material: Silver alloy (AG/Ni)

Packaging type: Piece

Product type: Selector switch

Operation type: Rotary switch

Colour: Black

Factory colour: Black

Case colour: Chrome

Connection: Screw terminal

Shape: Round

Functions: latch

Contact type: 1 maker

Durability: 1 000 000 cycles

Recess diameter: 30.5 mm

Type: Complete; flush; standard handle

: IP66
IP67
IP69
IP69K

Min. temperature: -40 °C

Max. temperature: +70 °C

Switching voltage: 600 V

Switching current (max.): 6 A

Switching angle: 2 x 90 °

Width: 36.6 mm

Height: 47 mm

(Ø): 30 mm

Content: 1 pc(s)

Dim: (Ø x H) 30 mm x 47 mm

Weight: 95 g

Depth: 70 mm

Type: XB4FD21

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Type

Switching angle

Factory colour

Functions

Operation type

Recess diameter

Packaging type

Schneider Electric XB4FD21 XB4FD21 Selector switch Rotary switch Black 2 x 90 ° 1 pc(s) Piece

Item no:2373810

This article

Complete; flush; standard handle

2 x 90 °

Black

latch

Rotary switch

30.5 mm

Piece

Schneider Electric XB4BK133G5 XB4BK133G5 Selector switch illuminable Rotary switch Green 3 x +/- 45 ° 1 pc(s)

Item no:2373683

Complete; Standard; Standard Handle

3 x +/- 45 °

Green

latch

Rotary switch

22 mm

Schneider Electric XB4FD25 XB4FD25 Selector switch Front ring (steel) Rotary switch Black 2 x 90 ° 1 pc(s) Piece

Item no:2373811

Complete; flush; standard handle

2 x 90 °

Black

latch

Rotary switch

30.5 mm

Piece

Schneider Electric XB4FD33 XB4FD33 Selector switch Front ring (steel) Rotary switch Black 2 x 45 ° 1 pc(s) Piece

Item no:2373812

Complete; flush; standard handle

2 x 45 °

Black

latch

Rotary switch

30.5 mm

Piece

Schneider Electric XB4FD41 XB4FD41 Selector switch reset function Rotary switch Black 1 x 90 ° 1 pc(s) Piece

Item no:2373813

Complete; flush; standard handle

1 x 90 °

Black

latch/momentary

Rotary switch

30.5 mm

Piece

Schneider Electric XB4FD53 XB4FD53 Selector switch reset function Rotary switch Black 3 x +/- 45 ° 1 pc(s) Piece

Item no:2373814

Complete; flush; standard handle

3 x +/- 45 °

Black

momentary

Rotary switch

30.5 mm

Piece

Schneider Electric XB4FJ21 XB4FJ21 Selector switch Front ring (chrome plated) Toggle Black 1 x 90 ° 1 pc(s) Piece

Item no:2373820

Complete; flush; long handle

1 x 90 °

Black

latch

Toggle

30.5 mm

Piece

Schneider Electric XB4FJ33 XB4FJ33 Selector switch Front ring (steel) Toggle Black 3 x +/- 45 ° 1 pc(s) Single

Item no:2373821

Complete; flush; long handle

3 x +/- 45 °

Black

latch

Toggle

30.5 mm

Single

Schneider Electric XB4FJ53 XB4FJ53 Selector switch reset function Toggle Black 3 x +/- 45 ° 1 pc(s) Piece

Item no:2373822

Complete; flush; long handle

3 x +/- 45 °

Black

momentary

Toggle

30.5 mm

Piece

Schneider Electric XB4FK123B5 XB4FK123B5 Selector switch illuminable Rotary switch Green 1 x 90 ° 1 pc(s) Piece

Item no:2373823

Complete; flush; standard handle

1 x 90 °

Green

latch

Rotary switch

30.5 mm

Piece

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373810 Schneider Electric XB4FD21 XB4FD21 Selector switch Rotary switch Black 2 x 90 ° 1 pc(s) Piece
