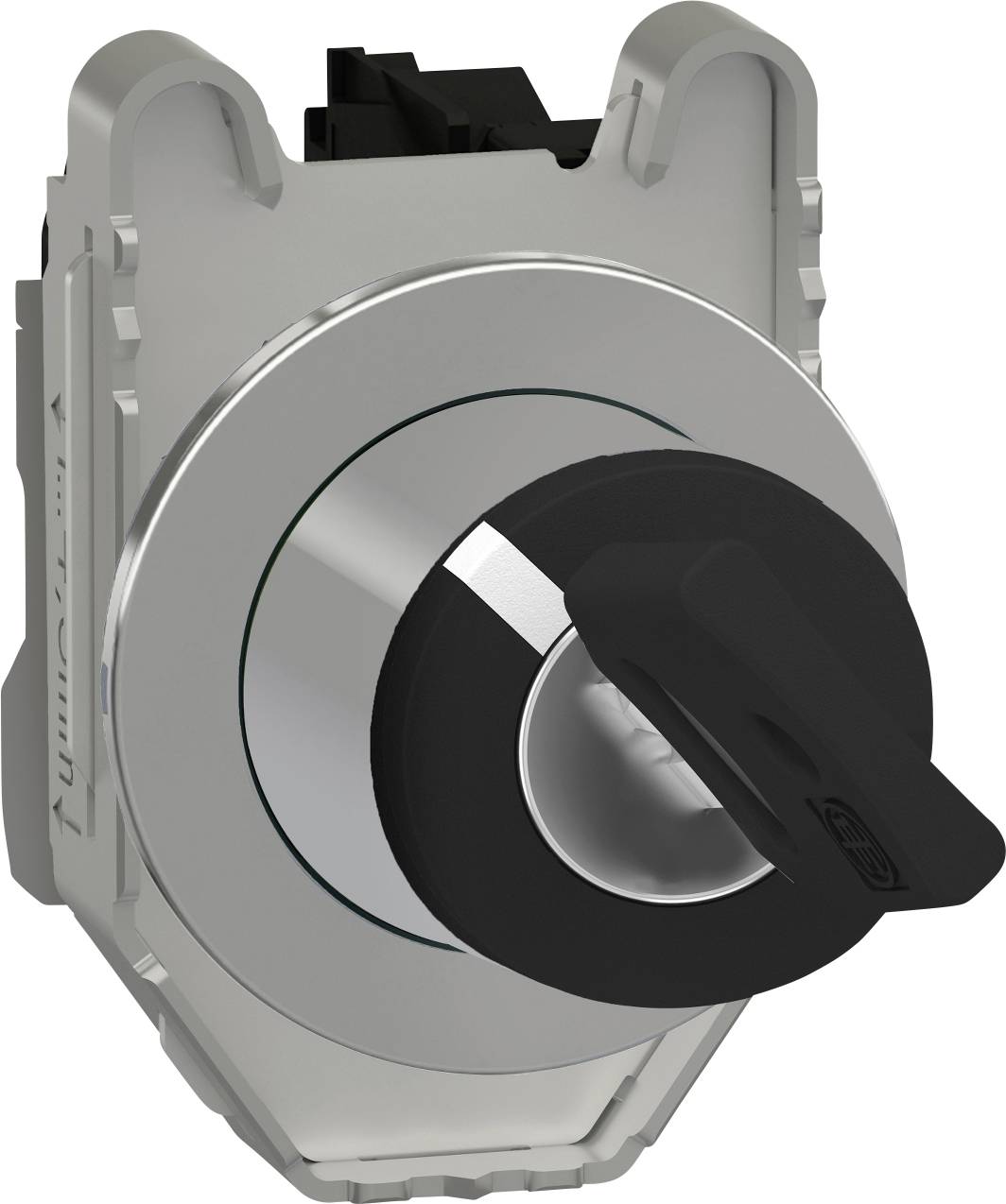

Schneider Electric XB4FG21 XB4FG21 Key switch Front ring (steel) Key Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Technical specifications
- Material: Chrome-coated metal; Zamak
- Tightening torque 0.8…1.2 Nm
- Operating position information: 2 positions 90°
- Key-off position: Left
- Operation of the contacts: Graduated switching
- Contact material: Silver alloy (AG/Ni)
- Packaging type
Piece
- Product type
Key switch
- Switch/button features
Front ring (steel)
- Lighting type
None
- Operation type
Key
- Factory colour
Black
- Case colour
Chrome
- Connection
Screw terminal
- Shape
Round
- Functions
latch
- Contact type
1 maker
- Durability
1 000 000 cycles
- Recess diameter
30.5 mm
- Type
Complete; Flush
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Switching voltage
600 V
- Switching current (max.)
6 A
- Width
36.6 mm
- Height
47 mm
- Content
1 pc(s)
- Dim
(W x H x D) 36.6 x 47 x 100 mm
- Weight
117 g
- Depth
100 mm
- Type
XB4FG21
- UKCA
yes
