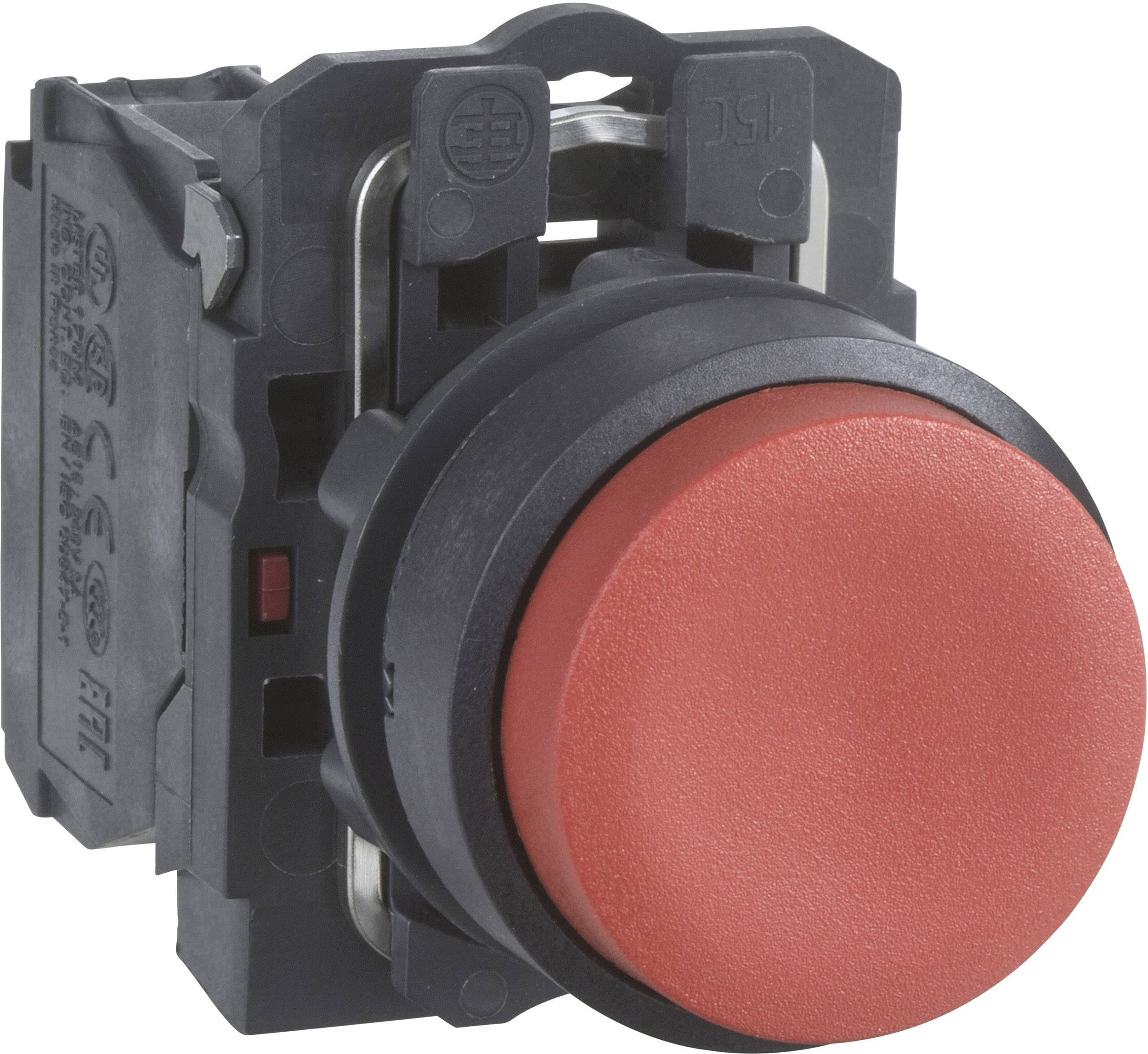

Schneider Electric XB5AL42 XB5AL42 Pushbutton 600 V 6 A momentary (Ø x H) 22 mm x 42 mm IP66, IP67, IP69, IP69K 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Contact type
1 breaker
Switching voltage
600 V
Switching current (max.)
6 A
Technical specifications
- Product type
Pushbutton
- Casing/button colour
Black
Red
- Functions
momentary
- Lighting type
None
- Contact type
1 breaker
- Material
Plastic
- Switching voltage
600 V
- Switching current (max.)
6 A
- Length
57 mm
- Width
30 mm
- Height
42 mm
- (Ø)
22 mm
- Recess diameter
22 mm
- Front panel cut-out
22 mm
IP66
IP67
IP69
IP69K
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 42 mm
- Switching current (inductive)
6 A
- Type
XB5AL42
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1982282 Schneider Electric XB5AL42 XB5AL42 Pushbutton 600 V 6 A momentary (Ø x H) 22 mm x 42 mm IP66, IP67, IP69, IP69K 1 pc(s)
Description
Control and signaling devices made of plastic, diameter 22mm. The control and signaling devices designed for industry combine simple installation with great flexibility and numerous design designs.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
