Buy Schneider Electric XB5AS84W3B41 Kill switch illuminable 1 maker, 2 breakers IP69K 1 pc(s)

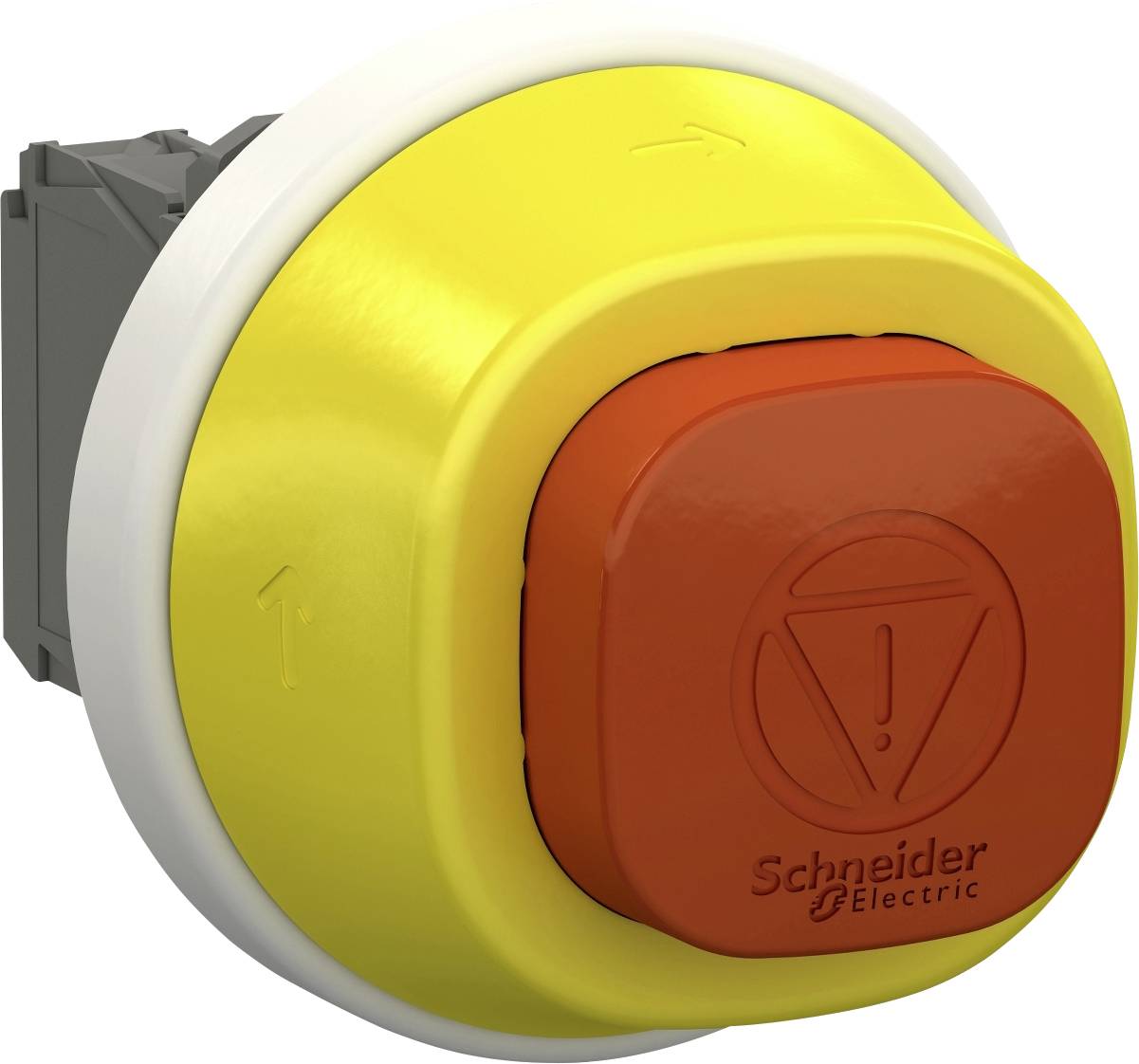

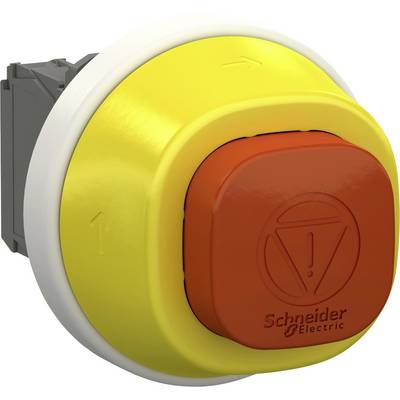

Close-up of a yellow emergency stop button with a red push face labeled Schneider Electric.

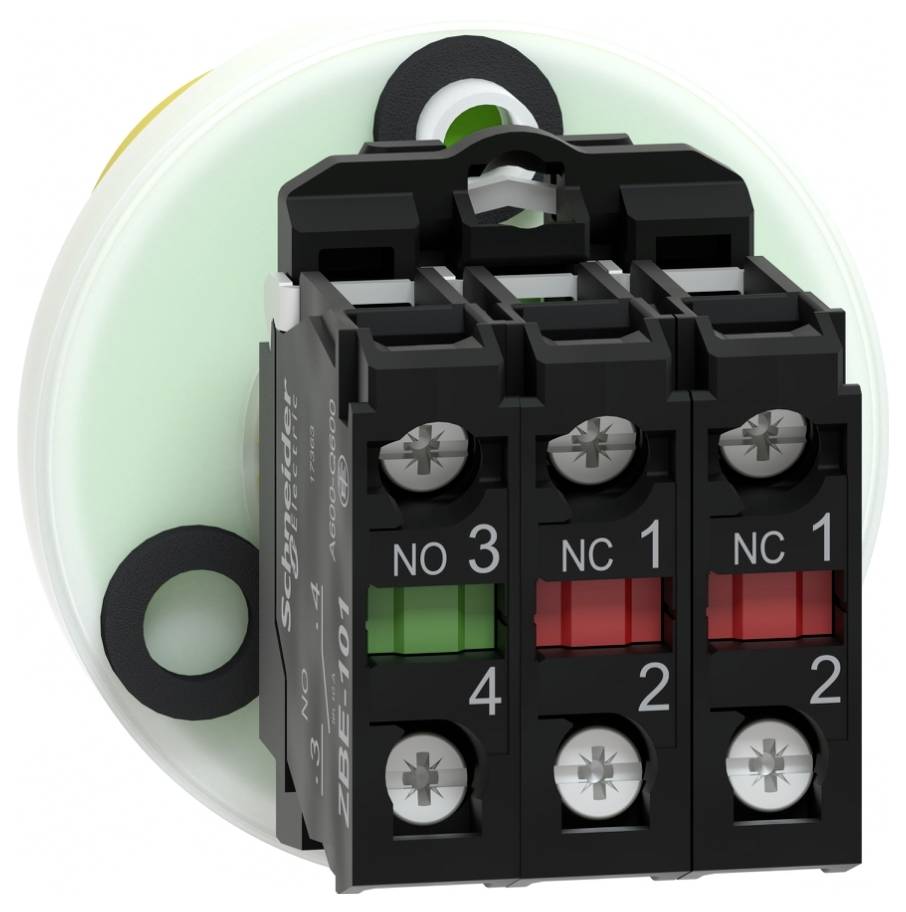

Close-up of an electrical contact block with three screw terminals labeled NO 3, NC 1, and NC 1, mounted on a round base.<br>

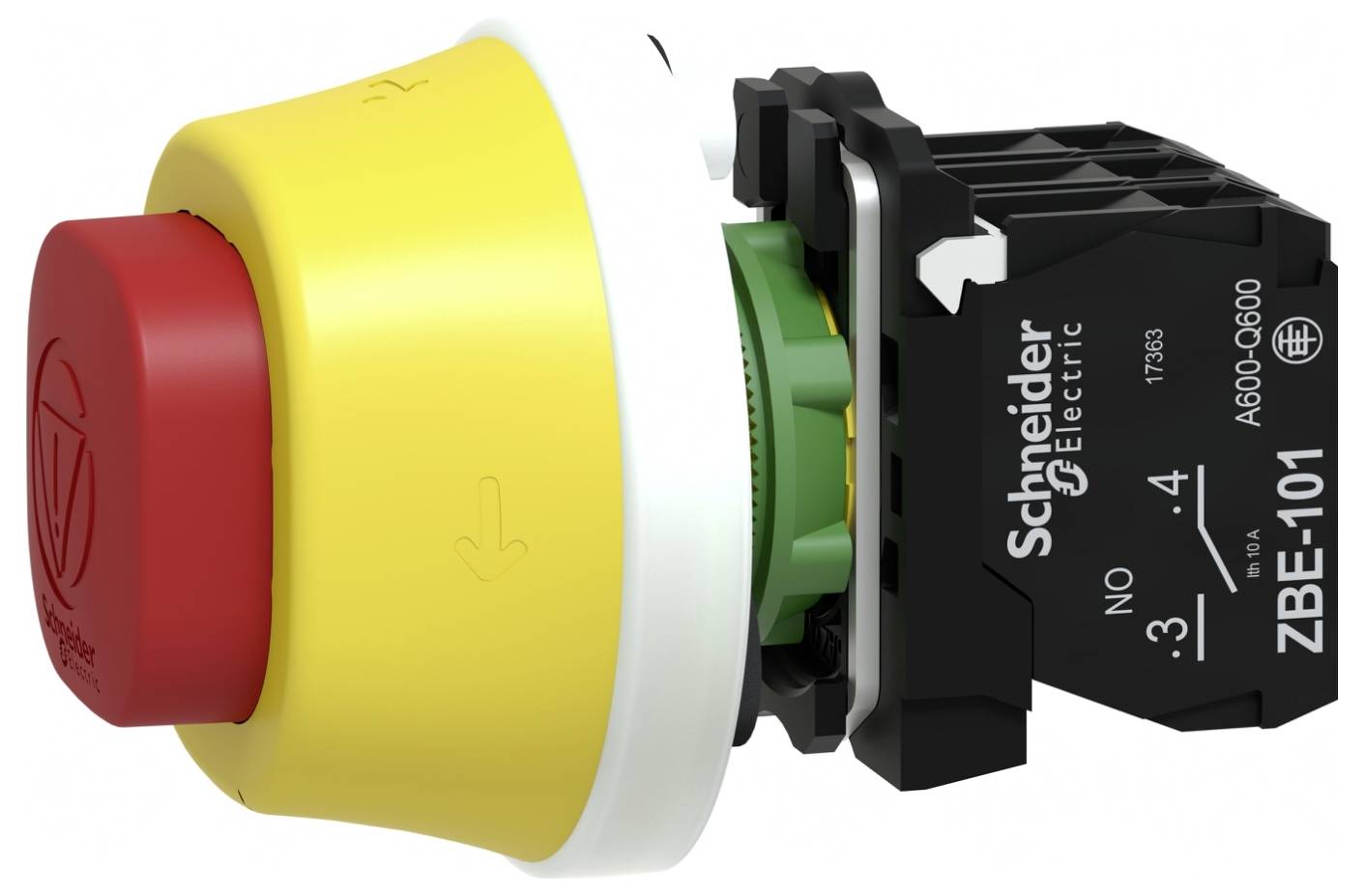

Yellow emergency stop button with red mushroom cap and black Schneider Electric contact block, side view.

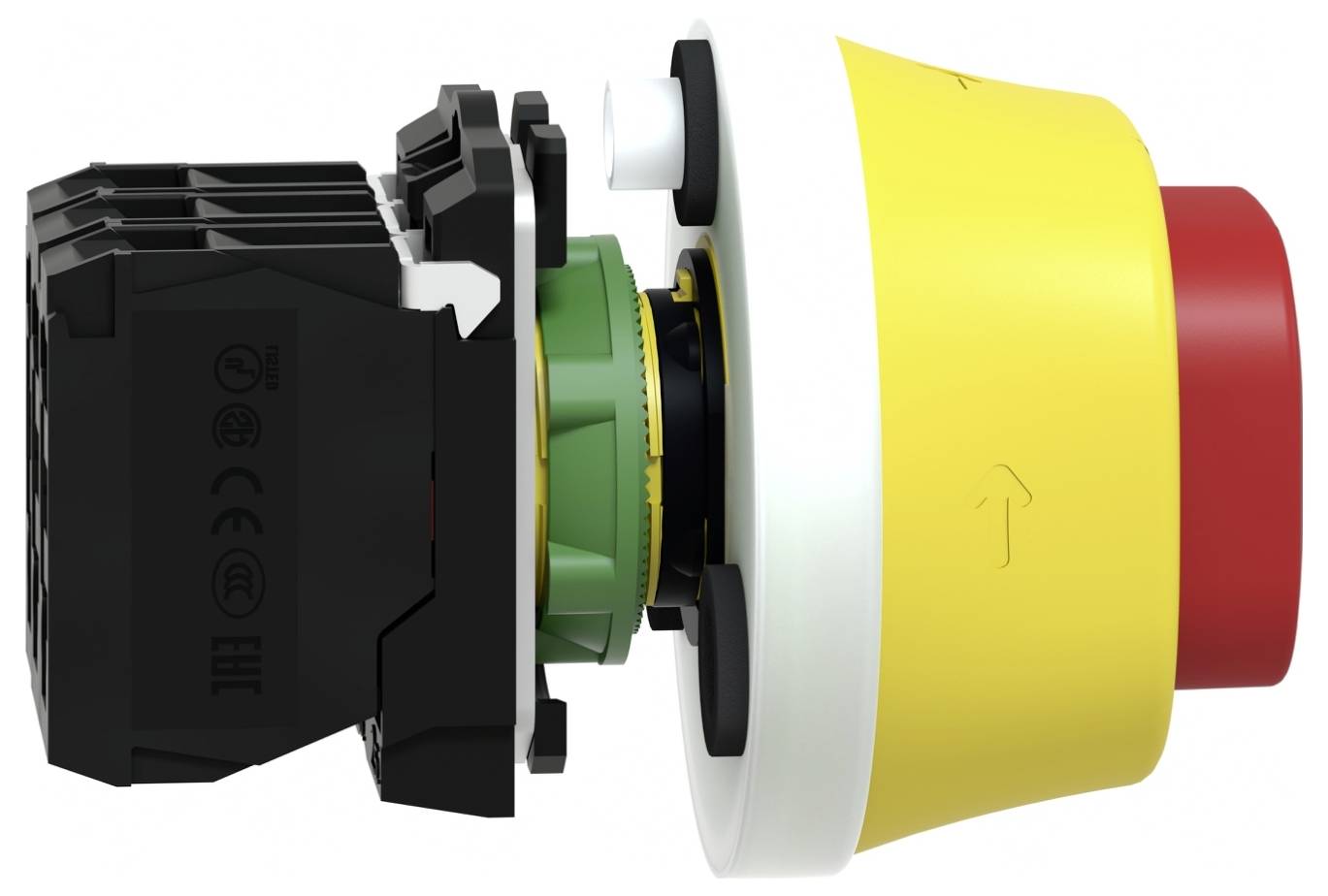

Exploded view of an emergency stop push button switch with black contact block, white/yellow housing, and red actuator.

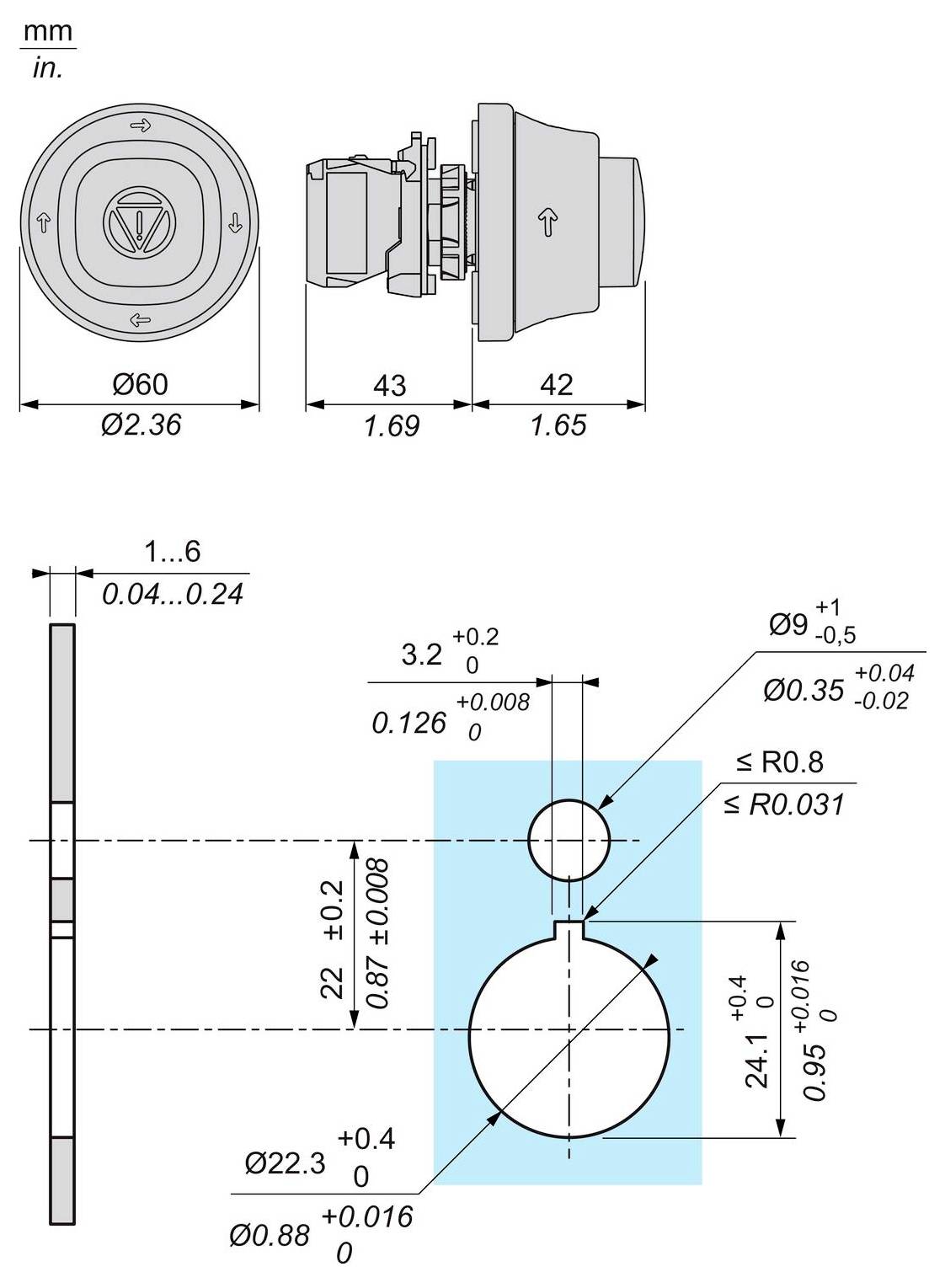

Technical drawing of a round pushbutton switch, showing front, side, and dimensioned hole-cutout specifications in millimeters and inches.

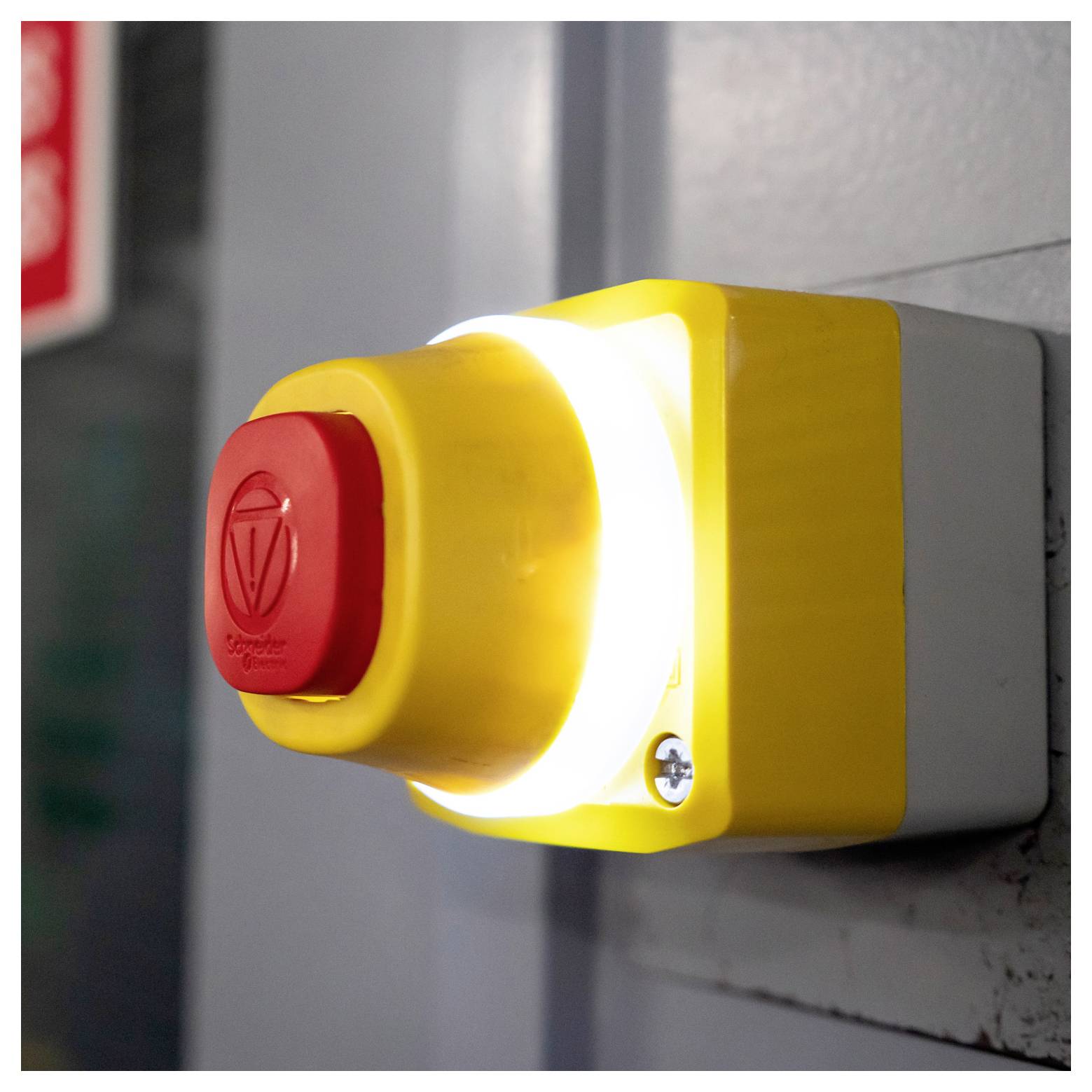

Illuminated yellow emergency stop button with a red push cap mounted on a gray wall panel.

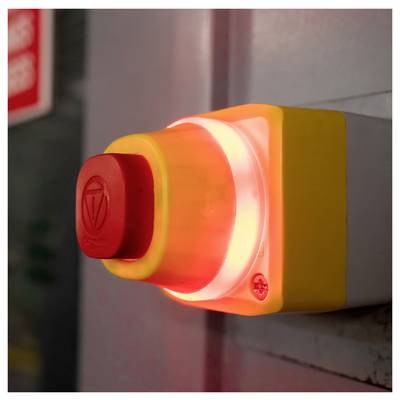

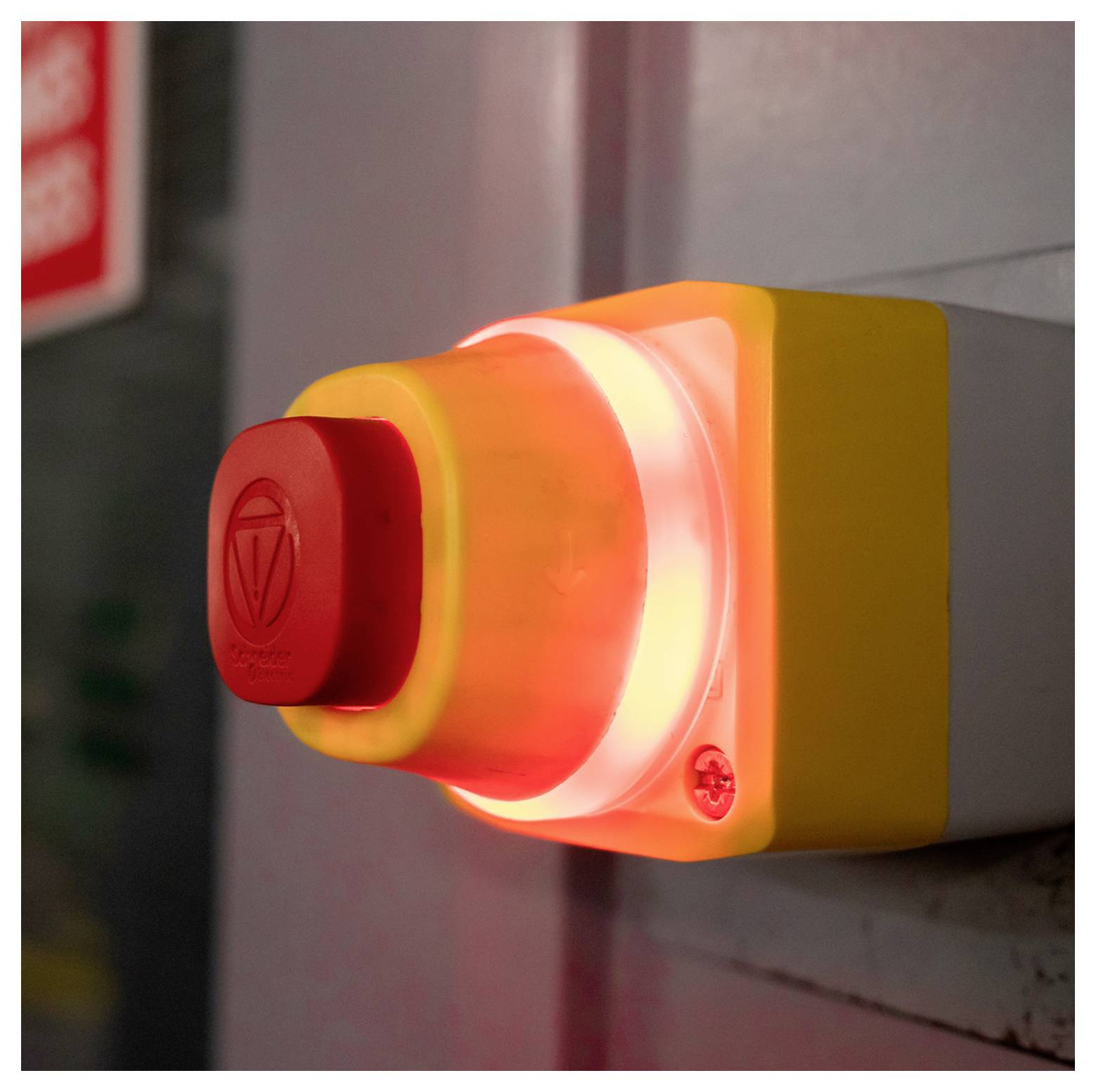

Glowing red emergency stop button mounted on a wall panel<br>

1/7

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Kill switch

Switch/button features: illuminable

Unlocking mechanism: Turn

Print motif: EMERGENCY STOP

Lighting type: LED

Bulb type: LED (monochrome)

Colour: White
Red

Contact material: AgNi

Contact type: 1 maker
2 breakers

Connection: Screw terminal

Recess diameter: 22 mm

Weight: 0.1229 kg

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP69K

Type: XB5AS84W3B41

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2972539 Schneider Electric XB5AS84W3B41 Kill switch illuminable 1 maker, 2 breakers IP69K 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2972539 Schneider Electric XB5AS84W3B41 Kill switch illuminable 1 maker, 2 breakers IP69K 1 pc(s)

Information

Information 2972539 Schneider Electric XB5AS84W3B41 Kill switch illuminable 1 maker, 2 breakers IP69K 1 pc(s)

Description

Harmony XB5 series, lighting emergency stop/emergency stop button in the housing for 24V. The illumination is 2-color, LEDs white/red, color change upon activation. Complete system design, installation dimension 22.5mm. With 1 closer and 2 opener In plastic design. Type of unlocking for the rotary release. Shock resistance IK03. Ambient temperature from -40 to +70 degree C. Protection class up to IP69K, International standards IEC, UL, CSA, EAC, Registration number.
