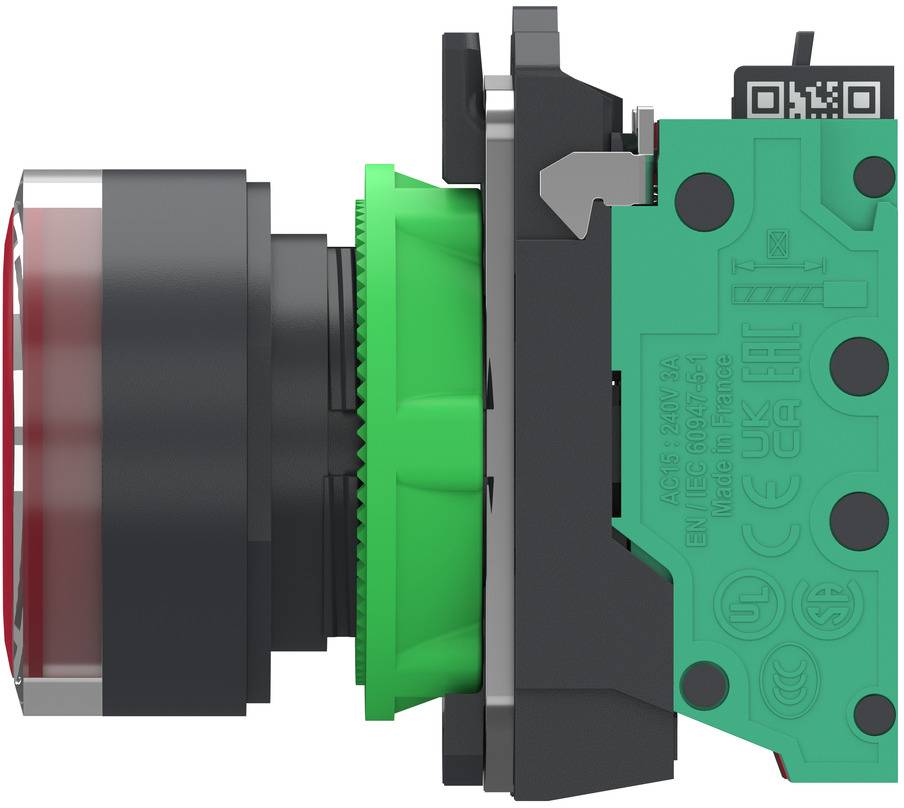

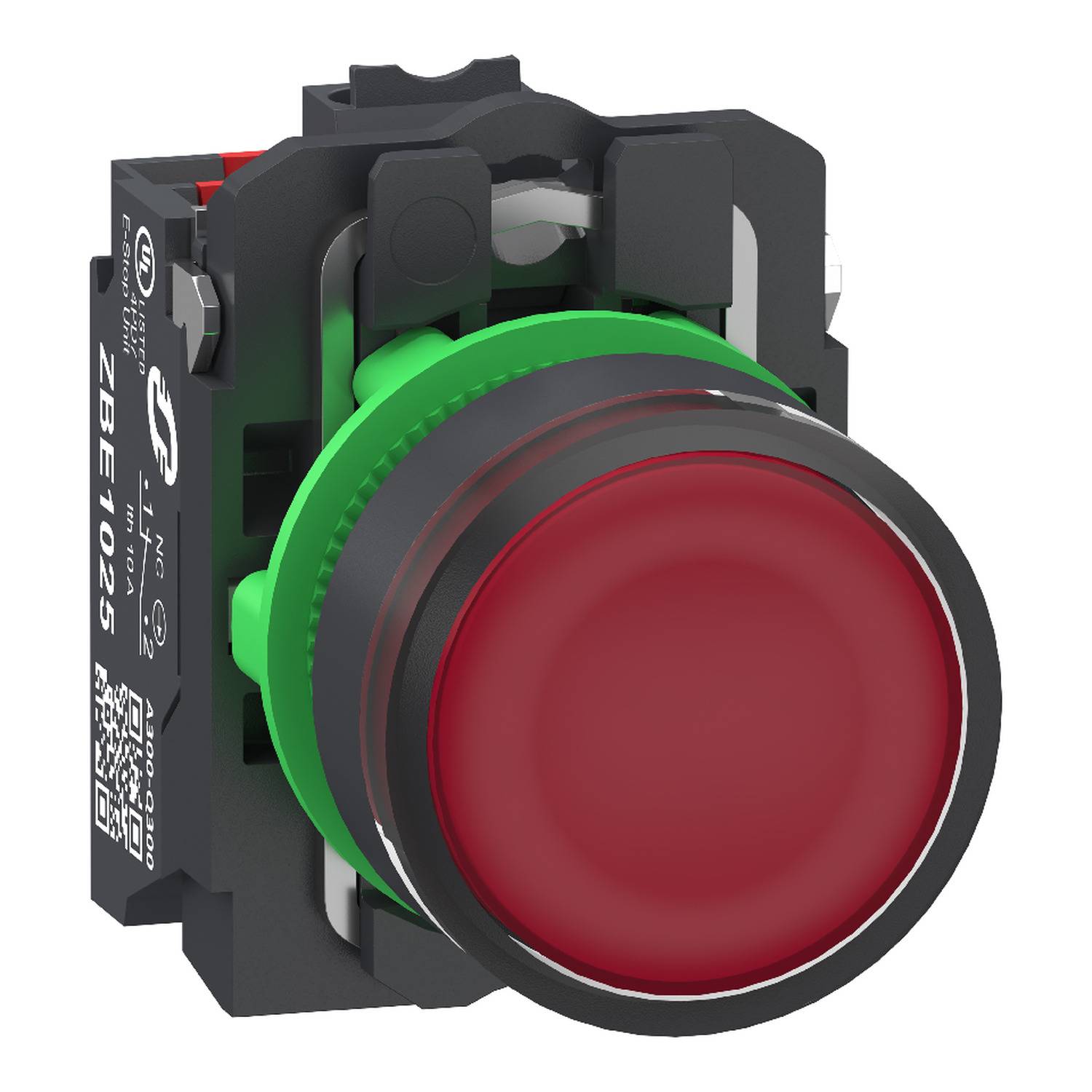

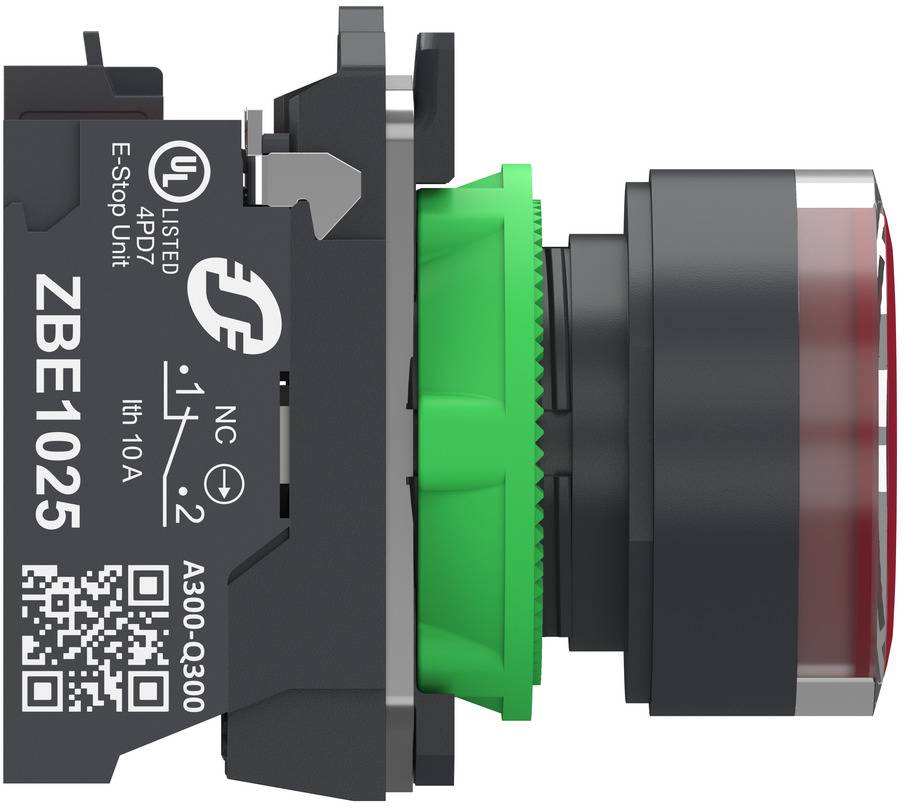

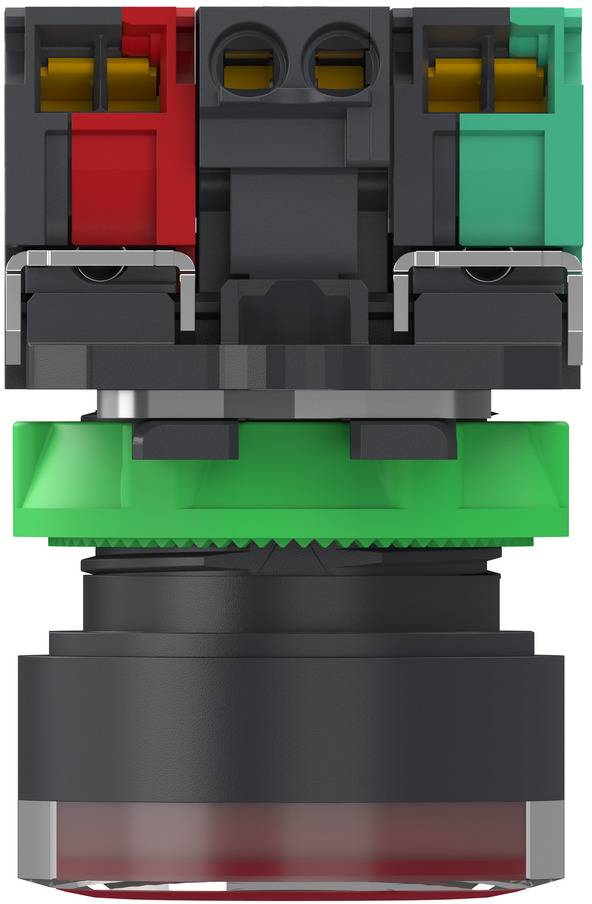

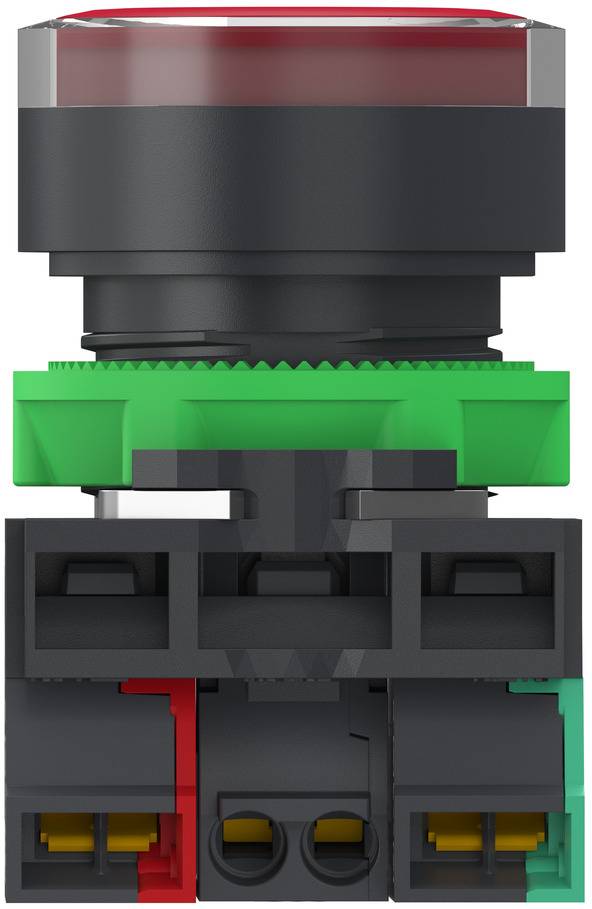

Schneider Electric XB5AW34B55 Light push button, harmony XB5, plastic, 22mm, red, unlabeled, LED, smooth dome, 1S+1Ö, 24
EAN:
Part number:
Item no:
Product type
Illuminated push buttons
Content
1 pc(s)
IP rating
IP66
UKCA
not relevant
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
14-day return policy included
Technical specifications
- Number of command points: 1
- Number of contacts as N/O contacts: 1
- Number of contacts as changer: 0
- Number of contacts as NC contacts: 1
- Design of the electrical connection: Other
- Design of the lens: Round
- Button design: Flat
- Colour of the knob: Red
- Colour front ring: Grey
- Suitable for lighting: Yes
- Hole diameter 22.5 mm
- With front ring: Yes
- Switching function latching: No
- Protection class (NEMA): 4X, 13
- Momentary: Yes
- Transparent: Yes
- Lamp supply voltage 24 V.
- Material of the front ring: Plastic
- Product type
Illuminated push buttons
- Content
1 pc(s)
IP66
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3757287 Schneider Electric XB5AW34B55 Light push button, harmony XB5, plastic, 22mm, red, unlabeled, LED, smooth dome, 1S+1Ö, 24
User & Safety Instructions
User & Safety Instructions 3757287 Schneider Electric XB5AW34B55 Light push button, harmony XB5, plastic, 22mm, red, unlabeled, LED, smooth dome, 1S+1Ö, 24
Description

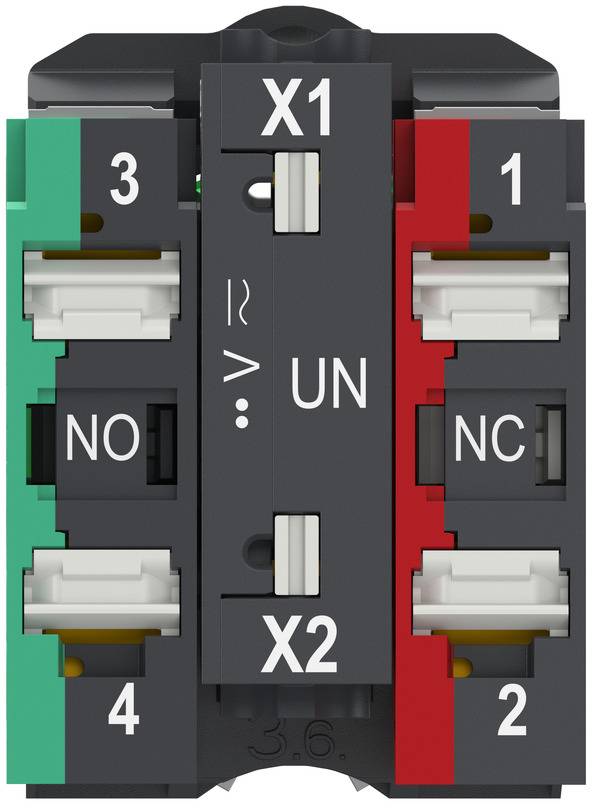

The Harmony XB5 series of plastic offers a range of 22mm complete devices such as push buttons, indicator lights and selector switches right up to the emergency stop switch. For this product, you can get detailed information on material content, environmental impact and recycling management to support your sustainability goals. The modular design of the devices also allows all components to be purchased as individual elements and, optionally, also for a 30mm installation. Due to the quality, flexibility and extreme robustness (protection classes up to IP69K) the devices Ideal are suitable for most applications in industry and in buildings. This red illuminated pushbutton has a universal LED and requires a supply voltage of 24 V AC/DC. The button has 1 NO contacts and 1 NC contacts. Mounted in a 22 mm hole the device is connected by push-in terminals at the rear side of the product. Due to the large number of available product standards and certifications, suitable for the international application
