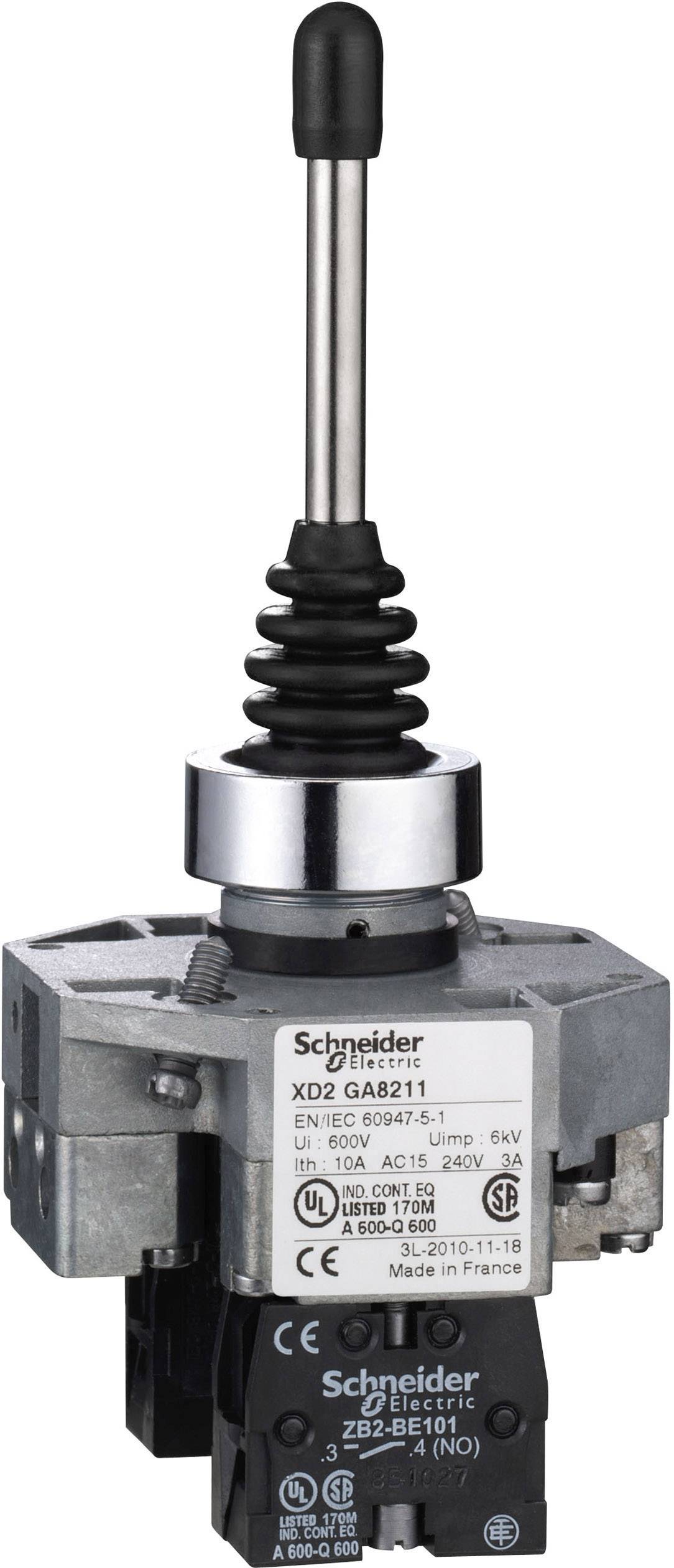

Schneider Electric XD2GA8211 Joystick Screw terminal IP66 (EN 60529) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Joystick
Connection
Screw terminal
Lighting type
None
Switch position
1 NO
Switching current (max.)
3 A
Highlights & Details
CONTROLLERS
- - Ø22
- - 2 directions
- - 1S graduated switching
Technical specifications
- Product type
Joystick
- Lighting type
None
- Connection
Screw terminal
- Switch position
1 NO
- Switching current (max.)
3 A
- Min. temperature
-40 °C
- Length
60 mm
- Height
145 mm
- Recess diameter
22 mm
- Durability
1 000 000 cycles
- Electrical lifespan
1000000 cycles at 230 V AC
1000000 cycles at 120 V DC
IP66 (EN 60529)
- Content
1 pc(s)
- Compatible with (details)
Harmony XB5
- Type
XD2GA8211
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1982111 Schneider Electric XD2GA8211 Joystick Screw terminal IP66 (EN 60529) 1 pc(s)
Description
Controller
This text is machine translated.
This text is machine translated.
Scope of delivery
- Complete joystick control unit
