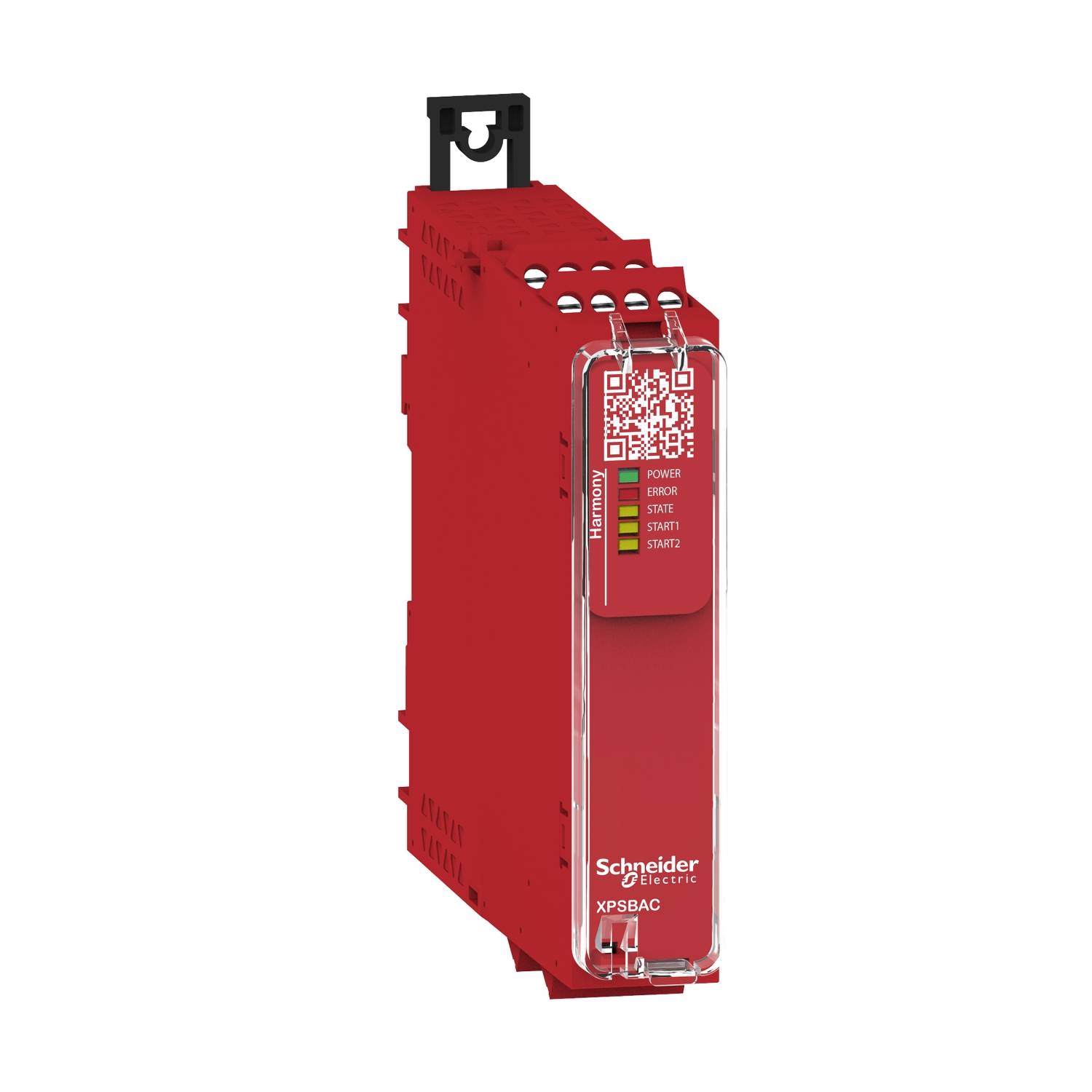

Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
EAN:
Part number:
Item no:
Product type
Safety module
No. of relay outputs
6
Operating voltage
24 V DC/AC
Type
XPSBAC14AP
Dim
(L x W x H) 120 x 22.5 x 100 mm
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Type
XPSBAC14AP
- Product type
Safety module
- No. of relay outputs
6
- Operating voltage
24 V DC/AC
- Dim
(L x W x H) 120 x 22.5 x 100 mm
- Weight
0.2950 kg
- Width
22.5 mm
- Height
100 mm
- Length
120 mm
- Depth
120 mm
IP20
- Connector
Screw terminals
22.5
Basic device
100 mm
120 mm
FALSE
TRUE
TRUE
TRUE
5
0
0
0
0
0
0
0
Screw connection
TRUE
FALSE
4
FALSE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
Level e
0
AC/DC
2-channel
3
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Datasheet 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
User & Safety Instructions
User & Safety Instructions 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Information
Information 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Information 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Information 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Information 2915277 Schneider Electric XPSBAC14AP XPSBAC14AP Safety module No. of relay outputs: 6
Description
The Harmony XPS Basic safety relays provide basic safety functions. The focus is on classic functions and simple operation with a lot of switch contacts. It can be operated directly without setting and has a realizable security function. For this purpose, the mechanical NC contacts of emergency stop/stop buttons, position switches or cable pull switches are integrated into the supply circuit of the safety relay. Thus, the safety function can be implemented in one or two-channel (redundant) versions. For the start function, the automatic, manual or monitored start is available at separate inputs. This safety switching relay has 4 safe relay normally-open contacts and 2 relay normally-closed contacts. The supply voltage is 24 VAC/DC and the connections are made via removable screw terminals. Application up to the safety level PL e in category 4 or SIL3 can be implemented. The assembly is done by snapping onto a DIN rail or by screwing on mounting plates. A clearly numbered locking band is provided to protect the settings under the transparent cover. Multiple approvals enable international use. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
