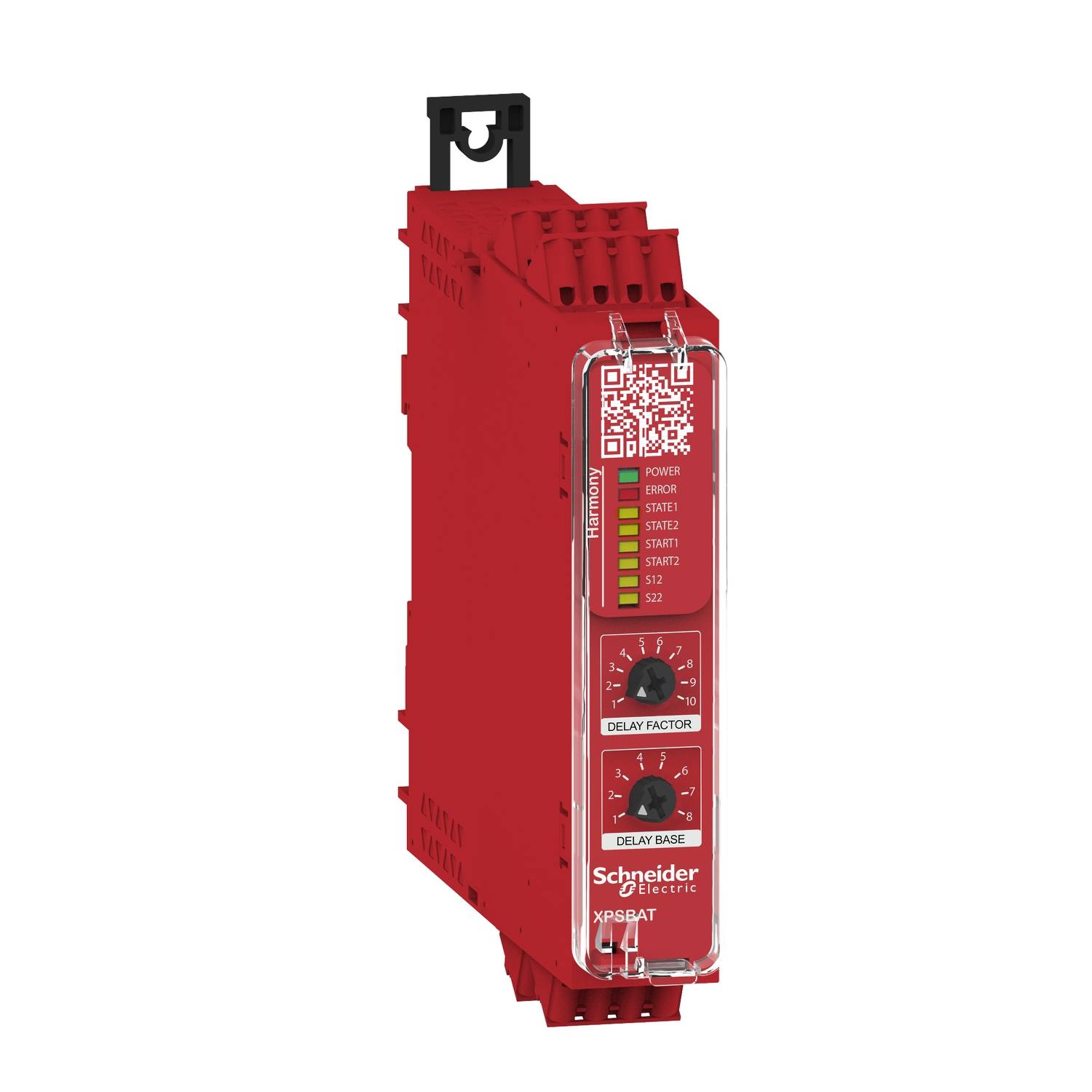

Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
EAN:
Part number:
Item no:
Product type
Safety module
No. of relay outputs
3
Operating voltage
24 V DC/AC
Type
XPSBAT12A1AC
Dim
(L x W x H) 120 x 22.5 x 100 mm
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Technical specifications
- Type
XPSBAT12A1AC
- Product type
Safety module
- No. of relay outputs
3
- Operating voltage
24 V DC/AC
- Dim
(L x W x H) 120 x 22.5 x 100 mm
- Weight
0.3050 kg
- Width
22.5 mm
- Height
100 mm
- Length
120 mm
- Depth
120 mm
IP20
- Connector
Push-in terminal
22.5
Basic device
100 mm
120 mm
FALSE
TRUE
TRUE
TRUE
2
1
0
0
0
0
1
0
Spring clamp connection
TRUE
FALSE
4
FALSE
TRUE
FALSE
TRUE
TRUE
TRUE
FALSE
FALSE
Level e
0 + 1
AC/DC
2-channel
3
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
Datasheet 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
User & Safety Instructions
User & Safety Instructions 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
Information
Information 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
Information 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
Information 2915280 Schneider Electric XPSBAT12A1AC XPSBAT12A1AC Safety module No. of relay outputs: 3
Description
The Harmony XPS Basic safety relays provide basic safety functions. This device is used to understand classic safety applications with a switch-off delay and to set the start function. The switch-off delay time and one of the two safety functions can be set on the front rotary switches. At the inputs mechanical NC contacts of emergency-off/stop buttons, position, magnet, pull-cord switches, as well as light curtains or RFID safety switches with OSSD outputs can be connected. A safety function can be operated via the two inputs in two-channel (redundant) version. For the start function, the automatic, manual or monitored start is available at separate inputs. This safety switching device has 2 secure instantaneous relay contact as output and optionally delayed 1 safe normally open contact and 1 semi-conductor alarm output. The delayed-off time function (e.g. stop category 1 or 2, SS1 or SS2) can be set in steps from 0.1 second to 15 minutes. The supply voltage is 24 VAC/DC and the connections are made via removable spring clips. Application up to the safety level PL e in category 4 or SIL3 can be implemented. The assembly is done by snapping onto a DIN rail or by screwing on mounting plates. A clearly numbered locking band is provided to protect the settings under the transparent cover. Multiple approvals enable international use. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
