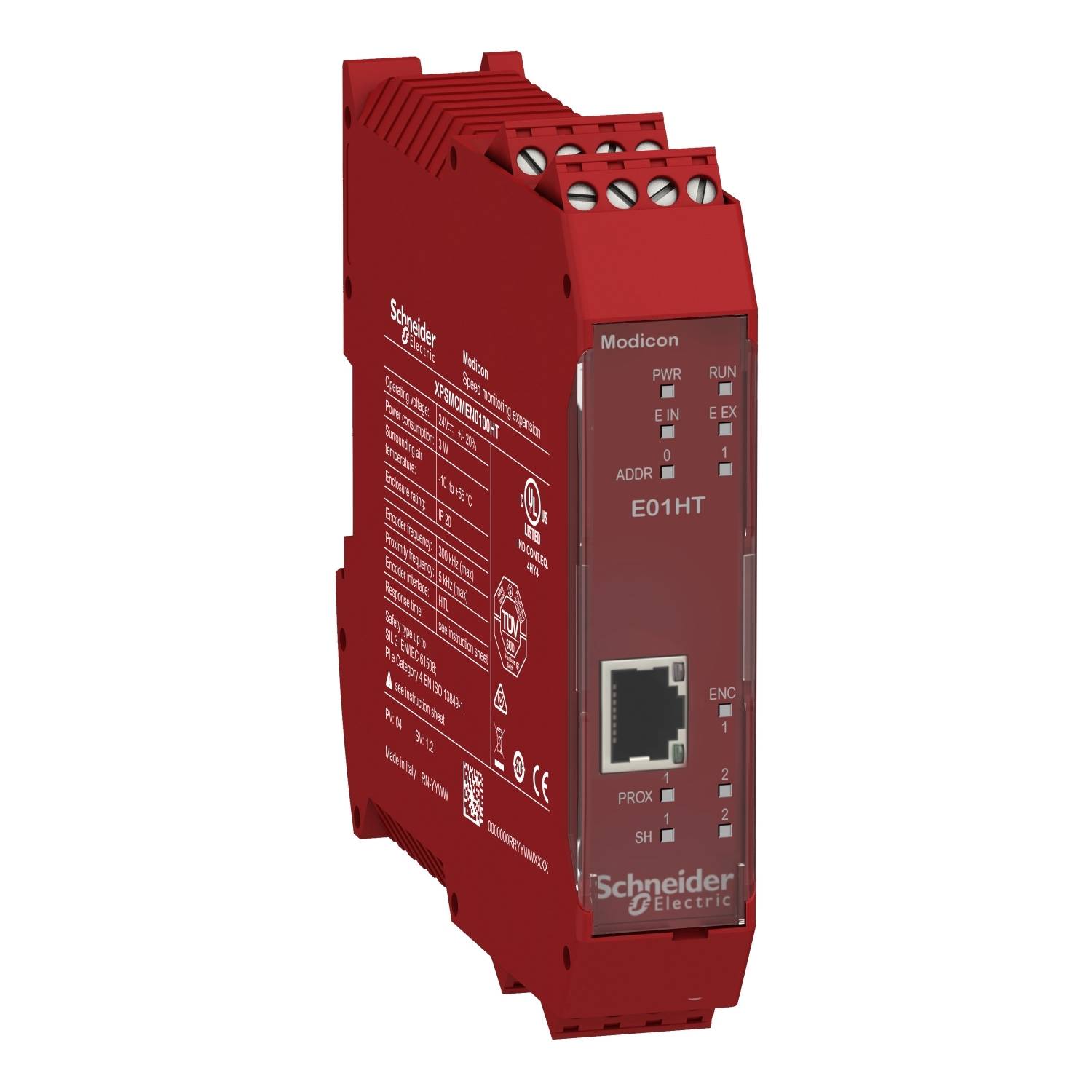

Schneider Electric XPSMCMEN0100HT XPSMCMEN0100HT Expansion
EAN:
Part number:
Item no:
Product type
Expansion
Type
XPSMCMEN0100HT
Probe inputs
1 Encoder mit HTL-Schnittstelle über die RJ45-Buchse oder 2 Sensoren über die Klemmen
Width
22.5
Model
Expansion device
Datasheet (PDF)
Number
Total (€ 491.60 / piece)
€ 491.60
plus VAT.
14-day return policy included
Technical specifications
- Type
XPSMCMEN0100HT
- Product type
Expansion
- Probe inputs
1 Encoder mit HTL-Schnittstelle über die RJ45-Buchse oder 2 Sensoren über die Klemmen
22.5
Expansion device
99 mm
114.5 mm
TRUE
TRUE
TRUE
TRUE
0
0
2
2
0
0
2
2
Screw connection
TRUE
TRUE
None
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
Level e
0 + 1
DC
Other
3
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915169 Schneider Electric XPSMCMEN0100HT XPSMCMEN0100HT Expansion
Datasheet 2915169 Schneider Electric XPSMCMEN0100HT XPSMCMEN0100HT Expansion
User & Safety Instructions
User & Safety Instructions 2915169 Schneider Electric XPSMCMEN0100HT XPSMCMEN0100HT Expansion
Information
Information 2915169 Schneider Electric XPSMCMEN0100HT XPSMCMEN0100HT Expansion
Description
With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module enables the evaluation of safe speeds and rotational directions in order to implement functions such as standstill, SLS or maximum speed. 1 encoders with HTL interface can be connected to the module via the RJ45 socket or 2 sensors via the terminals which record the turning movement in the application. For connection to the internal bus, the required rear-wall bus connector is included in the package. The module has removable screw terminals. This expansion module can be used with all CPU-versions. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
