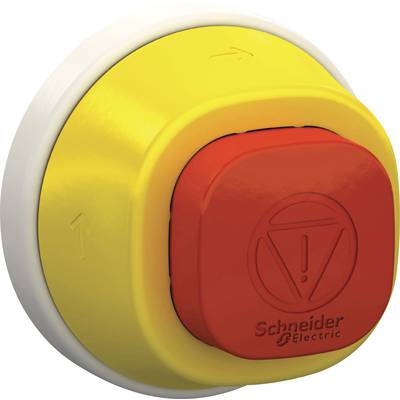

Schneider Electric ZB5AS84W2B Kill button illuminable 24 V IP66, IP67, IP69, IP69K 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.65
3
4% = € 1.29
€ 28.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.65 / piece)
€ 43.69
-32 %
€ 29.65
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Red actuator profile: 32 mm square
- Packaging type
Piece
- Product type
Kill button
- Switch/button features
illuminable
- Unlocking mechanism
Turn
- Print motif
EMERGENCY STOP
- Lighting type
LED
- Bulb type
LED (monochrome)
- Colour
Red
- Contact material
Silver alloy
- Factory colour
Yellow
Red
- Type
Mushroom head: Square 32 mm
- Recess diameter
22.5 mm
- Front panel thickness
6 mm
- Functions
latch
- Weight
55 g
- Durability
300000 cycles
- Length
40 mm
- Width
60 mm
- Height
60 mm
- Switching voltage
24 V
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP66
IP67
IP69
IP69K
- Type
ZB5AS84W2B
- Content
1 pc(s)
- Dim
(L x W x H) 40 x 60 x 60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248298 Schneider Electric ZB5AS84W2B Kill button illuminable 24 V IP66, IP67, IP69, IP69K 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2248298 Schneider Electric ZB5AS84W2B Kill button illuminable 24 V IP66, IP67, IP69, IP69K 1 pc(s) Piece
Conformity certificate
Conformity certificate 2248298 Schneider Electric ZB5AS84W2B Kill button illuminable 24 V IP66, IP67, IP69, IP69K 1 pc(s) Piece
Conformity certificate 2248298 Schneider Electric ZB5AS84W2B Kill button illuminable 24 V IP66, IP67, IP69, IP69K 1 pc(s) Piece
Description
The modular Harmony XB5 range of 22 mm plastic control and signaling units combines simple installation, efficiency, flexibility, modern design and robustness for most industrial applications.
This text is machine translated.
This text is machine translated.
Hints
Release and mechanical interlock
