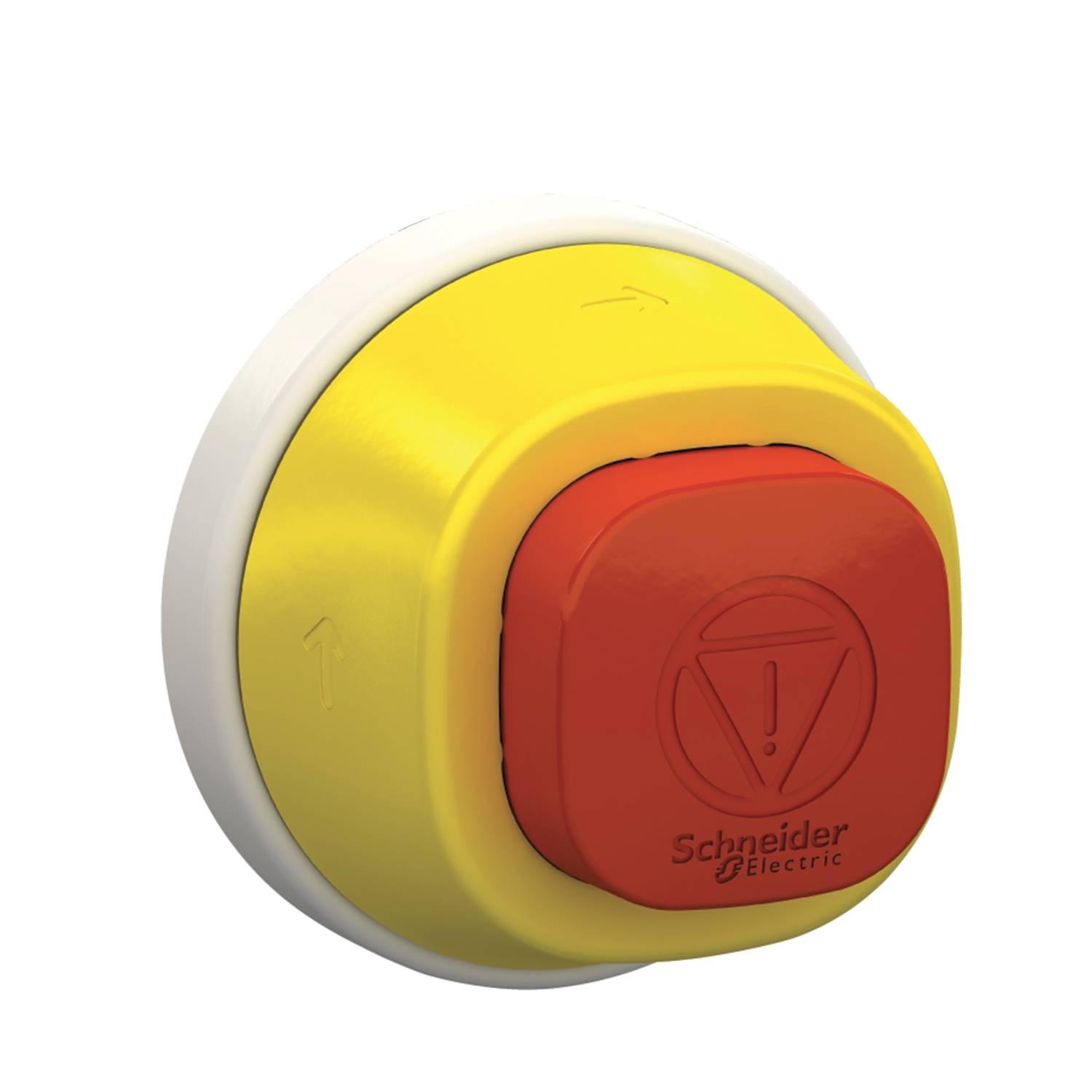

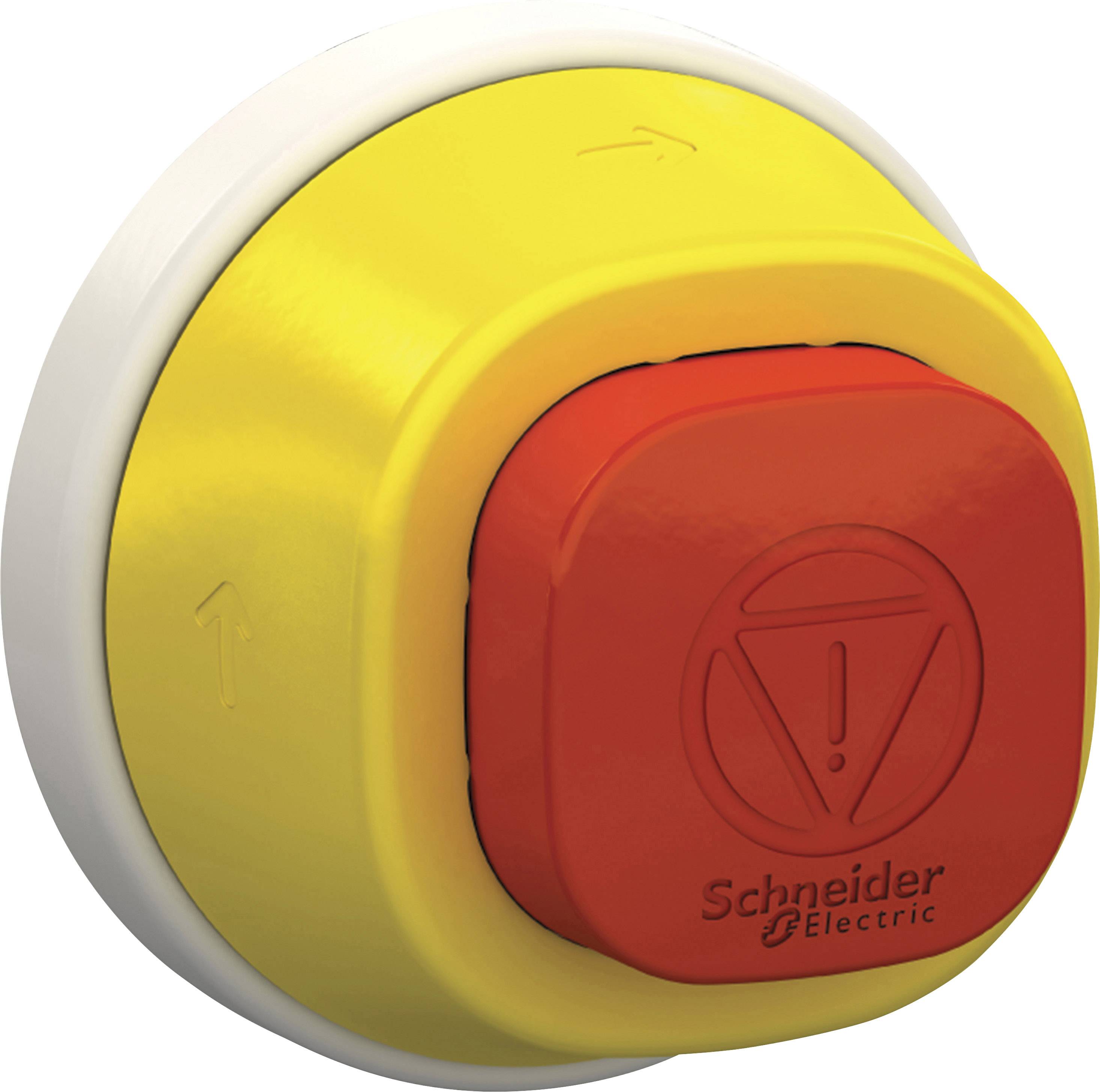

Schneider Electric ZB5AS84W3B Kill button + LED 24 V IP66, IP67, IP69, IP69K 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 33.89 / piece)
€ 54.61
-38 %
€ 33.89
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Front element for illuminated emergency stop/emergency stop
- 2 LEDS
Technical specifications
- Red actuator profile: 32 mm square
- Product type
Kill button
- Switch/button features
+ LED
- Unlocking mechanism
Turn
- Lighting type
LED
LED
- Bulb type
LED (monochrome)
LED (monochrome)
- Colour
White
Red
- Factory colour
Yellow
Red
- Type
Mushroom head: Square 32 mm
- Recess diameter
22.5 mm
- Front panel thickness
6 mm
- Functions
latch
- Weight
55 g
- Durability
300000 cycles
- Length
40 mm
- Width
60 mm
- Height
60 mm
- (Ø)
22 mm
- Switching voltage
24 V
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP66
IP67
IP69
IP69K
- Type
ZB5AS84W3B
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2248300 Schneider Electric ZB5AS84W3B Kill button + LED 24 V IP66, IP67, IP69, IP69K 1 pc(s)
Description
The modular Harmony XB5 range of 22 mm plastic control and signaling units combines simple installation, efficiency, flexibility, modern design and robustness for most industrial applications.
This text is machine translated.
This text is machine translated.
Hints
Release and mechanical interlock
