Schneider Electric ZB5FA1 ZB5FA1 Pushbutton front piece planar 1-button Push 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pushbutton front piece
- Switch/button features
planar
- Operation type
1-button
- Button Ø
30 mm
- Unlocking mechanism
Push
- Functions
momentary
- Recess diameter
30 mm
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
37 mm
- Height
37 mm
- Content
1 pc(s)
- Dim
(W x H x D) 37 x 37 x 30 mm
- Weight
0.028 kg
- Depth
30 mm
- Type
ZB5FA1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1981540 Schneider Electric ZB5FA1 ZB5FA1 Pushbutton front piece planar 1-button Push 1 pc(s)
Description

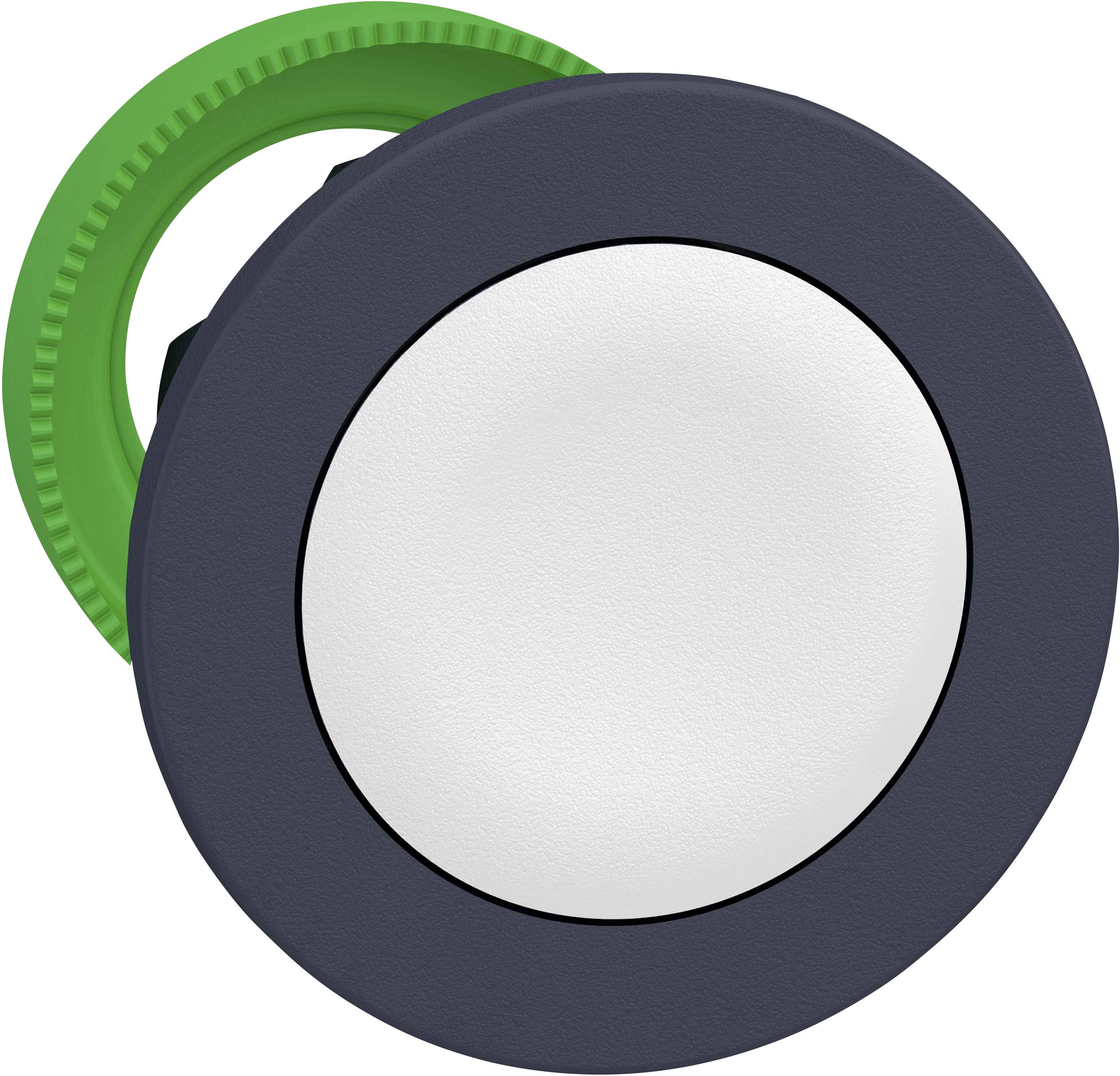

Pushbutton 30mm diameter front element made of plastic for flush, flat mounting. Compatible with the standard mounting flange and auxiliary contacts of the XB5 series. Designed with the highest degree of ruggedness for industry.
