Schneider Electric ZB5FA331C0 ZB5FA331C0 Pushbutton front piece Front ring (PVC) Button 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pushbutton front piece
- Switch/button features
Front ring (PVC)
- Operation type
Button
- Print motif
I
- Functions
momentary
- Recess diameter
30 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
ZB5FA331C0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2920874 Schneider Electric ZB5FA331C0 ZB5FA331C0 Pushbutton front piece Front ring (PVC) Button 1 pc(s)
Datasheet 2920874 Schneider Electric ZB5FA331C0 ZB5FA331C0 Pushbutton front piece Front ring (PVC) Button 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2920874 Schneider Electric ZB5FA331C0 ZB5FA331C0 Pushbutton front piece Front ring (PVC) Button 1 pc(s)
Description

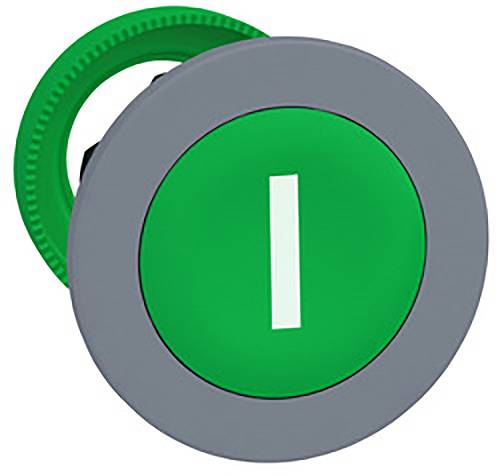

Pushbutton made of plastic as front element and 30mm dimension, Harmony XB5F series for flat installation. The color of the pushbutton is green and labeled with I. Actuating function is without locking. The outer ring is gray. The modular Harmony series with 30mm installation combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
