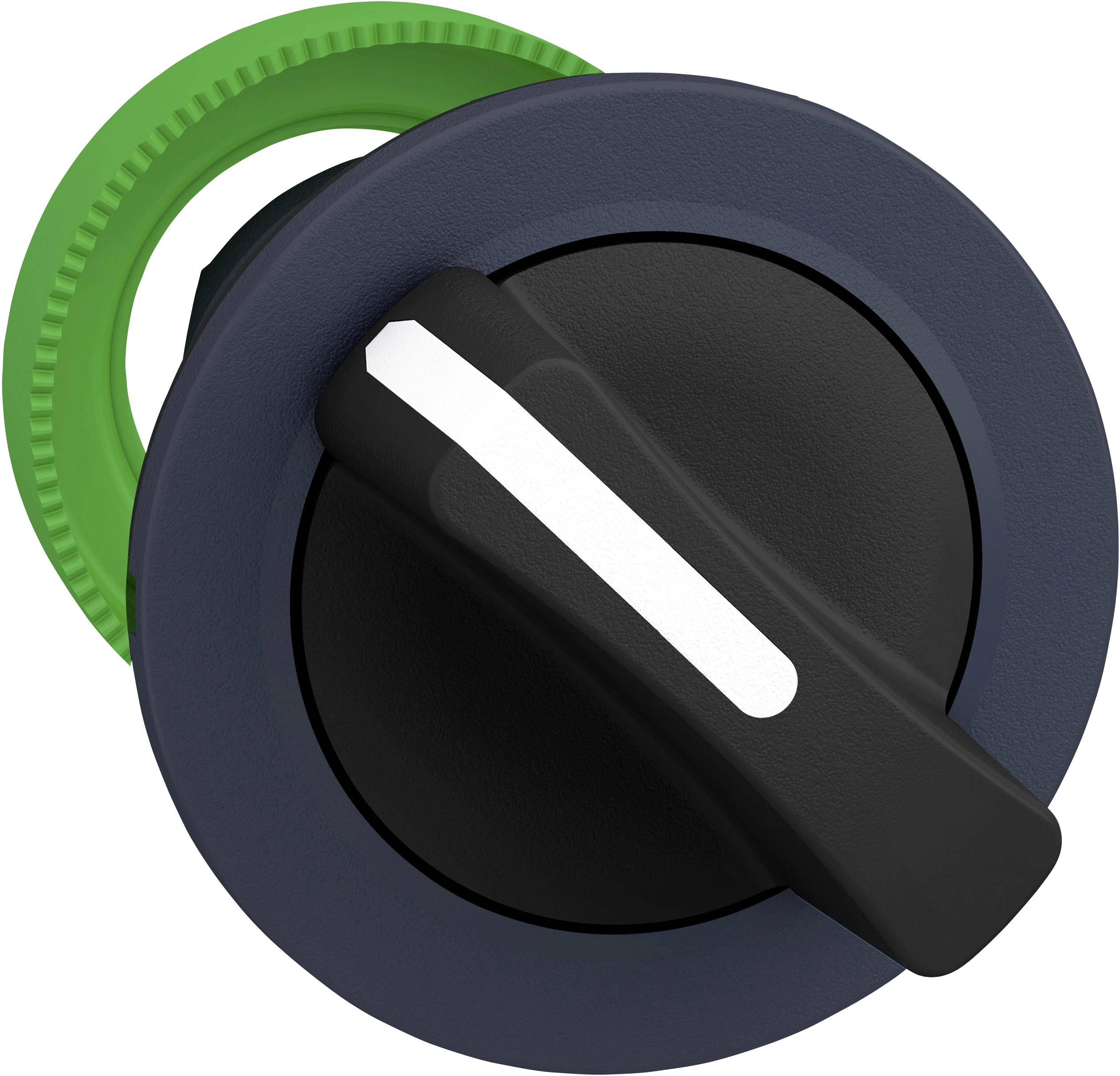

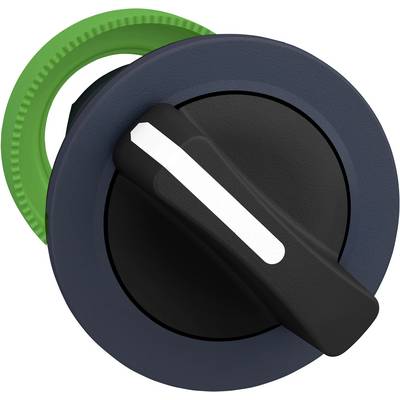

Schneider Electric ZB5FD2 ZB5FD2 Selector head planar Rotary switch Black 2 x 90 ° Turn 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Selector head
- Switch/button features
planar
- Operation type
Rotary switch
- Factory colour
Black
- Case colour
Black
- Unlocking mechanism
Turn
- Functions
latch
- Recess diameter
30 mm
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Switching angle
2 x 90 °
- Width
37 mm
- Height
37 mm
- Content
1 pc(s)
- Dim
(W x H x D) 37 x 37 x 46 mm
- Weight
0.031 kg
- Depth
46 mm
- Type
ZB5FD2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1981613 Schneider Electric ZB5FD2 ZB5FD2 Selector head planar Rotary switch Black 2 x 90 ° Turn 1 pc(s)
Description
Front element selector switch flat mounting 30mm black 2-adjustment blade
