Name: Schneider Electric ZB5FD504 ZB5FD504 Selector head planar Rotary switch 3 x +/- 45 ° Turn 1 pc(s)
Brand: Schneider Electric
SKU: 1981637

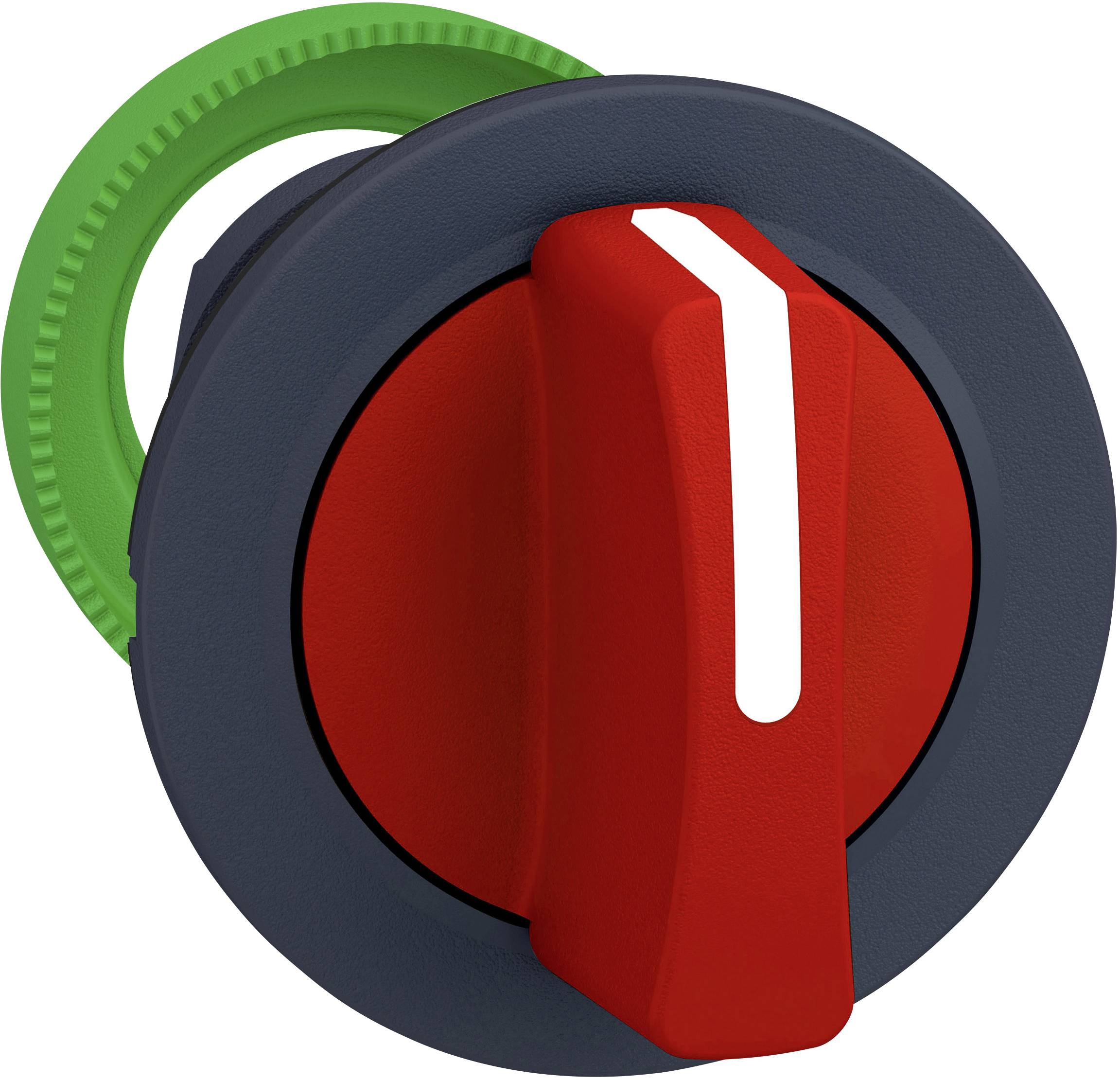

A round, red switch with a handle and white marking strip, surrounded by a green ring.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Selector head

Switch/button features: planar

Operation type: Rotary switch

Button Ø: 30 mm

Unlocking mechanism: Turn

Recess diameter: 30 mm

: IP66
IP67
IP69
IP69K

Min. temperature: -40 °C

Max. temperature: +70 °C

Switching angle: 3 x +/- 45 °

Width: 37 mm

Height: 37 mm

Content: 1 pc(s)

Dim: (W x H x D) 37 x 37 x 46 mm

Weight: 0.031 kg

Depth: 46 mm

Type: ZB5FD504

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Functions

Operation type

Recess diameter

Schneider Electric ZA2BD3 ZA2BD3 Selector head Front ring (PVC) Rotary switch Black Turn 1 pc(s)

Item no:1981578

Dispatches on Mon 19 Oct

166 Piece(s)Conrad Electronic

latch

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Schneider Electric ZB4BD37 ZB4BD37 Selector head lockable Rotary switch 3 x +/- 45 ° Turn 1 pc(s)

Item no:1981580

Unavailable

Conrad Electronic

latch

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BD7 ZB4BD7 Selector head Rotary switch 3 x +/- 45 ° Turn 1 pc(s)

Item no:1981581

Unavailable

Conrad Electronic

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BD8 ZB4BD8 Selector head Front ring (steel) Rotary switch Black 3 x +/- 45 ° Turn 1 pc(s) Piece

Item no:1981582

Unavailable

Conrad Electronic

momentary

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BG0 ZB4BG0 Selector head Key Chrome 3 x +/- 45 ° Key 1 pc(s)

Item no:1981584

Unavailable

Conrad Electronic

latch

Key

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BG08 ZB4BG08 Selector head Key 3 x +/- 45 ° Key 1 pc(s)

Item no:1981587

Unavailable

Conrad Electronic

latch

Key

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BG3 ZB4BG3 Selector head lockable Rotary switch 3 x +/- 45 ° Turn 1 pc(s) Piece

Item no:1981590

Unavailable

Conrad Electronic

latch

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB4BJ7 ZB4BJ7 Selector head lockable Rotary switch 3 x +/- 45 ° Turn 1 pc(s) Piece

Item no:1981593

Unavailable

Conrad Electronic

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB5AD204 ZB5AD204 Selector head Rotary switch 2 x 90 ° Turn 1 pc(s)

Item no:1981600

Unavailable

Conrad Electronic

latch

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Schneider Electric ZB5AD8 ZB5AD8 Selector head Rotary switch 3 x +/- 45 ° Turn 1 pc(s) Piece

Item no:1981601

Unavailable

Conrad Electronic

latch

Rotary switch

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1981637 Schneider Electric ZB5FD504 ZB5FD504 Selector head planar Rotary switch 3 x +/- 45 ° Turn 1 pc(s)

Description

Selector switch 30mm diameter, front element made of plastic for flush, flat mounting. Compatible with the standard mounting flange and auxiliary contacts of the XB5 series. Designed with the highest degree of ruggedness for industry.
