Schneider Electric ZB5FG4C0 ZB5FG4C0 Key switch head Key 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Key switch head
- Operation type
Key
- Case colour
Grey
- Recess diameter
30 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
ZB5FG4C0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2920990 Schneider Electric ZB5FG4C0 ZB5FG4C0 Key switch head Key 1 pc(s)
Datasheet 2920990 Schneider Electric ZB5FG4C0 ZB5FG4C0 Key switch head Key 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2920990 Schneider Electric ZB5FG4C0 ZB5FG4C0 Key switch head Key 1 pc(s)
Description

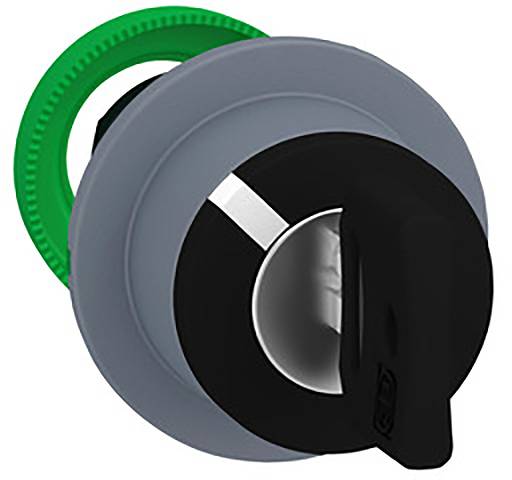

Key switch made of plastic as front element and 30mm installation in the Harmony XB5F series for flat installation. Key No. Ronis 455. The actuator has 2 positions. The outer ring is gray. The modular Harmony series with 30mm installation combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
