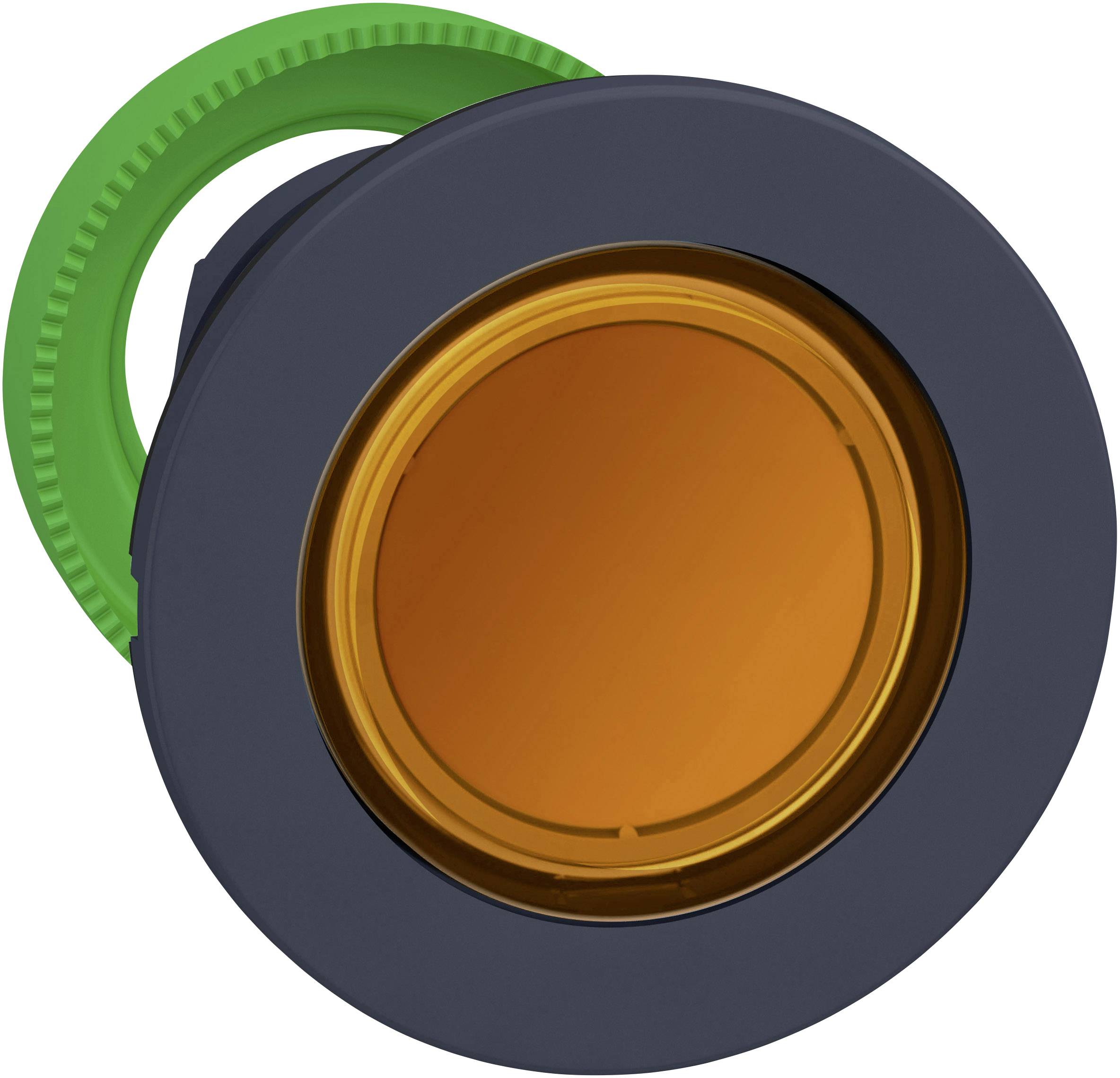

Schneider Electric ZB5FW353 ZB5FW353 Illuminated push button head planar 1-button Push 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Illuminated push button head
- Switch/button features
planar
- Lighting type
incl. lighting
- Operation type
1-button
- Button Ø
30 mm
- Unlocking mechanism
Push
- Functions
momentary
- Recess diameter
30 mm
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
37 mm
- Height
37 mm
- Content
1 pc(s)
- Dim
(W x H x D) 37 x 37 x 30 mm
- Depth
30 mm
- Type
ZB5FW353
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1981568 Schneider Electric ZB5FW353 ZB5FW353 Illuminated push button head planar 1-button Push 1 pc(s)
Description
Pressure switch 30mm diameter, front element made of plastic for flush, flat mounting. Compatible with the standard mounting flange and auxiliary contacts of the XB5 series. Designed with the highest degree of ruggedness for industry.
