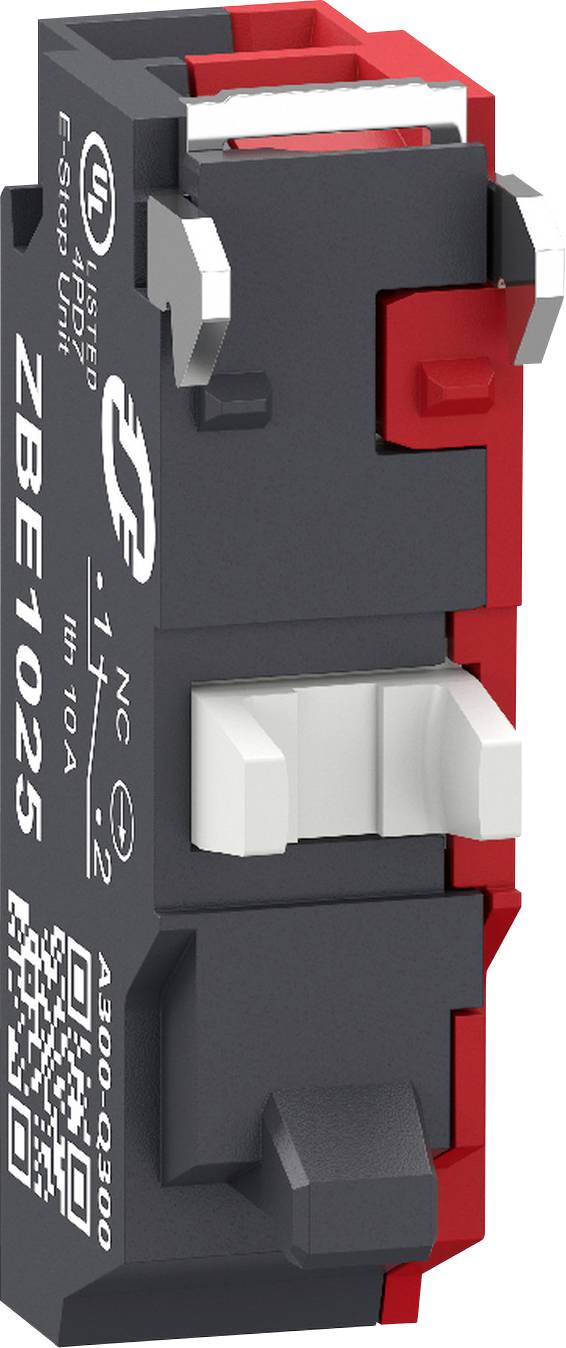

3D-rendered electrical circuit breaker with red and black casing, white toggle, and label showing 'ZBE1025', '1 NC', '10A', and '300V AC'

3D-rendered electrical circuit breaker with red and black casing, white toggle, and label showing 'ZBE1025', '1 NC', '10A', and '300V AC'

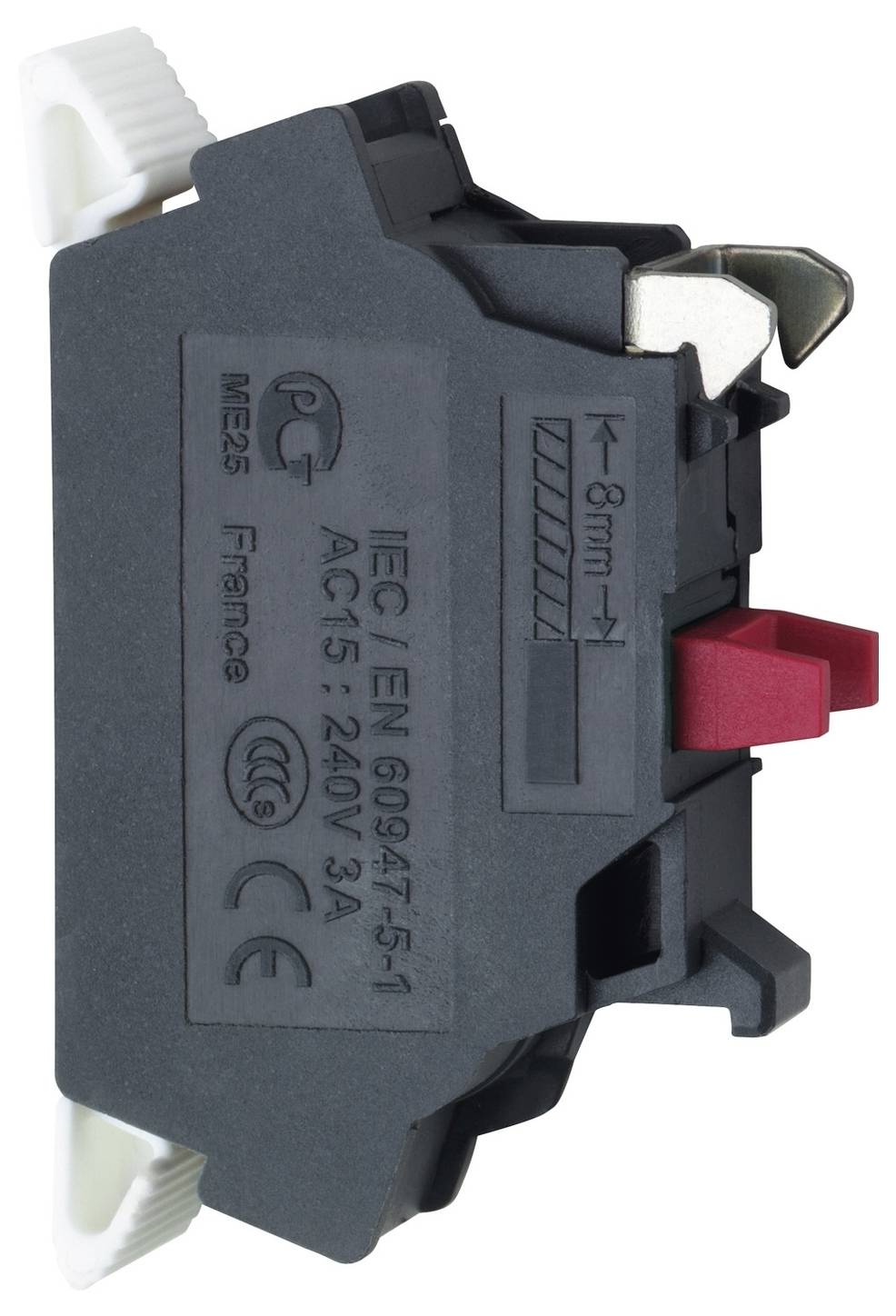

Close-up of a black electrical switch or connector module with red and white terminals and molded label markings.

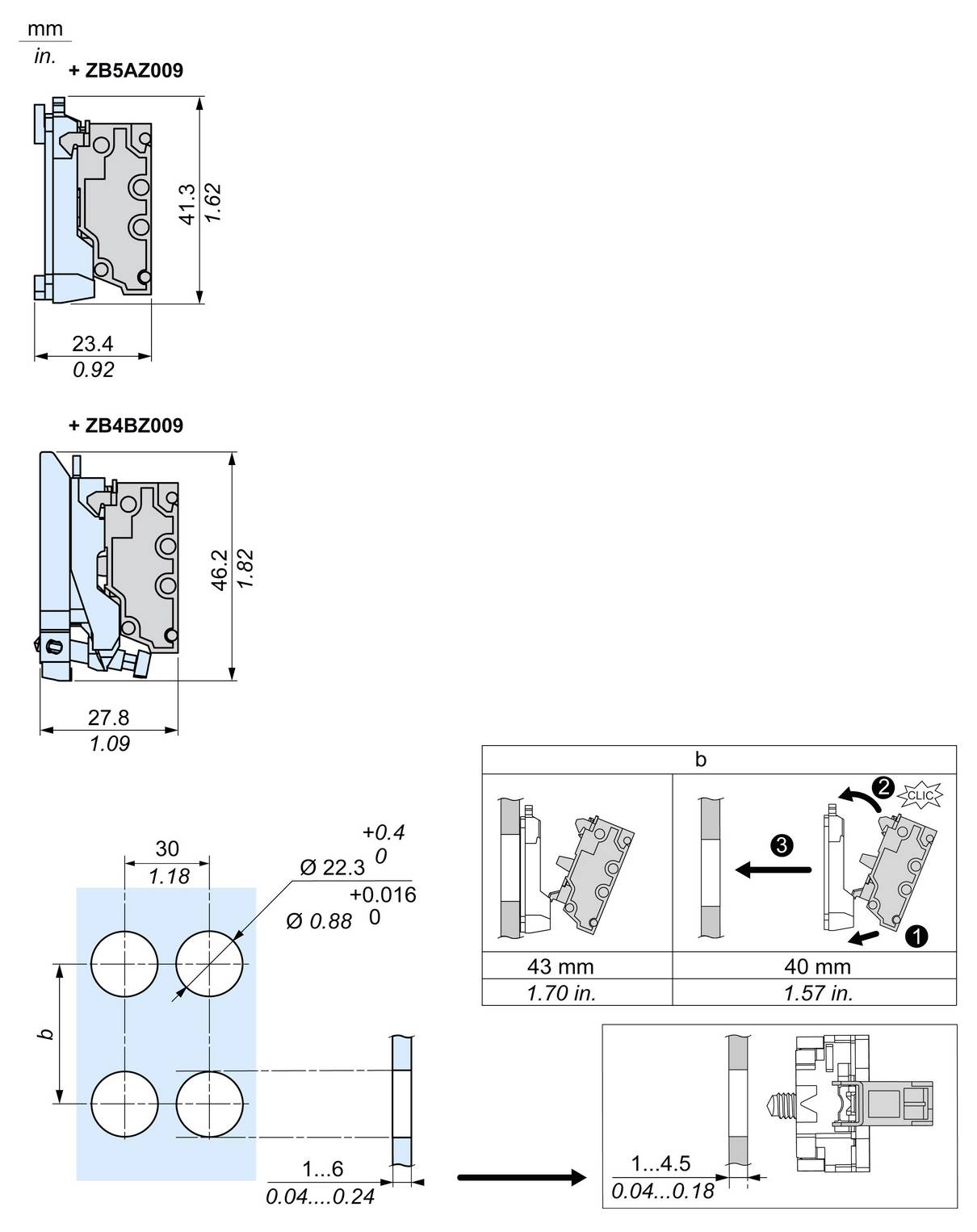

Technical product diagram showing two ZB5 actuator/mounting cross-sections with dimensions, plus hole pattern and installation spacing details in mm and inches.

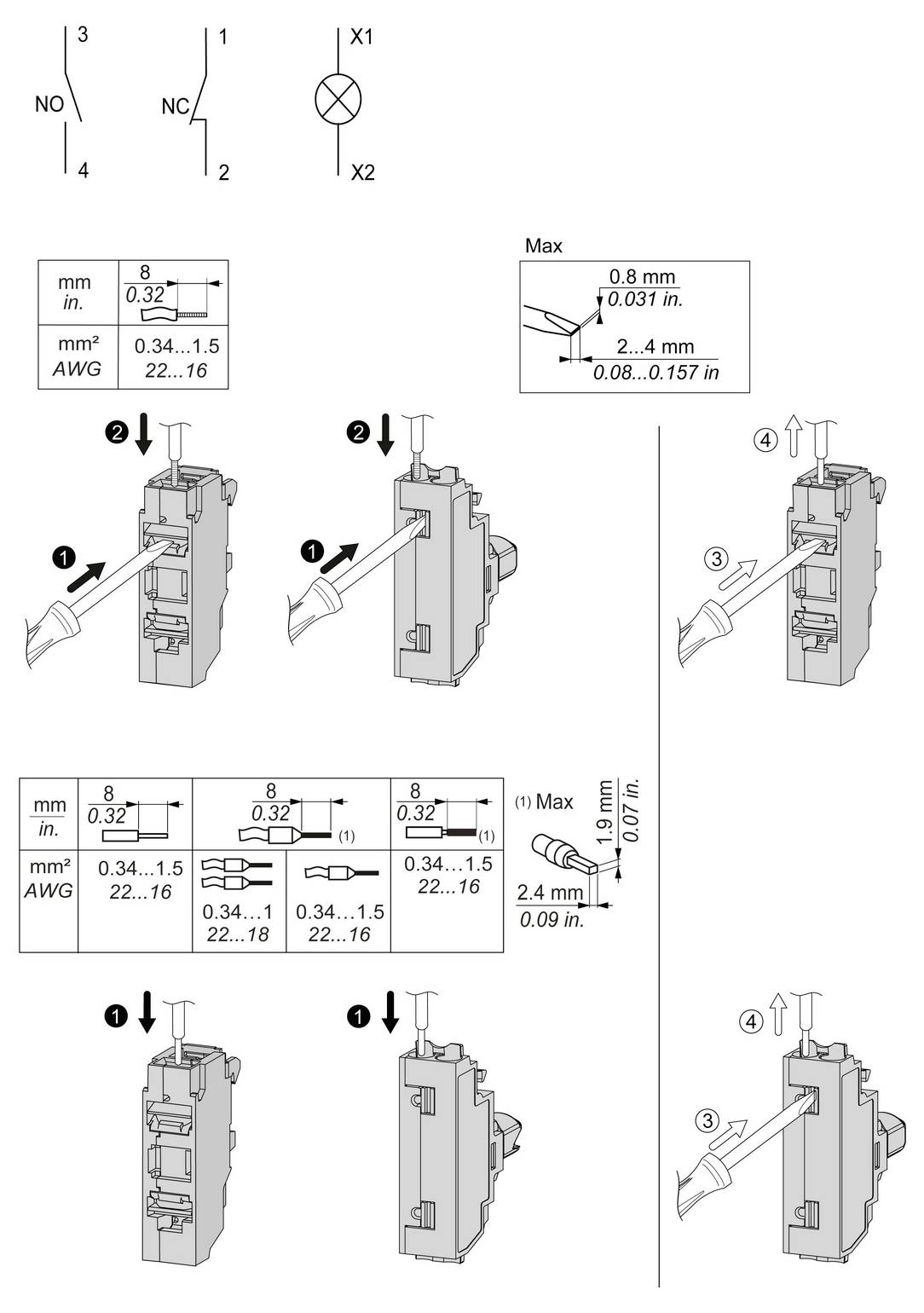

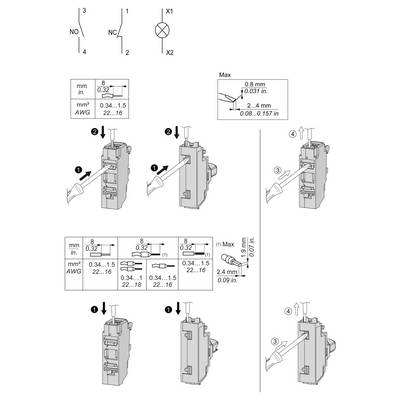

Technical wiring diagram for a modular switch/indicator: shows NO and NC contact terminals, lamp terminals X1/X2, wire strip lengths, and step-by-step wire insertion and removal.

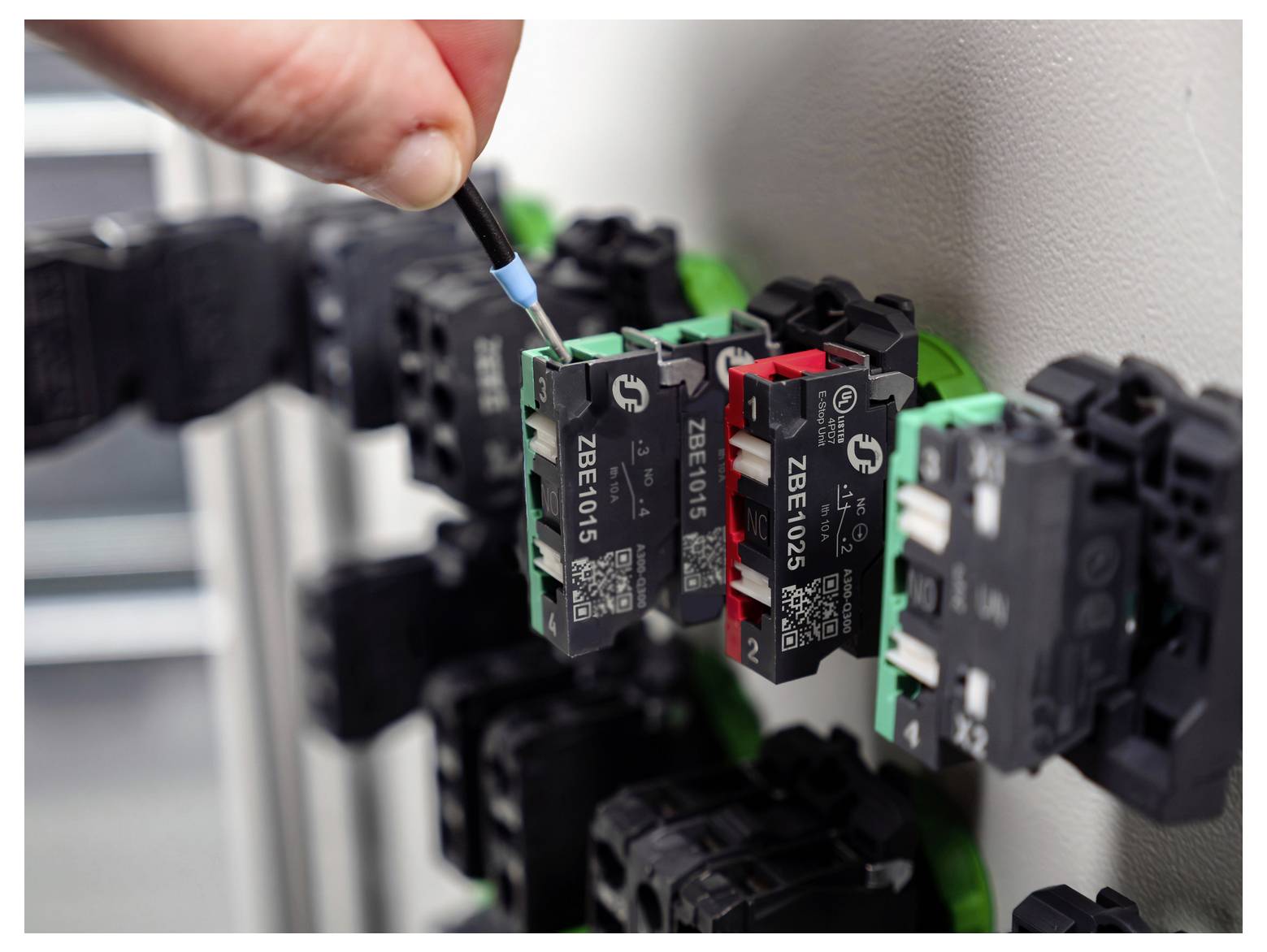

A hand uses a small screwdriver to adjust a row of electrical relay modules mounted on a panel.

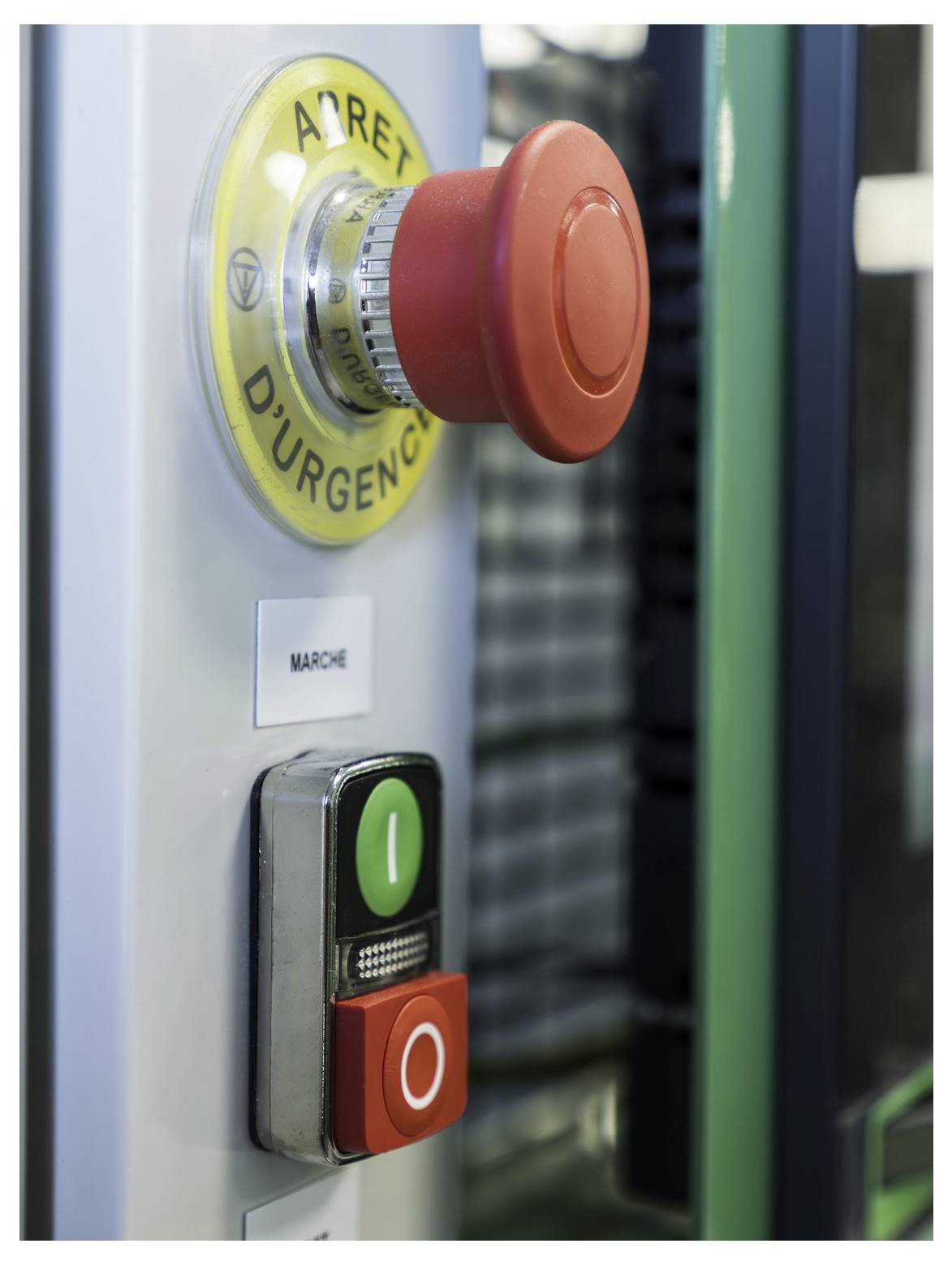

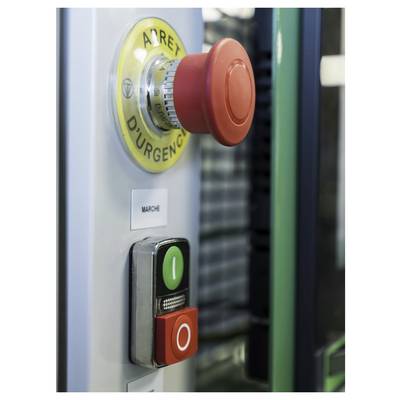

Close-up of an emergency stop button labeled 'ARRET D'URGENCE' above a green 'I' start and red 'O' stop control on a machine panel.<br>

1/6

Schneider Electric

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Mon, 5 Oct

3 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number (Package size 5 pc(s))

Set(s)

Total (€ 8.74 / piece)

€ 43.69

plus VAT.

Only 3 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Contact

Switch/button features: reset function

Connection: Push-in connector

Functions: momentary

Contact type: 1 breaker

Contact material: Silver alloy

Switch position: 1 NC

Switching voltage: 240 V

Switching current (max.): 3 A

: IP20

Min. temperature: -40 °C

Max. temperature: 70 °C

Width: 34.3 mm

Height: 14.8 mm

Mounting type: Front panel fixed

Content: 5 pc(s)

Dim: (W x H x D) 34.3 x 14.8 x 9.8 mm

Depth: 9.8 mm

Switching current (inductive): 3 A

Type: ZBE1025
