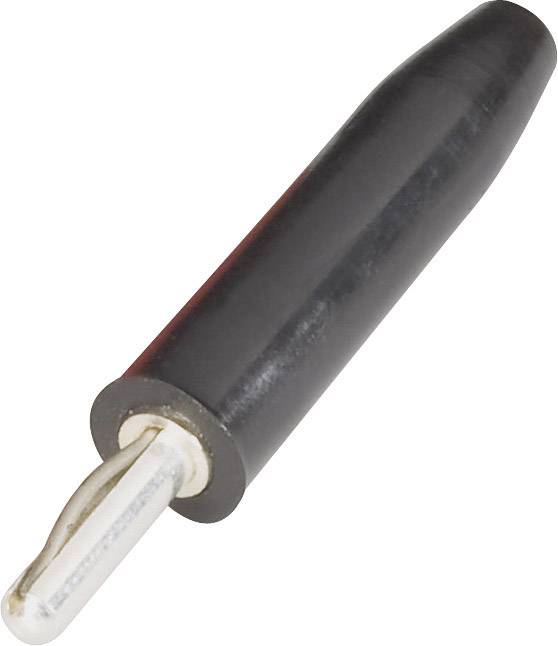

Schnepp F 2000 Straight blade plug Plug, straight Pin diameter: 2 mm Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade plug
Connector type
Plug, straight
Pin Ø
2 mm
Connection
Soldering
Nominal current
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
Highlights & Details
Schnepp F 2000 Straight blade plug Plug, straight Pin diameter: 2 mm Black 1 pc(s)
- 2 mm
Our service for you
Technical specifications
- Product type
Straight blade plug
- Connector type
Plug, straight
- Pin Ø
2 mm
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Cross section (flexible) (max.)
0.5 mm²
- Connection
Soldering
- Factory colour
Black
- Insulation type
Partially insulated
- Manufacturer part #
F 2000 sw
- Type
F 2000
- Type
Connector
- Content
1 pc(s)
- Insulation material
PE
- Contact material
Brass silver plated
- RoHS-compliant
Yes
- Temperature range
-10 - +50 °C
- Material (details)
Brass, silver-plated
- Nominal voltage (details)
60 VDC / 30 VAC
- Nominal current (details)
5 A
- Connection
Soldering
- Cable diameter
0.5 mm²
Documents & Downloads
Datasheet
Datasheet 731682 Schnepp F 2000 Straight blade plug Plug, straight Pin diameter: 2 mm Black 1 pc(s)
