Buy Schuch 167 15LG2 VARIO LED wet room diffusor LED (monochrome) 43 W White Grey

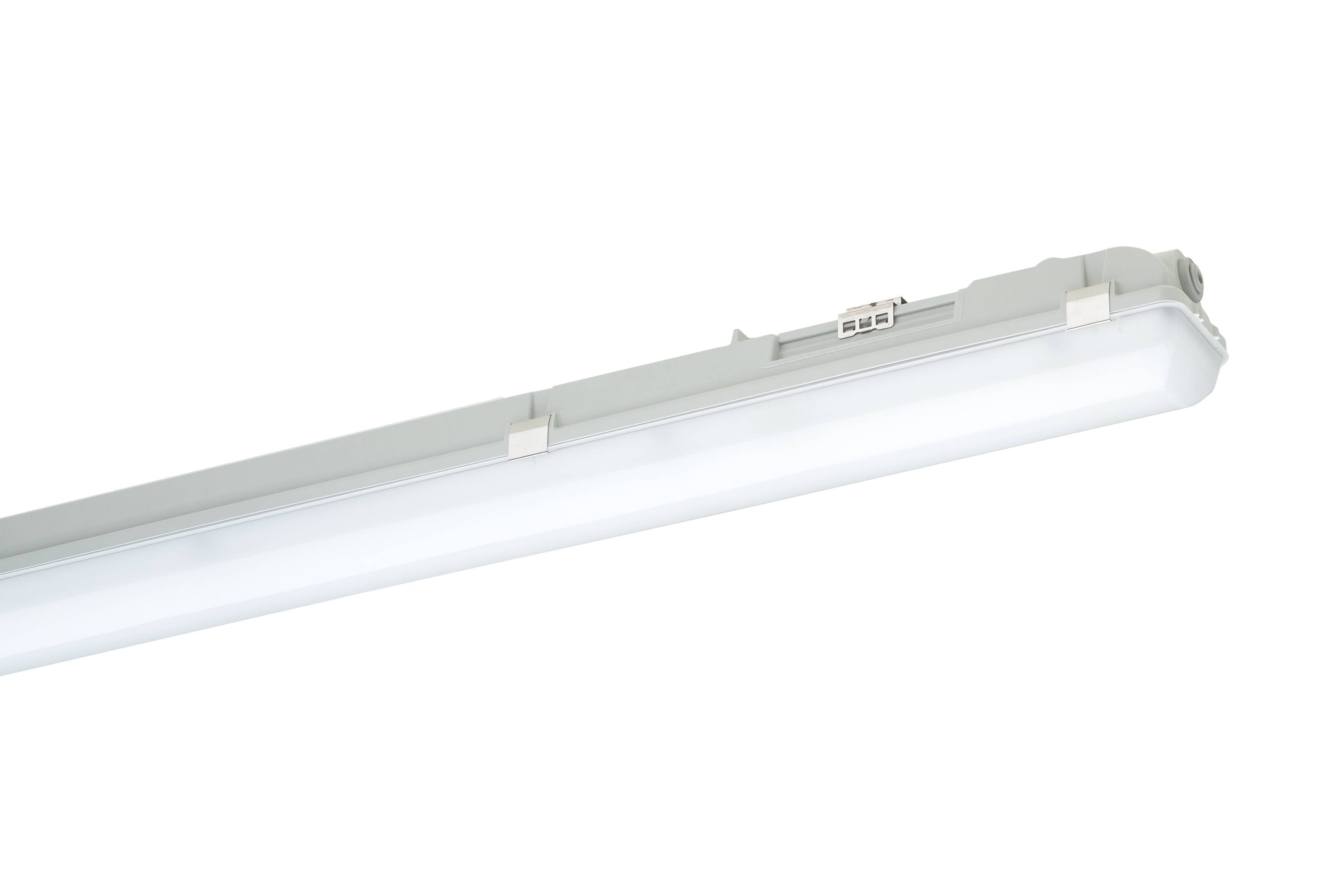

Long fluorescent tube light fixture with a white translucent cover on a plain background

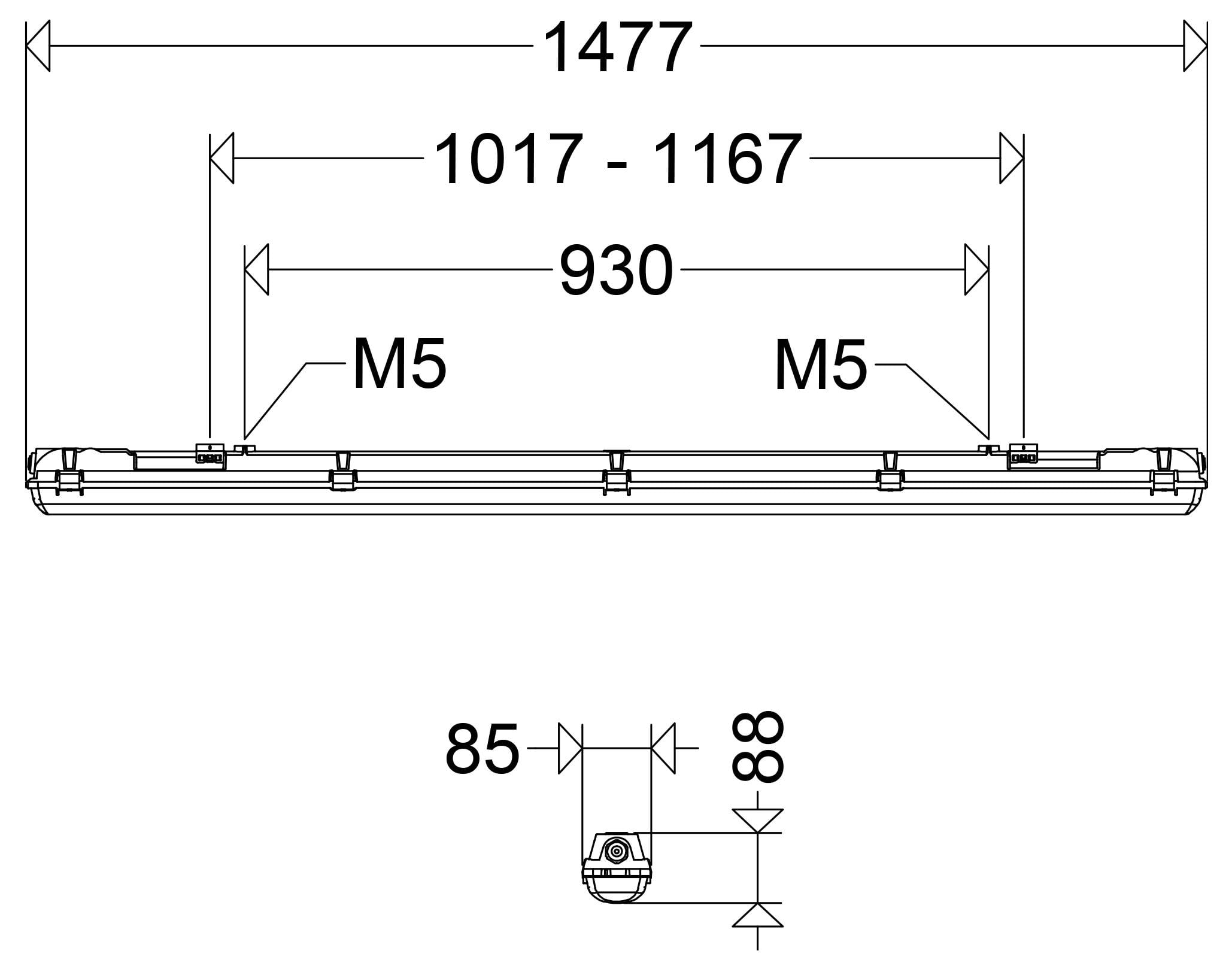

Technical drawing of a long bar or rail with dimensions 1477, 1017-1167, and 930 mm, plus M5 mounting points and an 85 x 88 mm end view.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Power= 43 W
Total luminous flux= 6200 lm
Colour temperature= 4000 K
White

Technical specifications

Factory colour: Grey

Colour rendering index: 80-89

Height: 88 mm

Length: 1477 mm

Width: 85 mm

: IP65
IK05

Bulb type: LED (monochrome)

Colour: White

Light features: Incl. ballast
Selectable luminous flux
Direct light emission
Suitable for wall mounting
Ceiling mount option
Usable as a pendant light

Light bulb included: Yes

Material: Plastic

Total luminous flux: 6200 lm

: 43 W

: 4000 K

Protection class: I

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3769180 Schuch 167 15LG2 VARIO LED wet room diffusor LED (monochrome) 43 W White Grey

User & Safety Instructions

User & Safety Instructions 3769180 Schuch 167 15LG2 VARIO LED wet room diffusor LED (monochrome) 43 W White Grey

Description

LED wet room diffusor, LUXANO 2, 25 W, 43 W, 3800 lm, 6200 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+35 °C, L80>50000 h (@ Ta max), L70>100000 h (@ Ta max), satin pan PMMA, stainless steel seal (1.4310), glass fiber reinforced polyester housing, color gray, 4-step adjustable luminous flux (note: only min., max values are specified), EAN/GTIN:4041254400730.LED wet-room diffuser LUXANO 2 with variable adjustable luminous flux. Glass fiber reinforced polyester casing, satin finish tub, foamed sealing and stainless steel clamps. Painted reflector with LED modules and electronic ballast, variable cable entry and mounting brackets made of stainless steel for an easy and quick mounting of the lamp.
