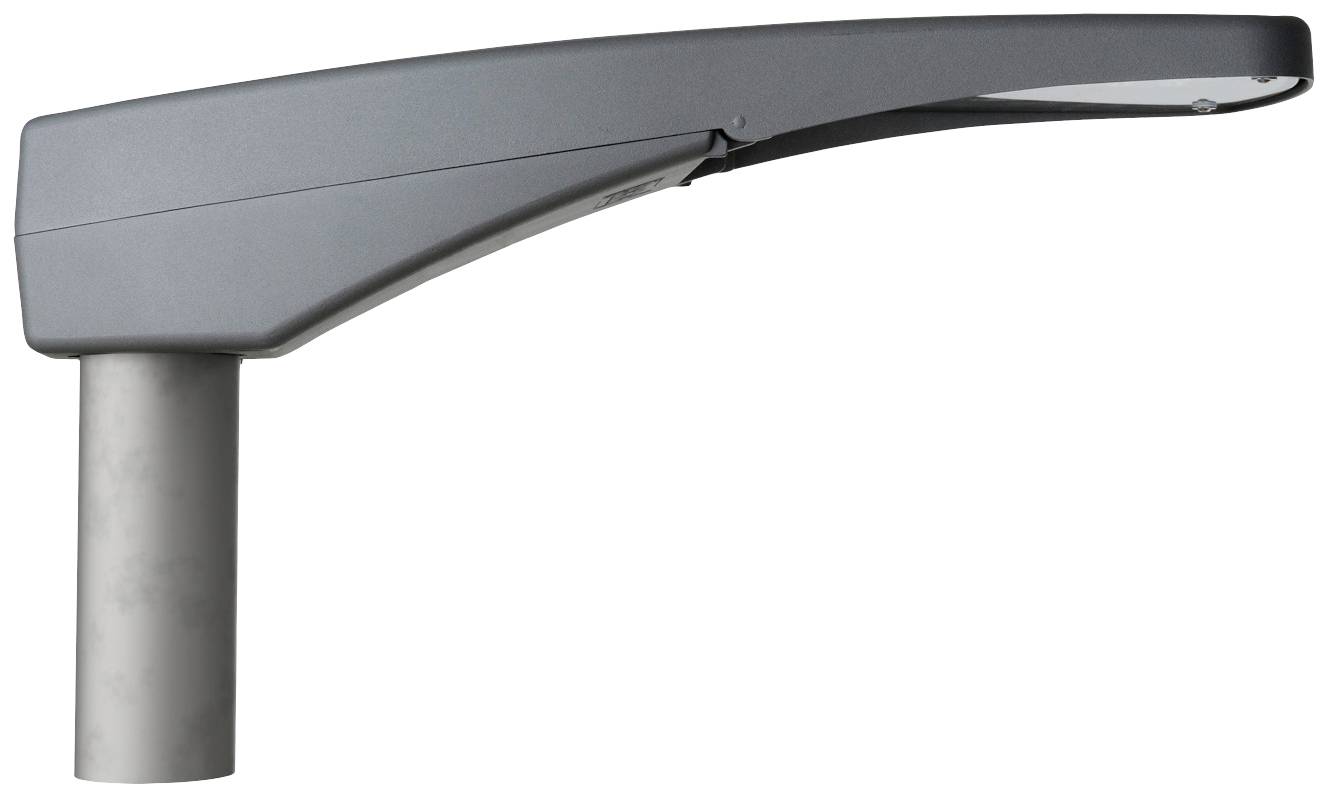

Schuch 48 3203 480010017 LED street light, LED lantern, LED outdoor wall light LED (monochrome) Built-in LED 70 W Grey (
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED street light
- Type
Lantern
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
70 W
70 W
4000 K
- Colour
Neutral white
9610 lm
- Total luminous flux
9610 lm
- Light features
Incl. strain relief
Incl. feed
Direct light emission
No frame
Suitable for wall mounting
- Protection class
II
IP66
- Factory colour
Grey (matt)
- Material
Safety glass
Aluminium (die-cast)
- Weight
7500 g
- Dim

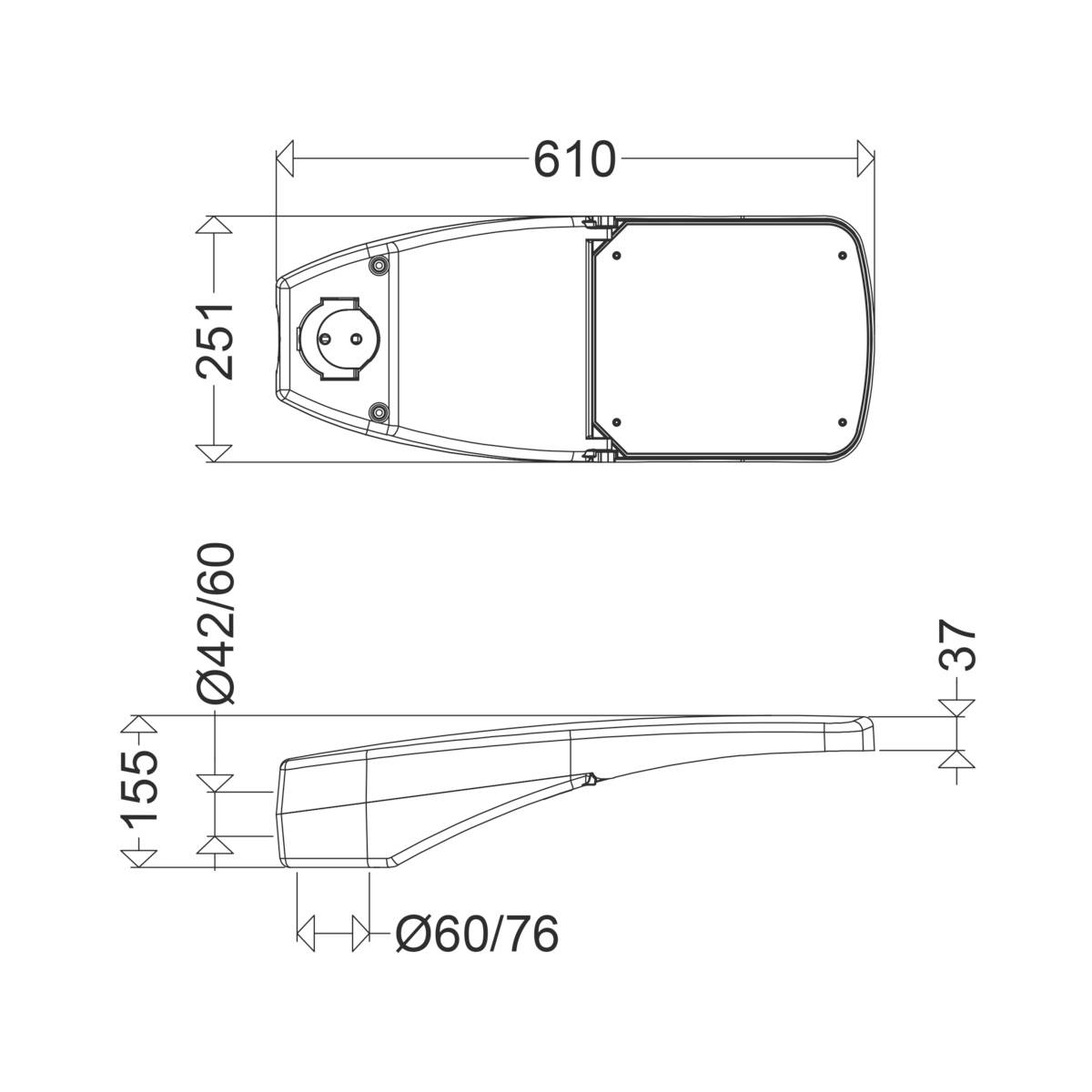

(L x W x H) 610 x 251 x 155 mm
n.rel.
- Colour temperature range
4000 K
- Width
251 mm
- Height
155 mm
- Length
610 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2617221 Schuch 48 3203 480010017 LED street light, LED lantern, LED outdoor wall light LED (monochrome) Built-in LED 70 W Grey (
User & Safety Instructions
User & Safety Instructions 2617221 Schuch 48 3203 480010017 LED street light, LED lantern, LED outdoor wall light LED (monochrome) Built-in LED 70 W Grey (
Description
LED outdoor light, consisting of two-piece, powder-painted die-cast aluminum housing. Upper part with EVG, LED modules, optics and frameless, flat safety glass, can be folded up and removed from the lower part. Lower section with integrated mast mounting system, inclination adjustment, cable entry, disconnect connection, strain relief and pressure compensation system with internal ventilation in the mast connection room (contamination-proof). Zhaga-compliant LED modules with highly efficient optics, direct beam, multi-layer technology. ECG with high surge voltage strength, overload and short-circuit protection. Universal mast attachment system made of die-cast aluminum for mast attachment Ø 60/76mm and mast attachment Ø 42/60mm.Areas of application: Residential, semi-residential, adjacent and main roads, roundabouts, cycle paths and footpaths, Traffic-restricted areas, factory premises, parking places, entrances and exits, etc.
