Schuch 543 0803R G2 543000009 LED light attachment LED (monochrome) 18 W Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED light attachment
- Bulb type
LED (monochrome)
18 W
4000 K
- Colour
White
- Total luminous flux
2690 lm
- Light features
Incl. ballast
- Protection class
II
IP54
IK06
- Factory colour
Grey
- Material
Aluminium
Plastic
- Dim

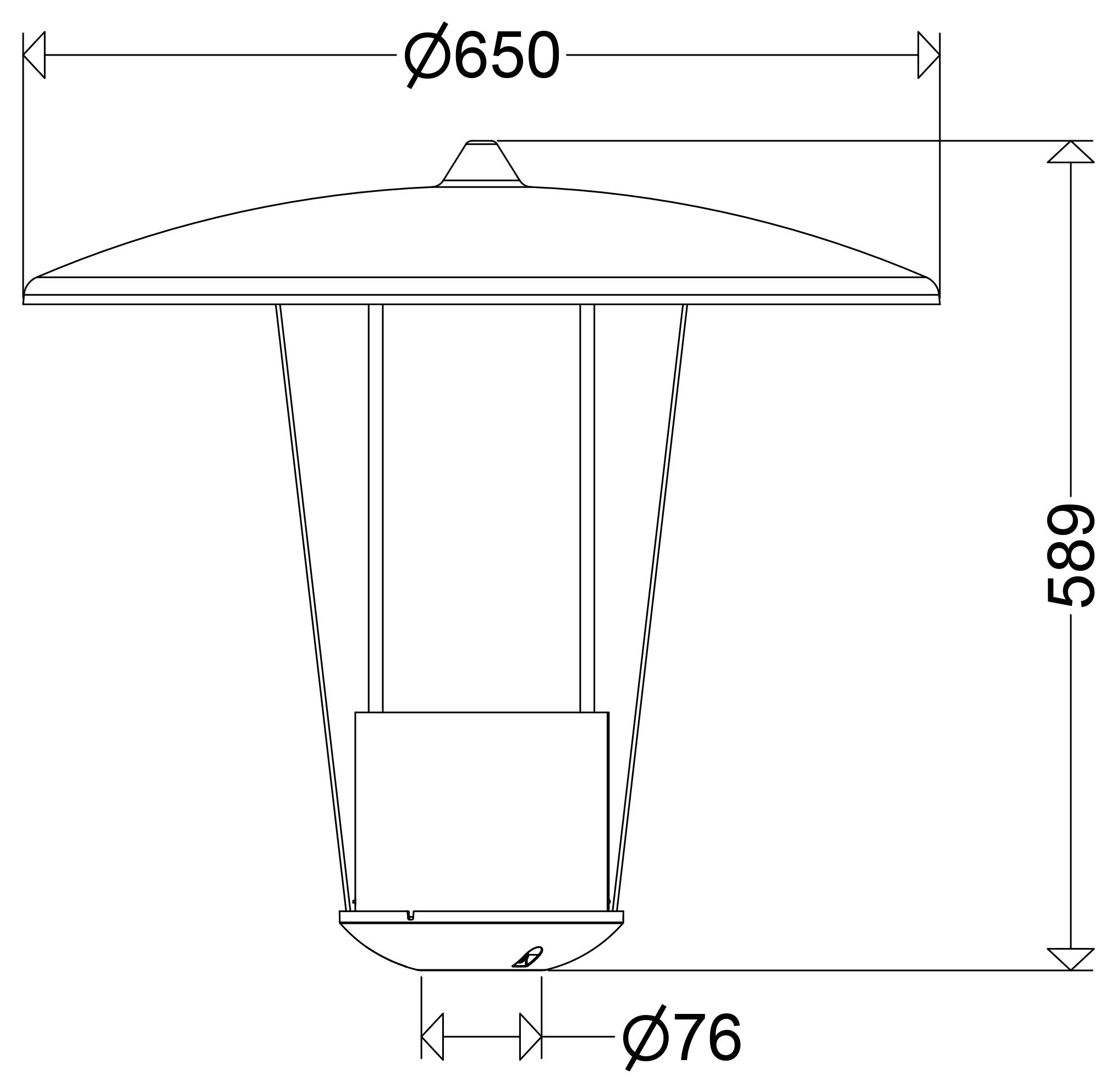

(W x H) 650 mm x 589 mm
n.rel.
- Colour rendering index
70-79
- Colour temperature range
4000 K
- Width
650 mm
- Height
589 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769404 Schuch 543 0803R G2 543000009 LED light attachment LED (monochrome) 18 W Grey
User & Safety Instructions
User & Safety Instructions 3769404 Schuch 543 0803R G2 543000009 LED light attachment LED (monochrome) 18 W Grey
Description

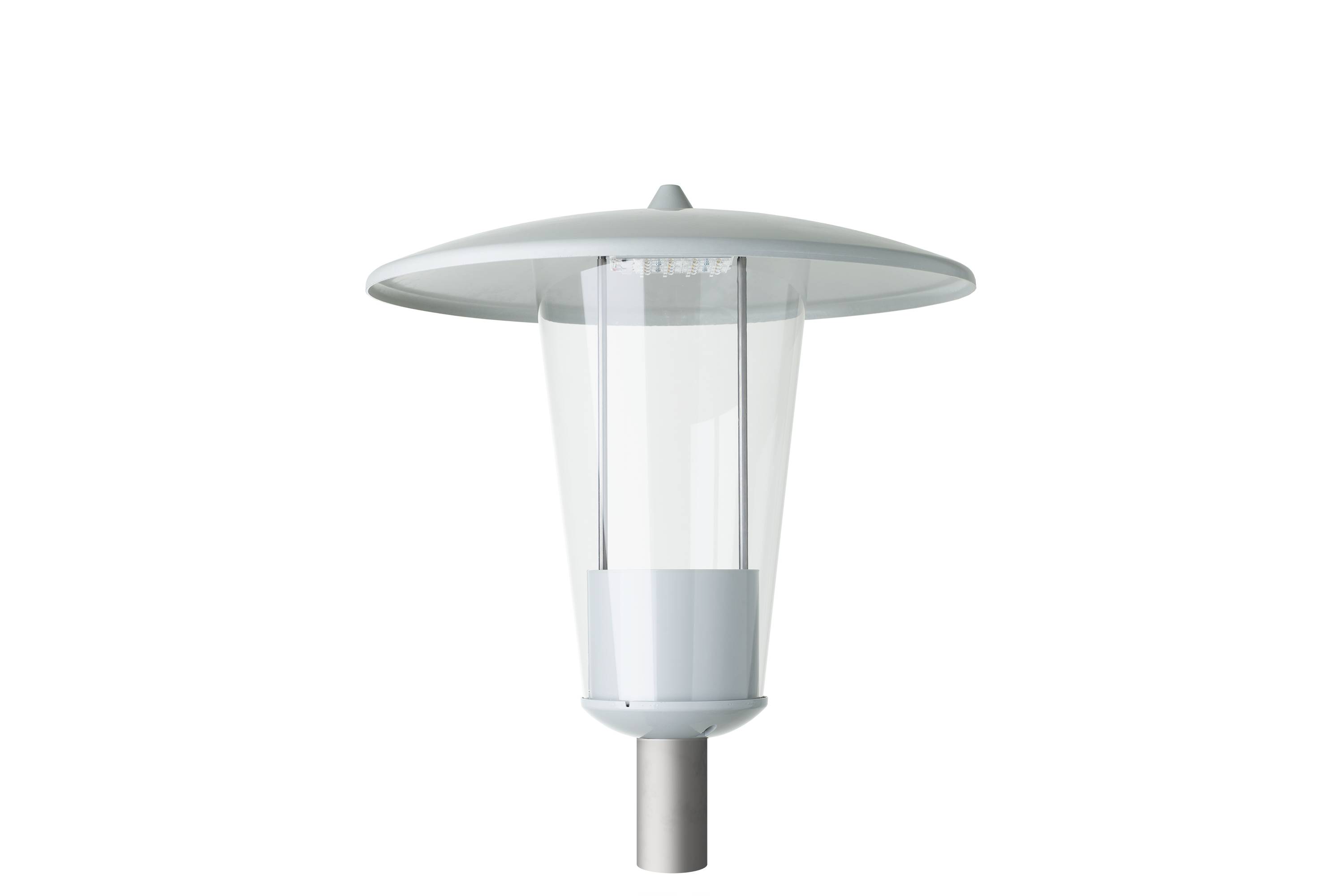

LED Mushroom Light, RETRO, 18 W, 2690 lm, SKII, IP54, rotational-symmetrical, 4000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), cone PMMA clear, Lamp roof (polyester), housing aluminum, painted, Colour gray, RAL 7035, ULOR=0%, Attention: Light consists of 3 packing pieces (mast unit, glass and roof), delivery condition: partly mounted!, EAN/GTIN:4041254394046.Classic LED mushroom lamp RETRO, consisting of glass fiber reinforced polyester roof, powder-coated mast base made of aluminum and clear, conical PMMA glass. LED module and EVG-unit wired ready to connect, disconnect plug connection for the network connection terminal and strain relief for connection cable. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting on straight light masts Ø 76 mm (for Ø 60 mm see "Optional accessories").
