Schuch 931200002 e9312F LED ceiling light LED (monochrome) 11 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED ceiling light
- No. of bulbs
1
- Bulb type
LED (monochrome)
11 W
6500 K
- Colour
White
- Total luminous flux
600 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
- Protection class
I
IP66
- Material
Aluminium
Plastic
- Dim

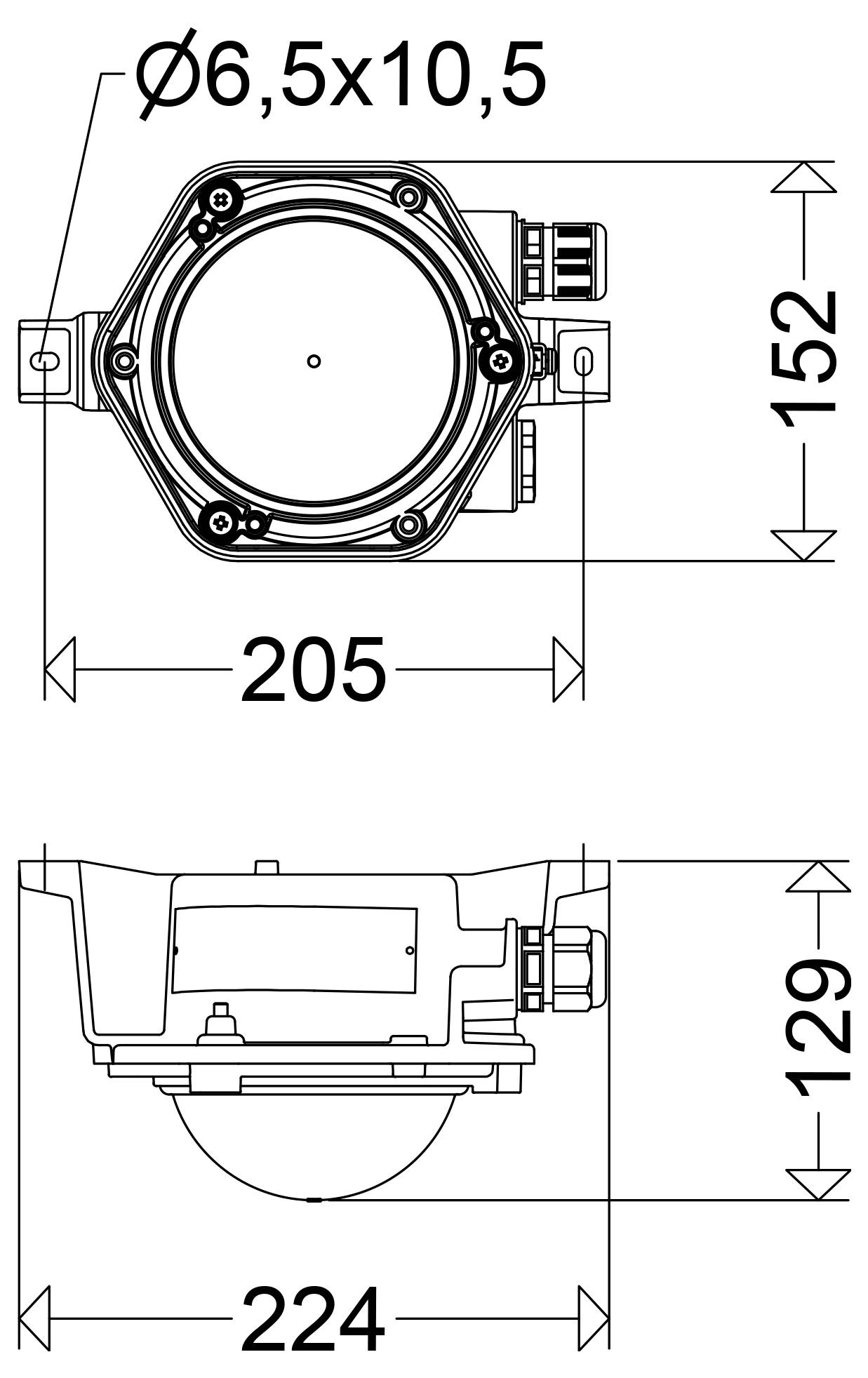

(L x W x H) 224 x 152 x 143 mm
n.rel.
- Light bulb included
Yes
- Width
152 mm
- Height
143 mm
- Length
224 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770249 Schuch 931200002 e9312F LED ceiling light LED (monochrome) 11 W
User & Safety Instructions
User & Safety Instructions 3770249 Schuch 931200002 e9312F LED ceiling light LED (monochrome) 11 W
Description

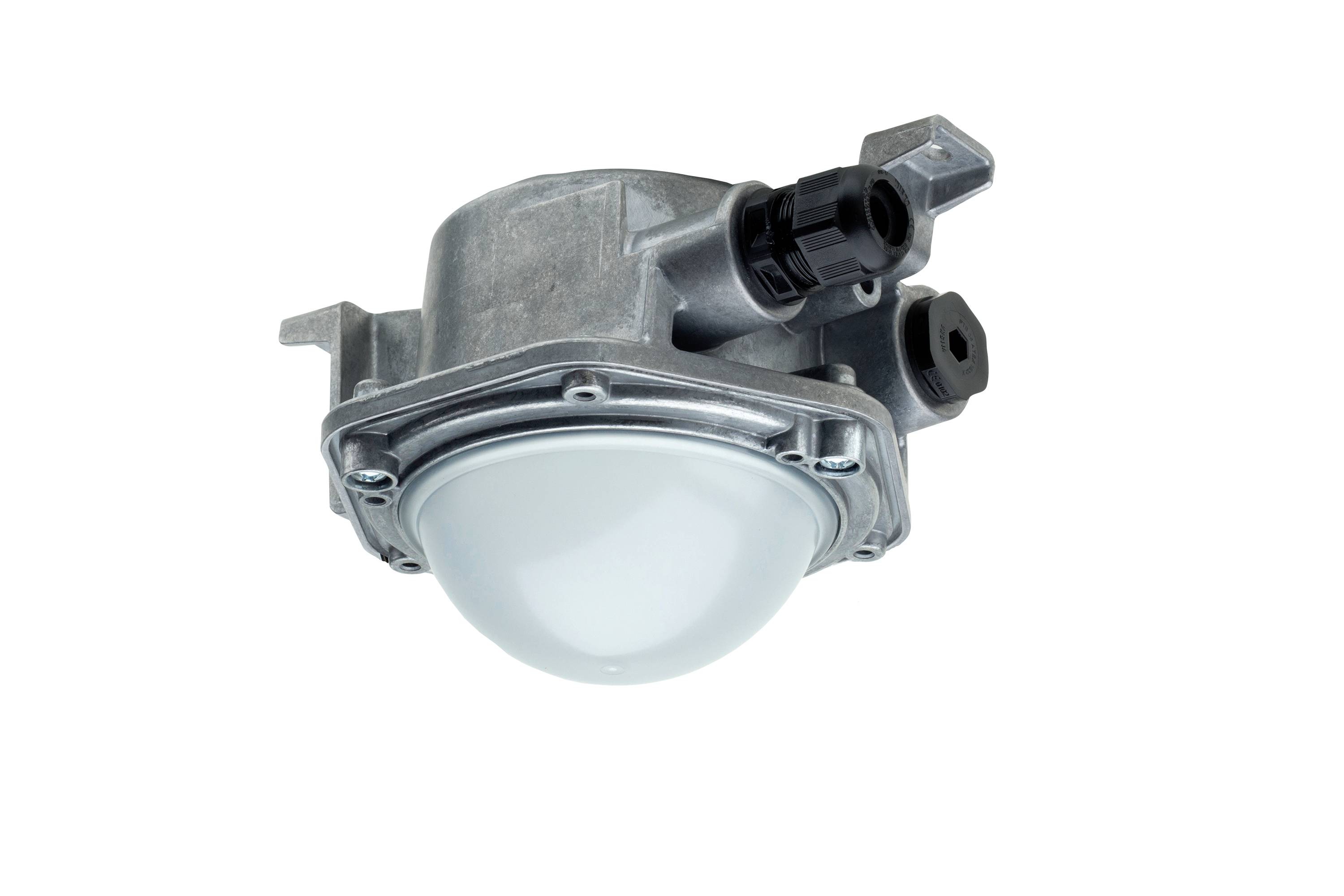

EX LED Wall and Ceiling Light, ExGLOBE, EX-Zone 1/21/2/22, 11 W, 600 lm, SKI, IP66, rotation-symmetric-radiation, 6500 K, Ta -25 °C/+40 °C, L70>100000 h (@ Ta max), tub PC satin, shutter steel galvanized, casing aluminum die-cast, EAN/GTIN:4041254347318. Explosion-proof LED wall and ceiling light ExGLOBE for zone 1/21. Die-cast aluminum housing with molded fixing brackets, unpainted, electro-block made of die-cast aluminum with LED module and integrated EVG. Satin finish cover made of polycarbonate.
