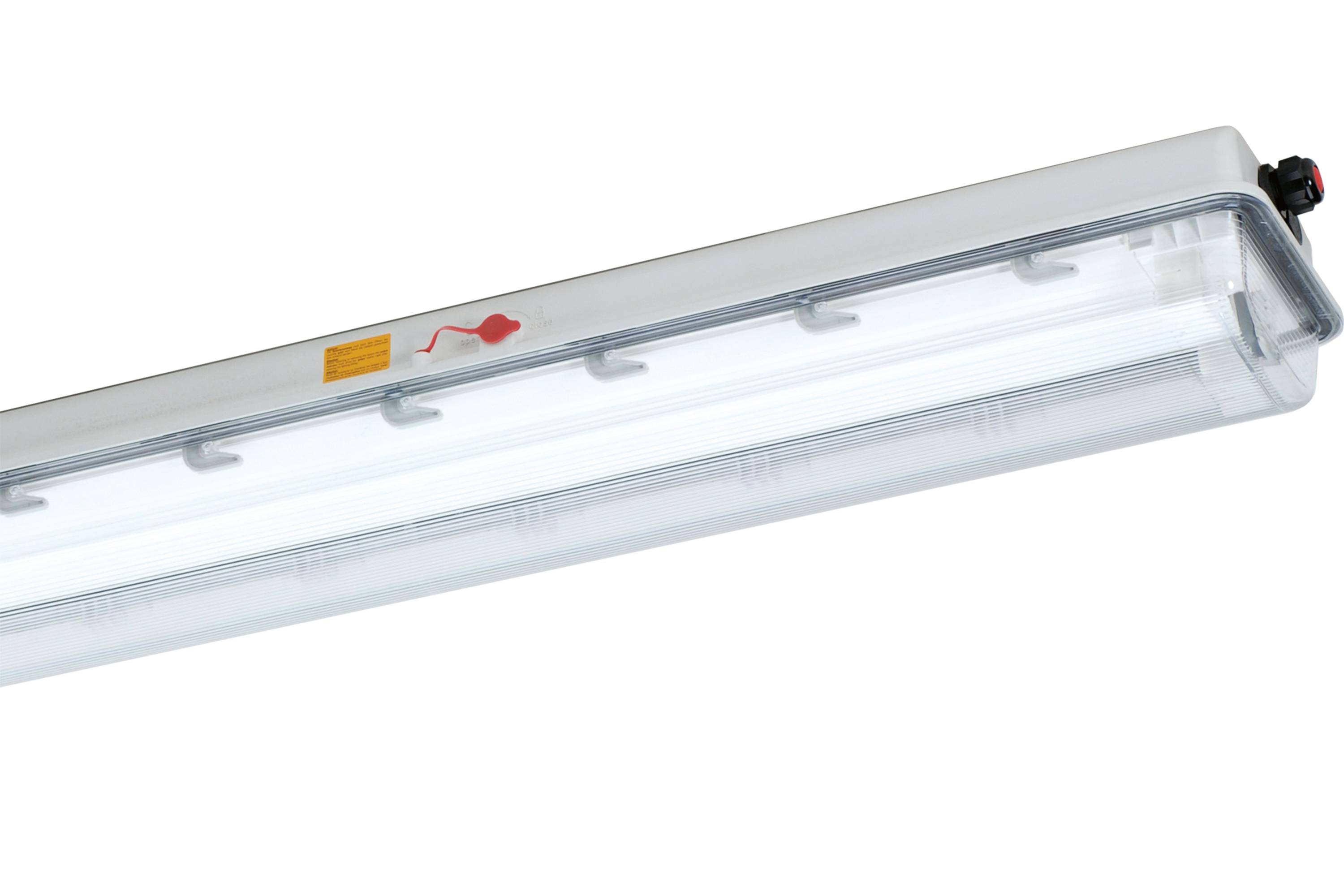

Schuch e840 12L42 LED wet room diffusor LED (monochrome) 28 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 28 W
- Total luminous flux= 4230 lm
- Colour temperature= 6500 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)

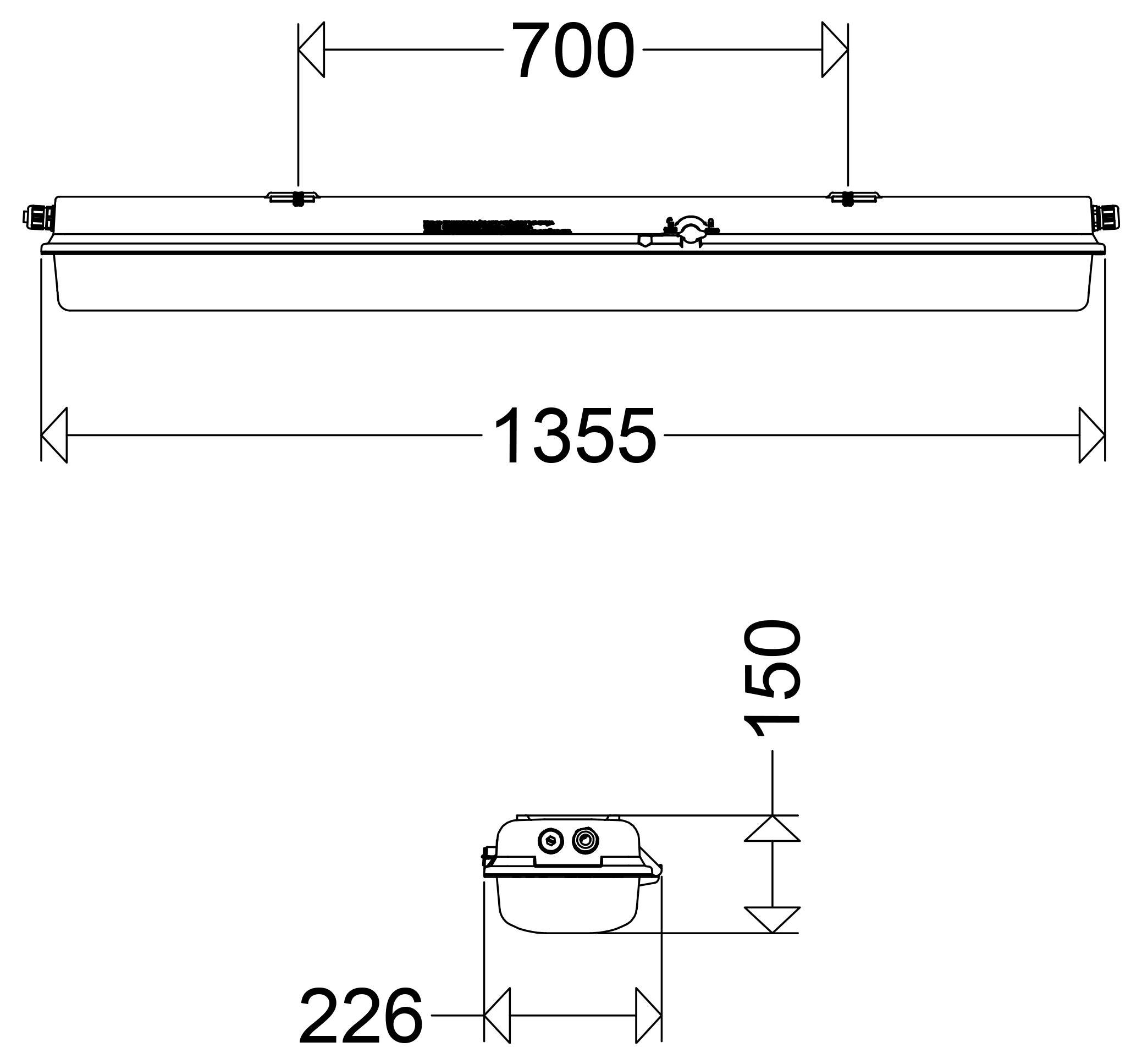

- Length
1355 mm
28 W
- Height
150 mm
- Width
226 mm
6500 K
- Colour
White
- Total luminous flux
4230 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
IP66
IK10
- Material
Plastic
- Dim
(L x W x H) 1355 x 226 x 150 mm
n.rel.
- Light bulb included
Yes
- Colour temperature range
6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770810 Schuch e840 12L42 LED wet room diffusor LED (monochrome) 28 W White
User & Safety Instructions
User & Safety Instructions 3770810 Schuch e840 12L42 LED wet room diffusor LED (monochrome) 28 W White
Description
EX LED tub light, EX-Zone 1/21/2/22, 28 W, 4230 lm, SKI, IP66, broad radiation, 6500 K, Ra≥ 80, Ta -25 °C/+55 °C, L80B50>100000 h (@ Ta max), L80B50>100000 h (@ Ta 25°C), L90B50>75000 h (@ Ta 25°C), clear pan PC with inner prisms, plastic shutter, housing glass-fiber reinforced polyester, color: gray, pure-out wiring (RR), EAN/GTIN:4041254281865.Explosion-proof LED diffuser lights with central fastener for zone 1/21. Glass fiber reinforced polyester housing, clear termination tub made of polycarbonate with inner prisms and silicone seal. Aluminium reflector painted, with cast LED modules and satin finish blend elements, folded and removable. Encapsulated EVG with overvoltage, overload and short-circuit protection.
