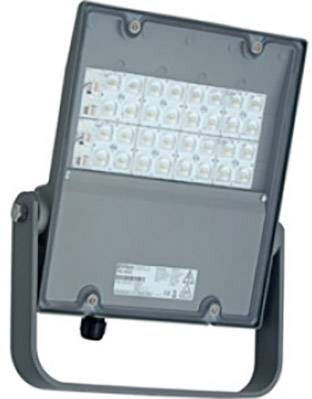

Schuch Foco Vario 76000 0103 LED outdoor floodlight 70 W Colours (LEDs): Neutral white
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Foco Vario LED outdoor spotlight
- Power= 70 W
- Total luminous flux= 9270 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED outdoor floodlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
70 W
70 W
4000 K
- Colour
Neutral white
9270 lm
- Total luminous flux
9270 lm
- Light features
Selectable luminous flux
Swivelling
Ceiling mount option
Suitable for wall mounting
- Rotation range (max.)
180°
- Swivel range (max.)
180°
- Protection class
I
IP66
- Factory colour
Grey
- Material
Aluminium (die-cast)
Safety glass
- Weight
3.9 kg
- Dim
(L x W x H) 38 x 33 x 5.8 cm
n.rel.
- Type
Rectangular
- Light bulb included
Yes
- Width
33 cm
- Height
5.8 cm
- Length
38 cm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1991975 Schuch Foco Vario 76000 0103 LED outdoor floodlight 70 W Colours (LEDs): Neutral white
User & Safety Instructions
User & Safety Instructions 1991975 Schuch Foco Vario 76000 0103 LED outdoor floodlight 70 W Colours (LEDs): Neutral white
Description
Areas of application:
Industrial sites, storage areas, terminals, construction sites, accent lighting, building and facade radiation etc.
Design:
Housing: Aluminum die casting, one-piece, powder-painted DB702N (ice-cream) with LED module, optics (types TB and T) and EVG.
Glass: Flat, temperature-changing safety glass, impact resistance IK08, silicone seal.
Switch for adjusting the luminous flux in the connection compartment accessible from outside.
Light distribution: With optics deep-wide radiating (TB) or deep-radiating (T), without optics wide-radiating.
Connection: Via externally accessible connection compartment, 3-pin, max. clamping range 2.5mm2.
Cable entry: 2 entries for M20 x 1.5 (1 screw connection and 1 screw plug).
Mounting: Mounting bracket can be swiveled by 180°, with 3 holes for wall or ceiling mounting or for mast mounting in conjunction with ROB 60/76 (see accessories).
This text is machine translated.
Industrial sites, storage areas, terminals, construction sites, accent lighting, building and facade radiation etc.
Design:
Housing: Aluminum die casting, one-piece, powder-painted DB702N (ice-cream) with LED module, optics (types TB and T) and EVG.
Glass: Flat, temperature-changing safety glass, impact resistance IK08, silicone seal.
Switch for adjusting the luminous flux in the connection compartment accessible from outside.
Light distribution: With optics deep-wide radiating (TB) or deep-radiating (T), without optics wide-radiating.
Connection: Via externally accessible connection compartment, 3-pin, max. clamping range 2.5mm2.
Cable entry: 2 entries for M20 x 1.5 (1 screw connection and 1 screw plug).
Mounting: Mounting bracket can be swiveled by 180°, with 3 holes for wall or ceiling mounting or for mast mounting in conjunction with ROB 60/76 (see accessories).
This text is machine translated.
Scope of delivery
- LED outdoor spot
- Fitting Material
- User manual.
