Schuch Primo 107 15L60 XR LED wet room light LED (monochrome) Built-in LED 42 W Neutral white
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Primo XR 107 15L60 XR LED pipe lamp
- Hermetically sealed by welding the pipe and end caps and perfectly sealed quick-connect connectorsSafe protection of LED and ECG against damage and total failure due to harmful gas effectsDust- and pressure-tight (IP68 3m/30Min.)Suitable for high pressure/steam jet cleaning (IPX9K tested)Impact-resistant PMMA pipe with high mechanical strengthHomogeneous illumination by satinised tube, no individual light points visible, pleasant light perception, excellent glare limitation
Technical specifications
- Product type
LED wet room light
- Type
Tube
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
42 W
- Length
1529 mm
42 W
4000 K
- Colour
Neutral white
6270 lm
- Total luminous flux
6270 lm
- Light features
Suitable for underwater use
IK06
IP68
IPX9K
Protection class I
- Material
PMMA
Plastic
- Weight
2600 g

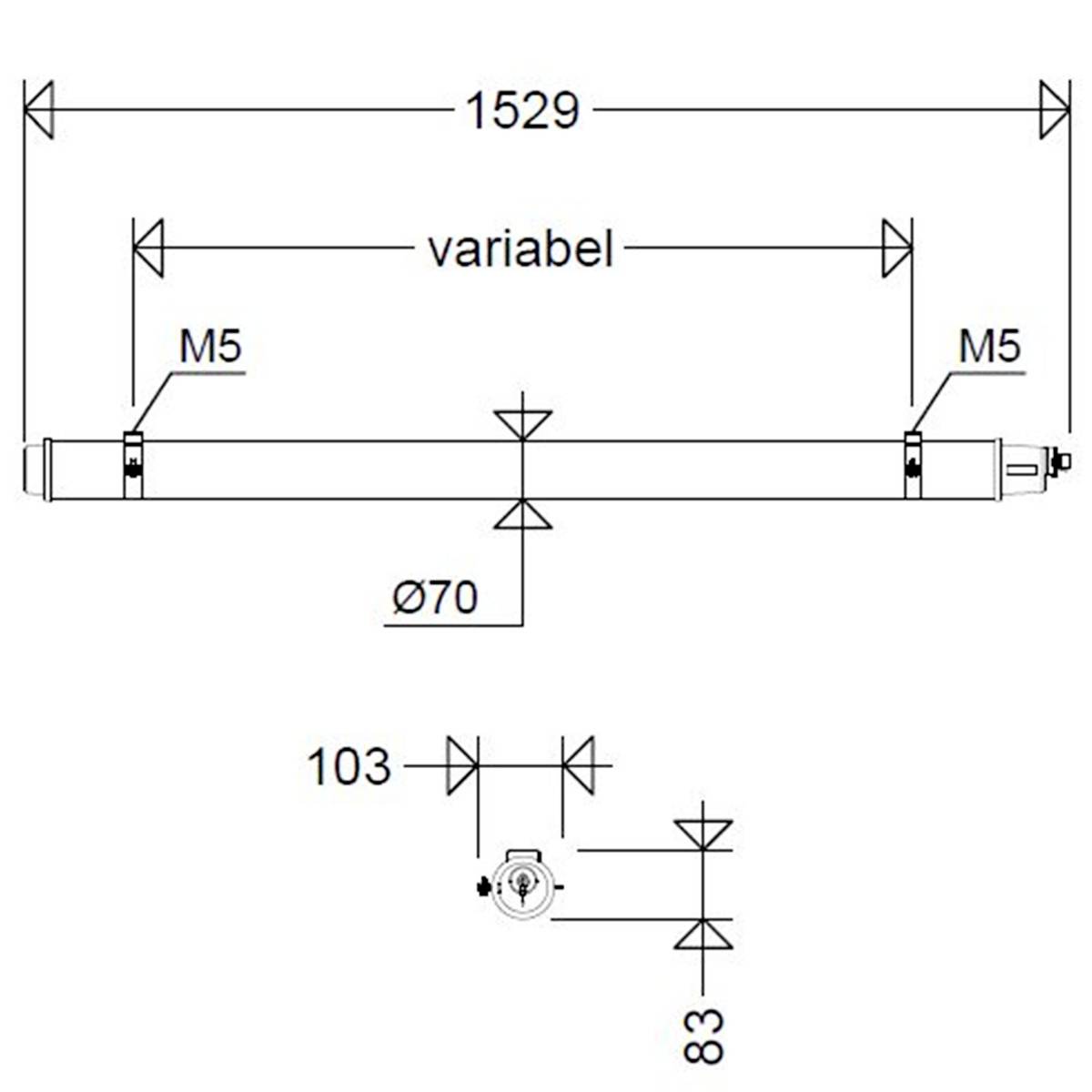

- Dim
(Ø x L) 70 mm x 1529 mm
n.rel.
- Light bulb included
Yes
- Colour temperature range
4000 K
- (Ø)
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2617229 Schuch Primo 107 15L60 XR LED wet room light LED (monochrome) Built-in LED 42 W Neutral white
Datasheet 2617229 Schuch Primo 107 15L60 XR LED wet room light LED (monochrome) Built-in LED 42 W Neutral white
Datasheet 2617229 Schuch Primo 107 15L60 XR LED wet room light LED (monochrome) Built-in LED 42 W Neutral white
User & Safety Instructions
User & Safety Instructions 2617229 Schuch Primo 107 15L60 XR LED wet room light LED (monochrome) Built-in LED 42 W Neutral white
Description
Extremely high-density LED tube light for areas subject to pollution.Satined, impact resistant PMMA pipe, welded with end/connection caps. Aluminum reflector with highly efficient LED modules and ECG with overload and short-circuit protection. Electrical connection via quick plug connection (FastConnect), plug part integrated in connection cap, socket part enclosed. Attachment by means of two stainless steel pipe clamps, included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery
- LED tube light
- Stainless steel pipe clamps
- User manual.
