Schultze A 2000E Electric trace heating RiRo a 2000E
EAN:
Part number:
Item no:
Technical specifications
- Output: 2000 W
- Number of phases: 1
- Voltage: 230 V
- Ribbed diameter 110 mm
- Automatic temperature controller: Yes
- Low surface temperature: No.
- PROTECTION CLASS (IP) IP66/IP67
- Height: 170 mm
- Width 130 mm
- Length: 1040 mm
- Explosion-proof: No.
- Product type
Electric trace heating
- Operating voltage
230 V
2000 W
IP66/IP67
- Dim
(L x W x H) 1040 x 130 x 170 mm
- Width
130 mm
- Height
170 mm
- Length
1040 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795866 Schultze A 2000E Electric trace heating RiRo a 2000E
User & Safety Instructions
User & Safety Instructions 3795866 Schultze A 2000E Electric trace heating RiRo a 2000E
Information
Information 3795866 Schultze A 2000E Electric trace heating RiRo a 2000E
Description

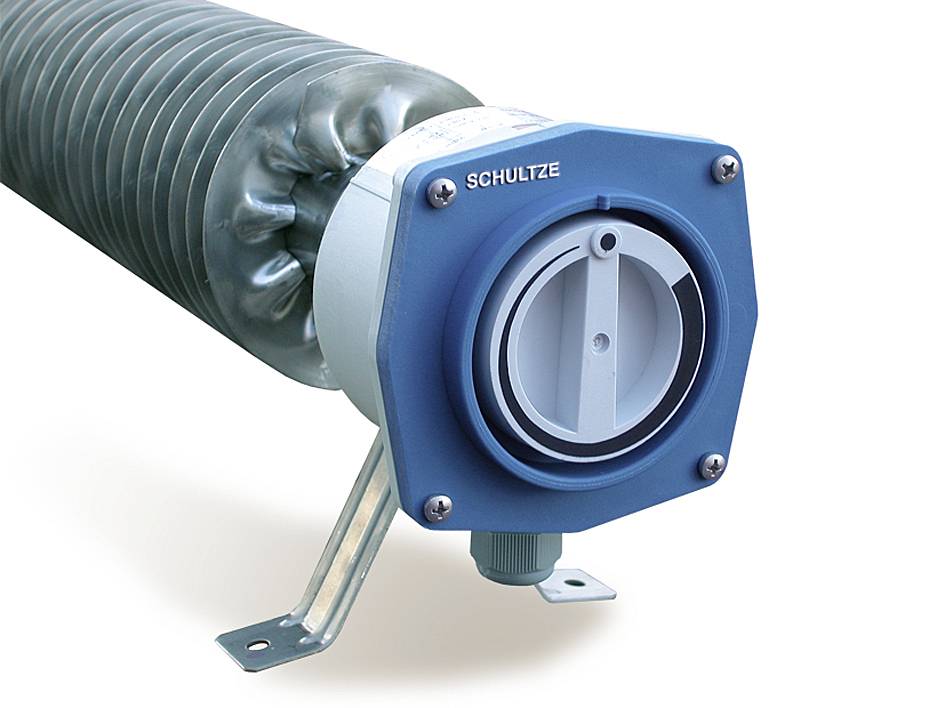

Stainless steel rib-pipe heater automatic, 2000 W, 230 V, with integrated temperature control. The built-in thermostat keeps the set room temperature constant. The setting can be made free of frost or can be controlled continuously between +5 and +30°C. Thus the heat emission can be controlled selectively. The built-in signal light indicates when the device is switched on. Dust and water proof protection class IP66 / IP67. Impact resistant connector housing made of glass-fiber reinforced polyamide, including quick mounting base for wall or floor mounting and M20 cable fitting.
