Name: Schurter 0031.8241 0031.8241 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)
Brand: Schurter
SKU: 3306376

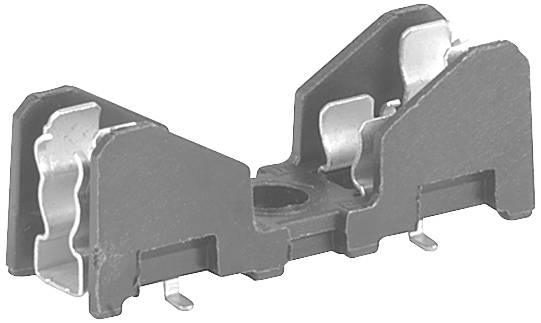

Figure of a black socket holder with metal contacts, suitable for electronic components.

Image similar

Product type

Fuse holder

Mounting type

PCB mount

Suitable for

Micro fuse 5 x 20 mm

Material

Thermoplastic

IP rating

IP00

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Schurter SMD fuse holder

Our service for you

Technical specifications

Series: OGD
Dimensions: Length 30.5 mm
Dimensions: Width 10.9 mm
Dimensions: Height 13.4 mm
Approvals: CULus,VDE
Design: Open
Mounting: PCB mounting
Mounting: Fixing hole
Contact material: Tin-plated copper alloy
Applications: For G-fuses 5x20 mm and 6.3x32mm
Note: IP20 together with cover cap OGD CAP
Housing material: Thermoplastic (UL 94V-0)
Identification: Logo, type, rated voltage, power ACC, current value, Certification mark
Colour, black
Connection type SMD solder connection
Weight: 3.7 g
Min. Operating temperature range -40 °C.
Operating temperature range, max. 85 °C.
Rated current 10 A
Dielectric strength 6 kV
NOMINAL VOLTAGE V AC 250 V AC
Contact resistance max. 10 mOhm
Insulation resistance 10 MOhm
Nominal power intake 4 W
Soldibility 245 °C / 3 s
Standards IEC60127-6, UL 4248-1 / UL 512, CSA C22.2 no. 39
Insulation class IP00

Product type: Fuse holder

Material: Thermoplastic

Mounting type: PCB mount

: IP00

Suitable for: Micro fuse 5 x 20 mm

Weight: 3.70 g

Min. temperature: -40 °C

Max. temperature: 85 °C

Length: 30.50 mm

Width: 10.00 mm

Height: 13.40 mm

Content: 1 pc(s)

Dim: (L x W x H) 30.50 x 10.00 x 13.40 mm

RoHS-compliant: Yes

Type: 0031.8241

Documents & Downloads

Datasheet

Datasheet 3306376 Schurter 0031.8241 0031.8241 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3306376 Schurter 0031.8241 0031.8241 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)

Description

Can be used universally for devices with three-phase current supply (400 VAC)
Base with raised insulation walls
Special clip end prevents axial displacement of the fuse

This text is machine translated.
