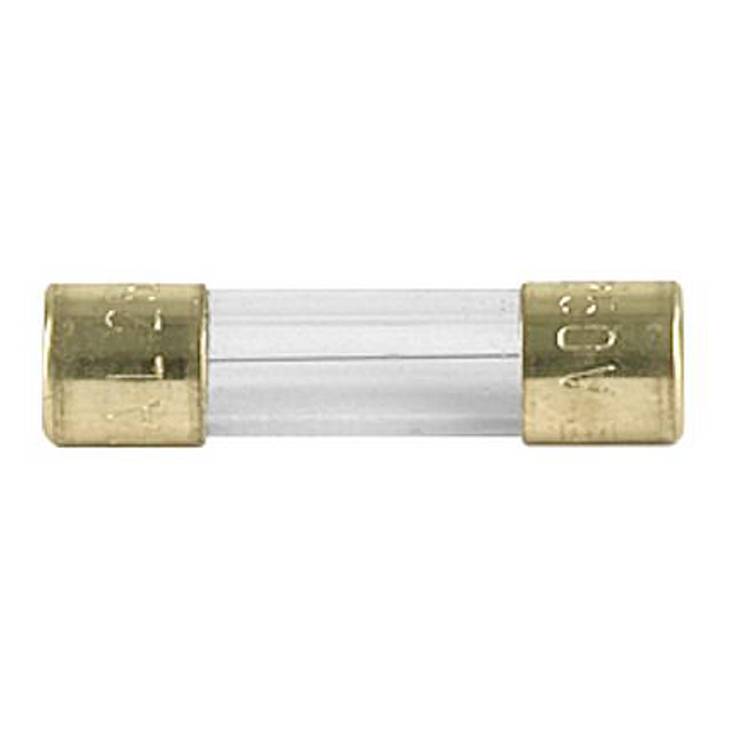

Schurter 0034.5624.11 0034.5624.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 5.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
250 V AC
Nominal current - rounded value
5 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 1.08
30
7% = € 0.08
€ 1.00
50
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 1.08 / piece)
€ 10.80
plus VAT.
14-day return policy included
Technical specifications
- Series SMD-FST
- Dimensions: Length 20 mm
- Nominal voltage at 50 Hz/250 V AC
- Nominal current 5 A
- Approvals CE, VDE, cULus, CCC
- Trigger time: Slow-blow
- Contact material: Gold-plated copper alloy
- Applications: Primary protection on SMD-conducting boards
- Casing material: Glass
- SMD connection type
- Material: Gold-plated copper alloy
- Diameter 5.2 mm
- Weight: 1.05 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 125 °C.
- Climate category IEC 55/125/21
- Melting Integral: 102 A²/s.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 100 mV
- Loss rating, max. 1,600 mW
- Soldibility 245 °C / 30 s
- IEC 60127-2 standard
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 5.2 mm x 20.00 mm
- Nominal current
5.00 A
- Nominal current - rounded value
5 A
- Release characteristics
Time delay -T-
- Length
20.00 mm
- (Ø)
5.2 mm
- Certification marks
IEC 60127-2
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.5624.11
Documents & Downloads
Datasheet
Datasheet 3306238 Schurter 0034.5624.11 0034.5624.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 5.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul
User & Safety Instructions
User & Safety Instructions 3306238 Schurter 0034.5624.11 0034.5624.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 5.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul
Description
SMD fuse
slow-blow
L = low breaking capacity
Loose goods
This text is machine translated.
slow-blow
L = low breaking capacity
Loose goods
