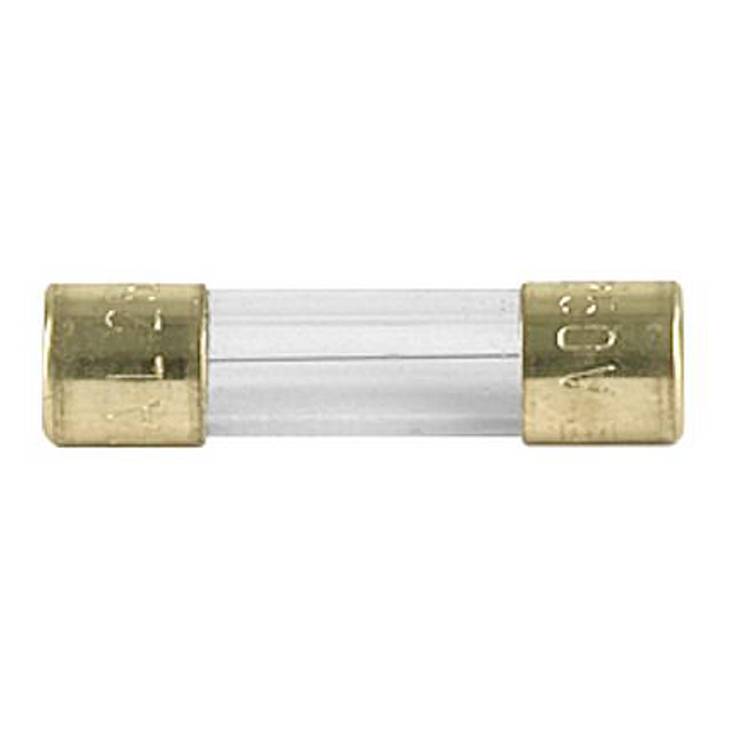

Image similar
Schurter 0034.5627.11 0034.5627.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 10.00 A 250 V AC Time delay -T- Content 1 pc(s) Bu
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
250 V AC
Nominal current - rounded value
10 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series SMD-FST
- Dimensions: Length 20 mm
- Nominal voltage at 50 Hz/250 V AC
- Nominal current 10 A
- Approvals CE, VDE, cULus, CQC
- Trigger time: Slow-blow
- Contact material: Gold-plated copper alloy
- Applications: Primary protection on SMD-conducting boards
- Casing material: Glass
- SMD connection type
- Material: Gold-plated copper alloy
- Diameter 5.2 mm
- Weight: 1.05 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 125 °C.
- Climate category IEC 55/125/21
- Melting Integral: 520 A²/s.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 100 mV
- Loss rating, max. 400 mW
- Soldibility 245 °C / 30 s
- IEC 60127-2 standard
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 5.2 mm x 20.00 mm
- Nominal current
10.00 A
- Nominal current - rounded value
10 A
- Release characteristics
Time delay -T-
- Fuse layout
Glass tube (clear)
- Length
20.00 mm
- (Ø)
5.2 mm
- Certification marks
IEC 60127-2
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.5627.11
Documents & Downloads
Datasheet
Datasheet 3306241 Schurter 0034.5627.11 0034.5627.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 10.00 A 250 V AC Time delay -T- Content 1 pc(s) Bu
User & Safety Instructions
User & Safety Instructions 3306241 Schurter 0034.5627.11 0034.5627.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 10.00 A 250 V AC Time delay -T- Content 1 pc(s) Bu
Description
SMD fuse
slow-blow
L = low breaking capacity
Loose goods
This text is machine translated.
slow-blow
L = low breaking capacity
Loose goods
This text is machine translated.
