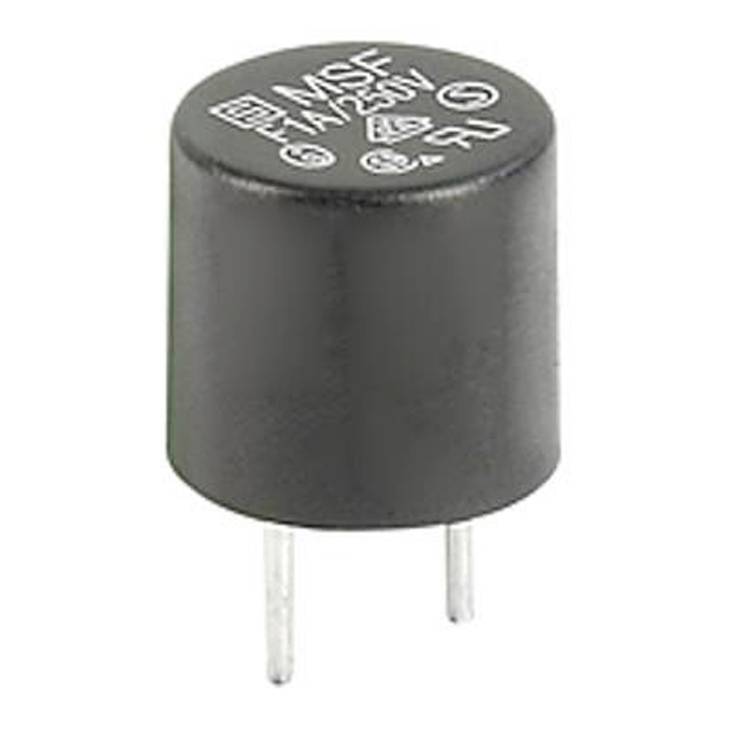

Image similar
Schurter 0034.6013 0034.6013 Pico fuse THT 0.80 A 250 V AC Quick response -F- 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pico fuse
Nominal voltage
250 V AC
Nominal current - rounded value
800 mA
Release characteristics
Quick response -F-
Type
THT
Datasheet (PDF)
Technical specifications
- Series MSF250
- Nominal voltage at 50 Hz/250 V AC
- Approvals: CULus, VDE, CCC
- Trigger time: Quick-action
- Contact material: Tin-plated copper
- Housing 8.5 mm
- Housing material: Thermoplastic, UL 94V-0
- Type of connection: THT
- Pin length 4.3 mm
- Pin diameter 0.64 mm
- Weight: 0.5 g
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Rated current 0.8 A
- Melting Integral: 0.22 A²/s.
- Rated breaking capacity 35 A.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 300 mV
- Loss rating, max. 630 mW
- Soldibility 235 °C / 2 s
- IEC 60127-3 standard
- Product type
Pico fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 0.64 mm x 4.3 mm
- Nominal current - rounded value
800 mA
- Nominal current
0.80 A
- Release characteristics
Quick response -F-
- Type
THT
- Material
Thermoplastic
- Length
4.3 mm
- (Ø)
0.64 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.6013
Documents & Downloads
Datasheet
Datasheet 3306150 Schurter 0034.6013 0034.6013 Pico fuse THT 0.80 A 250 V AC Quick response -F- 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306150 Schurter 0034.6013 0034.6013 Pico fuse THT 0.80 A 250 V AC Quick response -F- 1 pc(s)
Description
• soldered or plugged
