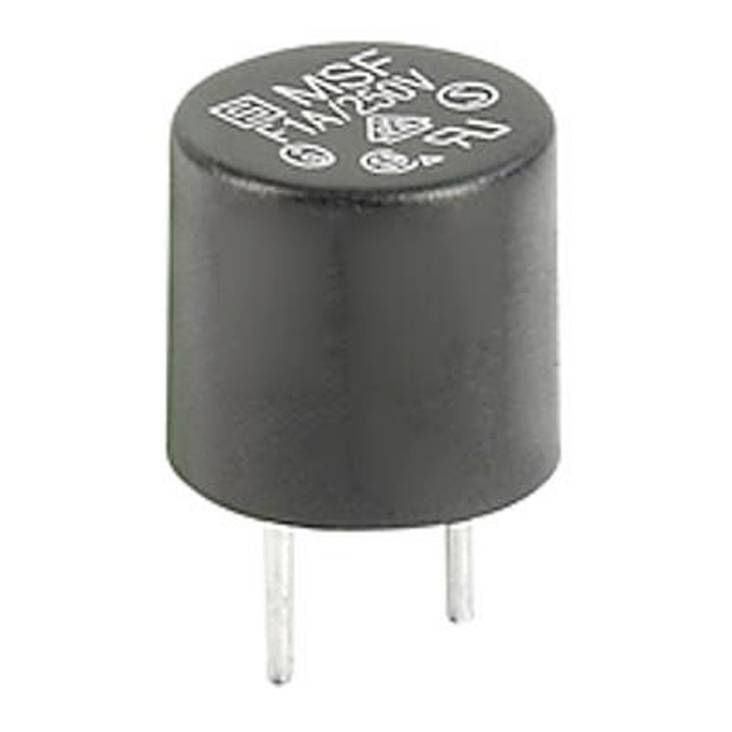

Schurter 0034.6019 0034.6019 Pico fuse THT 3.15 A 250 V AC Quick response -F- 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pico fuse
Nominal voltage
250 V AC
Nominal current - rounded value
3.15 A
Release characteristics
Quick response -F-
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.52
30
8% = € 0.04
€ 0.48
50
12% = € 0.06
€ 0.46
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.52 / piece)
€ 5.20
plus VAT.
14-day return policy included
Technical specifications
- Series MSF250
- Nominal voltage at 50 Hz/250 V AC
- Approvals: CULus, VDE, CCC
- Trigger time: Quick-action
- Contact material: Tin-plated copper
- Housing 8.5 mm
- Housing material: Thermoplastic, UL 94V-0
- Type of connection: THT
- Pin length 4.3 mm
- Pin diameter 0.64 mm
- Weight: 0.5 g
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Rated current 3.15 A
- Melting Integral: 5.4 A²/s.
- Rated breaking capacity 35 A.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 180 mV
- Loss rating, max. 1,490 mW
- Soldibility 235 °C / 2 s
- IEC 60127-3 standard
- Packaging type
Piece
- Product type
Pico fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 0.64 mm x 4.3 mm
- Nominal current - rounded value
3.15 A
- Nominal current
3.15 A
- Release characteristics
Quick response -F-
- Type
THT
- Material
Thermoplastic
- Length
4.3 mm
- (Ø)
0.64 mm
- Pin size
4.3 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.6019
Documents & Downloads
Datasheet
Datasheet 3306156 Schurter 0034.6019 0034.6019 Pico fuse THT 3.15 A 250 V AC Quick response -F- 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3306156 Schurter 0034.6019 0034.6019 Pico fuse THT 3.15 A 250 V AC Quick response -F- 1 pc(s) Piece
Description
• soldered or plugged
