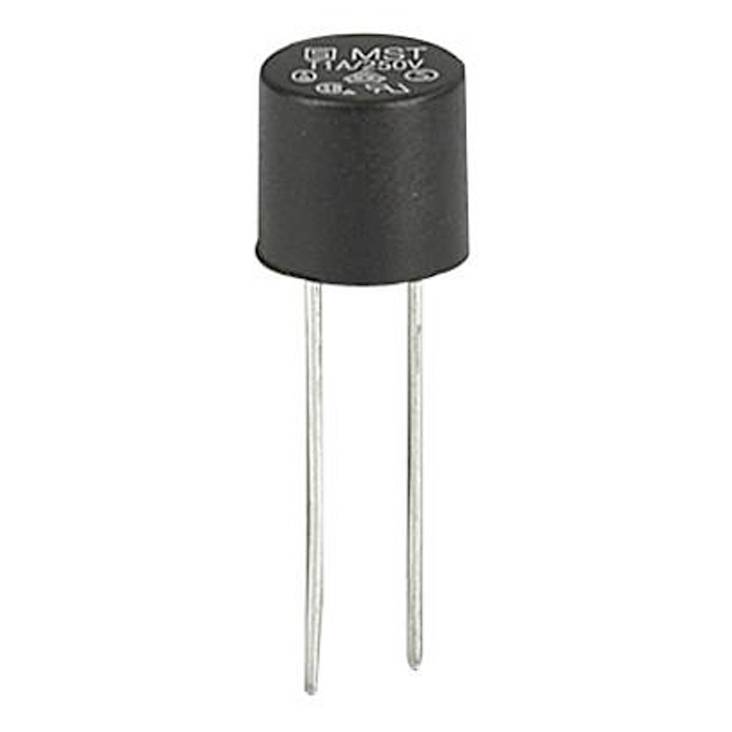

Image similar
Schurter 0034.6710 0034.6710 Pico fuse THT 0.32 A 250 V AC Time delay -T- 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pico fuse
Nominal voltage
250 V AC
Nominal current - rounded value
320 mA
Release characteristics
Time delay -T-
Type
THT
Datasheet (PDF)
Technical specifications
- Series MST250
- Nominal voltage at 50 Hz/250 V AC
- Approvals: CULus,VDE,CCC,KTL,CE
- Trigger time: Slow-blow
- Contact material: Tin-plated copper
- Housing 8.5 mm
- Applications: Primary protection on printed circuit boards|Power adapter for e.g. laptops|SMPS (switching mode Power supply) for TVs and DVDs
- Housing material: Thermoplastic, UL 94V-0
- Type of connection: THT
- Pin length 18.8 mm
- Pin diameter 0.64 mm
- Weight: 0.53 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 125 °C.
- Climate category IEC 55/125/21
- Rated current 0.315 A
- Melting Integral: 0.8 A²/s.
- Rated breaking capacity 35 A.
- NOMINAL VOLTAGE V AC 250 V AC
- NOMINAL VOLTAGE V DC 63 V DC
- Voltage drop 220 mV
- Loss rating, max. 250 mW
- Soldibility 250 °C / 3 s
- IEC 60127-3 standard
- Product type
Pico fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 0.64 mm x 18.8 mm
- Nominal current - rounded value
320 mA
- Nominal current
0.32 A
- Release characteristics
Time delay -T-
- Type
THT
- Material
Thermoplastic
- Length
18.8 mm
- (Ø)
0.64 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.6710
Documents & Downloads
Datasheet
Datasheet 3306185 Schurter 0034.6710 0034.6710 Pico fuse THT 0.32 A 250 V AC Time delay -T- 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306185 Schurter 0034.6710 0034.6710 Pico fuse THT 0.32 A 250 V AC Time delay -T- 1 pc(s)
Description
• soldered or plugged
