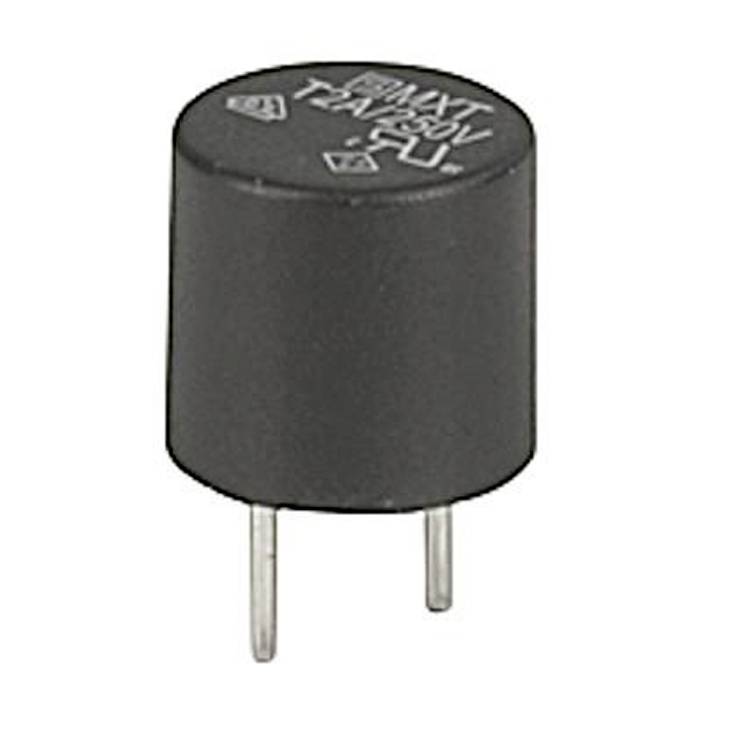

Image similar
Schurter 0034.6919 0034.6919 Pico fuse THT 2.50 A 250 V AC Time delay -T- 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pico fuse
Nominal voltage
250 V AC
Nominal current - rounded value
2.5 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series: MXT250
- Nominal voltage at 50 Hz/250 V AC
- Approvals: CULus,VDE,METI,CCC,KTL,CE
- Trigger time: Slow-blow
- Contact material: Tin-plated copper
- Housing 8.5 mm
- Applications: Primary protection on printed circuit boards|Power adapter for e.g. laptops|SMPS (switching mode Power supply) for TVs and DVDs
- Housing material: Thermoplastic, UL 94V-0
- Type of connection: THT
- Pin length 4.3 mm
- Pin diameter 0.64 mm
- Weight: 0.78 g
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Rated current 2.5 A
- Melting Integral: 32 A²/s.
- Rated breaking capacity 100 A.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 100 mV
- Loss rating, max. 1,000 mW
- Soldibility 235 °C / 2 s
- IEC 60127-3/4, UL 248-14, CSA22.2 No. 248.14, IEC/UL 62368-1
- Packaging type
Piece
- Product type
Pico fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 0.64 mm x 4.3 mm
- Nominal current - rounded value
2.5 A
- Nominal current
2.50 A
- Release characteristics
Time delay -T-
- Type
THT
- Material
Thermoplastic
- Length
4.3 mm
- (Ø)
0.64 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.6919
Documents & Downloads
Datasheet
Datasheet 3306197 Schurter 0034.6919 0034.6919 Pico fuse THT 2.50 A 250 V AC Time delay -T- 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3306197 Schurter 0034.6919 0034.6919 Pico fuse THT 2.50 A 250 V AC Time delay -T- 1 pc(s) Piece
Description
• soldered or plugged
