Schurter 0034.9857 0034.9857 Micro fuse (Ø x L) 5 mm x 20 mm 250 V AC Time delay -T- Content 1 pc(s) Box
EAN:
Part number:
Item no:
Packaging type
Box
Product type
Micro fuse
Nominal voltage
250 V AC
Release characteristics
Time delay -T-
Length
20 mm
Datasheet (PDF)
Technical specifications
- Series FST
- Nominal voltage at 50 Hz/250 V AC
- Approvals VDE, cULus, CCC
- Trigger time: Slow-blow
- Contact material: Nickel-plated copper alloy
- 5 x 20 mm case
- Applications: As primary protection in devices
- Housing material: Glass tube
- NOMINAL VOLTAGE V AC 250 V AC
- IEC 60127-2 standard
- Packaging type
Box
- Product type
Micro fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 5 mm x 20 mm
- Release characteristics
Time delay -T-
- Fuse layout
Glass tube (clear)
- Length
20 mm
- (Ø)
5 mm
- Certification marks
IEC 60127-2
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.9857
Documents & Downloads
Datasheet
Datasheet 3156681 Schurter 0034.9857 0034.9857 Micro fuse (Ø x L) 5 mm x 20 mm 250 V AC Time delay -T- Content 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3156681 Schurter 0034.9857 0034.9857 Micro fuse (Ø x L) 5 mm x 20 mm 250 V AC Time delay -T- Content 1 pc(s) Box
Description
G fuse

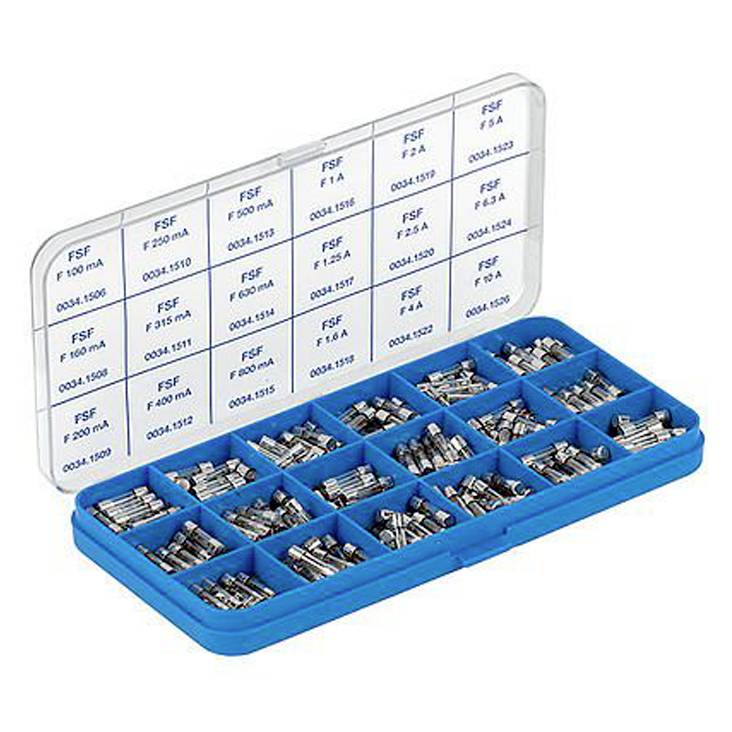

Assortment box with 18 different current values: 0.1A, 0.16A, 0.2A, 0.25A, 0.315A, 0.4A, 0.5A, 0.63A, 0.8A, 1A, 1.25A, 1.6A, 2A, 2.5A, 4A, 5A, 6.3A AND 10A
15 fuses 5x20mm per current value
refillable
Suitable for continuous pulse-shaped currents
This text is machine translated.
Assortment box with 18 different current values: 0.1A, 0.16A, 0.2A, 0.25A, 0.315A, 0.4A, 0.5A, 0.63A, 0.8A, 1A, 1.25A, 1.6A, 2A, 2.5A, 4A, 5A, 6.3A AND 10A
15 fuses 5x20mm per current value
refillable
Suitable for continuous pulse-shaped currents
