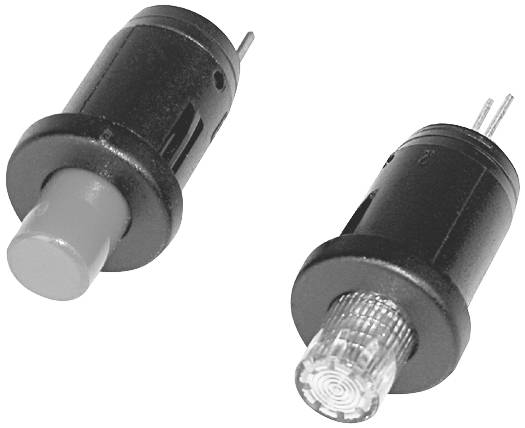

Image similar
Schurter 0041.9146.3117 0041.9146.3117 Pushbutton 60 V AC 0.2 A momentary Red IP40 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Contact type
1 maker
Switching voltage
60 V AC
Switching current (max.)
0.2 A
IP rating
IP40
Datasheet (PDF)
Highlights & Details
Schurter pushbutton,pressure switch
Our service for you
Technical specifications
- Series: LDT
- Push switch/button type
- Contact: 1 x closer
- Min. Operating temperature range -25 °C.
- Operating temperature range, max. 85 °C.
- 1xE-0
- Colour body: Black
- Colour actuators: Red
- Lighting 1
- Power: 1.2 W
- Switching voltage: 60 V/AC
- Mechanical life: 10^5 operations
- Max. switching current 0.2 A
- Contact resistance 20 mOhm
- Bounce duration, typ.: 0.5 ms
- Material: Contacts: CuZn 37/5µm Au
- Protection class/IP IP40
- Product type
Pushbutton
- Casing/button colour
Red
- Functions
momentary
- Type
red
- Colour
Red
- Contact type
1 maker
- Contact material
CuZn 37
- Contact resistance
20 mΩ
- Switching voltage
60 V AC
- Max. switching capacity
1.20 W
- Switching current (max.)
0.2 A
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP40
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0041.9146.3117
Documents & Downloads
Datasheet
Datasheet 3306331 Schurter 0041.9146.3117 0041.9146.3117 Pushbutton 60 V AC 0.2 A momentary Red IP40 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306331 Schurter 0041.9146.3117 0041.9146.3117 Pushbutton 60 V AC 0.2 A momentary Red IP40 1 pc(s)
Description
Single-pole input button or switch with one normally open contact (normally open contact)
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
