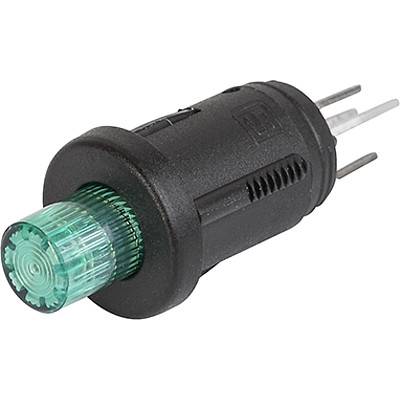

Schurter 0041.9146.5127 Pushbutton 60 V AC 0.2 A momentary Green IP40 1 pc(s)
Part number:
Item no:
Product type
Pushbutton
Lighting type
Area illumination
Contact type
1 maker
Connection
Solder pins
Switching voltage
60 V AC
Datasheet (PDF)
Highlights & Details
Pushbutton 1xA NO contact LED gn
- Single-pole input button or switch with one normally open contact (normally open contact)
Technical specifications
- Series: LDT
- Function: 1x0-(E)
- Colour body: Black
- Type of actuator: Buttons
- Colour actuators: Green
- Lighting: Illuminated
- Illumination type: Surface
- Lighting color: Green
- Re-reeling capable: No.
- Storage temperature range, min.: -25 °C.
- Storage temperature range, max. 60 °C.
- Mechanical life: 10^5 operations
- Bounce duration 0.5 ms
- Material: Contacts: CuZn 37/5µm Au
- Connection: Solder pin
- Travel: 0.5 mm
- Actuating force, max. 0.6 N
- Test voltage 1,500 V AC, 1 min
- Product type
Pushbutton
- Switch/button features
illuminable
- Casing/button colour
Black
- Functions
momentary
- Lighting type
Area illumination
- Colour
Green
- Contact type
1 maker
- Contact material
Au (gold)
- Connection
Solder pins
- Contact resistance
20 mΩ
- Switching voltage
60 V AC
- Max. switching capacity
1.2 W
- Switching current (max.)
0.2 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP40
- Actuating force
0.6 N
- Content
1 pc(s)
- RoHS-compliant
Yes
- Switching current (inductive)
0.2 A
- Type
0041.9146.5127
- Number of pins
1
Documents & Downloads
Datasheet
Datasheet 3738619 Schurter 0041.9146.5127 Pushbutton 60 V AC 0.2 A momentary Green IP40 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3738619 Schurter 0041.9146.5127 Pushbutton 60 V AC 0.2 A momentary Green IP40 1 pc(s)
Description
Schurter pushbutton LDT 1x0-(E) solder pin black 60VAC 0.2A 0.6N surface illuminated green
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
