Schurter 1241.1100.7093 1241.1100.7093 Pushbutton 48 V DC 0.125 A momentary Red IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Contact type
1 maker
Connection
Snap-in
Switching voltage
48 V DC
Datasheet (PDF)
Highlights & Details
Schurter pushbutton MCS 18
Our service for you
Technical specifications
- Series MCS18
- Push switch/button type
- Contact: 1 x closer
- Min. Operating temperature range -25 °C.
- Operating temperature range, max. 60 °C.
- Colour actuators: Red
- Lighting 0
- Power: 0.72 W
- Switching voltage: 48 V/DC
- Mechanical life: 10^6 operations
- Max. switching current 0,125 A
- Contact resistance 50 mOhm
- Bounce duration, typ.: 0.1 ms
- Material: Contacts: CuZn 37/2,5µm Au
- Travel: 0.5 mm
- Actuating force, max. 3 N
- Protection class/IP IP65
- Product type
Pushbutton
- Switch/button features
square
- Casing/button colour
Red
- Functions
momentary
- Type
red
- Lighting type
None
- Colour
Red
- Contact type
1 maker
- Contact material
CuZn 37
- Connection
Snap-in
- Contact resistance
50 mΩ
- Switching voltage
48 V DC
- Max. switching capacity
0.72 W
- Switching current (max.)
0.125 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP65
- Actuating force
3.00 N
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
1241.1100.7093
Documents & Downloads
Datasheet
Datasheet 3306335 Schurter 1241.1100.7093 1241.1100.7093 Pushbutton 48 V DC 0.125 A momentary Red IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306335 Schurter 1241.1100.7093 1241.1100.7093 Pushbutton 48 V DC 0.125 A momentary Red IP65 1 pc(s)
Description
Single-pole input button with one normally open contact
Extra flat
Snap-in front panel mounting

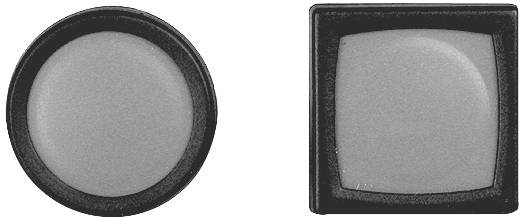

in round or square
Colours: Black, red, yellow or green
This text is machine translated.
Extra flat
Snap-in front panel mounting
in round or square
Colours: Black, red, yellow or green
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
