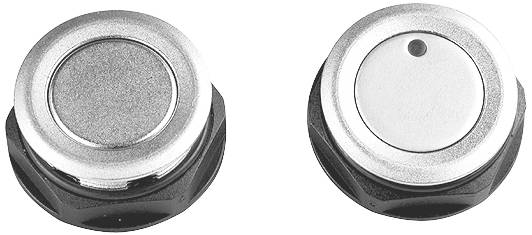

Image similar
Image similar
Schurter 1241.2855 1241.2855 Pushbutton switch 48 V DC 0.125 A Red IP40 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton switch
Contact type
1 maker
Switching voltage
48 V DC
Switching current (max.)
0.125 A
IP rating
IP40
Datasheet (PDF)
Highlights & Details
Schurter pushbutton, vandal-proof
Our service for you
Technical specifications
- Series MCS19
- Push switch/button type
- Contact: 1 x closer
- Min. Operating temperature range -25 °C.
- Operating temperature range, max. 60 °C.
- Colour body: Silver
- Colour actuators: Red
- Lighting 1
- Power: 1.2 W
- Switching voltage: 48 V/DC
- Mechanical life: 10^6 operations
- Max. switching current 0,125 A
- Contact resistance 50 mOhm
- Bounce time, typ.: Less than 5 ms
- Material: Housing: Stainless steel
- Material: Contacts: Silver-plated
- Travel: 0.4 mm
- Actuating force, max. 3.7 N
- Protection class/IP IP40
- Product type
Pushbutton switch
- Type
red
- Colour
Red
- Contact type
1 maker
- Material
Stainless steel
- Contact material
Silver plated
- Contact resistance
50 mΩ
- Switching voltage
48 V DC
- Max. switching capacity
1.20 W
- Switching current (max.)
0.125 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP40
- Actuating force
3.70 N
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
1241.2855
Documents & Downloads
Datasheet
Datasheet 3156892 Schurter 1241.2855 1241.2855 Pushbutton switch 48 V DC 0.125 A Red IP40 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156892 Schurter 1241.2855 1241.2855 Pushbutton switch 48 V DC 0.125 A Red IP40 1 pc(s)
Description
Protection against vandalism
High-quality workmanship
Secure tactile input feedback
Solder pin
This text is machine translated.
High-quality workmanship
Secure tactile input feedback
Solder pin
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
