Buy Schurter 1241.3006 1241.3006 Button 42 V AC 0.1 A momentary Green IP69K 1 pc(s) Piece

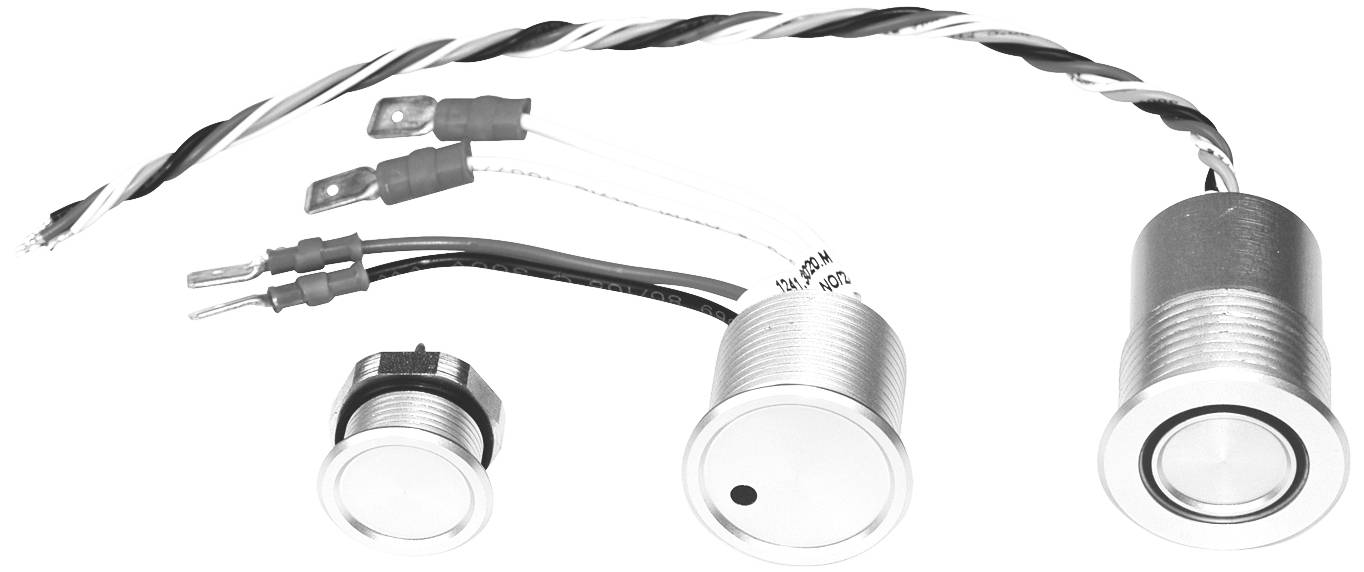

Three round push buttons, each connected with cables. Different sizes and designs, predominantly in silver.

Image similar

Packaging type

Piece

Product type

Button

Lighting type

None

Contact type

1 maker

Connection

Solder pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Schurter Piezo pushbutton PSE

Our service for you

Technical specifications

PSE series
Push switch/button type
Contact: 1 x closer
Connection: Soldering pin (PC)
Min. Operating temperature range -40 °C.
Operating temperature range, max. 85 °C.
Colour body: Silver
Colour actuators: Green
Lighting 0
Output: 1 W
Switching voltage: 42 V/AC
Electrical life: 20 x 10^6 operations
Max. switching current 0.1 A
Contact resistance 20 mOhm
Material: Housing: Aluminium, anodized
Material: Contacts: Silver-plated
Travel: 0.002 mm
Actuating force, max. 3 N
Protection class/IP IP69K

Packaging type: Piece

Product type: Button

Switch/button features: illuminable

Casing/button colour: Green

Functions: momentary

Type: Green

Lighting type: None

Colour: Green

Contact type: 1 maker

Material: Aluminium

Contact material: Silver plated

Connection: Solder pins

Contact resistance: 20 mΩ

Switching voltage: 42 V AC

Max. switching capacity: 1.00 W

Switching current (max.): 0.1 A

Min. temperature: -40 °C

Max. temperature: 85 °C

: IP69K

Actuating force: 3.00 N

Content: 1 pc(s)

RoHS-compliant: Yes

Type: 1241.3006

Documents & Downloads

Datasheet

Datasheet 3156743 Schurter 1241.3006 1241.3006 Button 42 V AC 0.1 A momentary Green IP69K 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3156743 Schurter 1241.3006 1241.3006 Button 42 V AC 0.1 A momentary Green IP69K 1 pc(s) Piece

Description

Protection class IP69K
Densely closed surface
suitable for seawater
Suitable for high pressure cleaning
High processing quality and very long life
Casing material: Anodised aluminum
Casing color: Red, green or aluminum natural
With ring, spot light or unilluminated
Pin, plug-in or wire connection
