Image similar

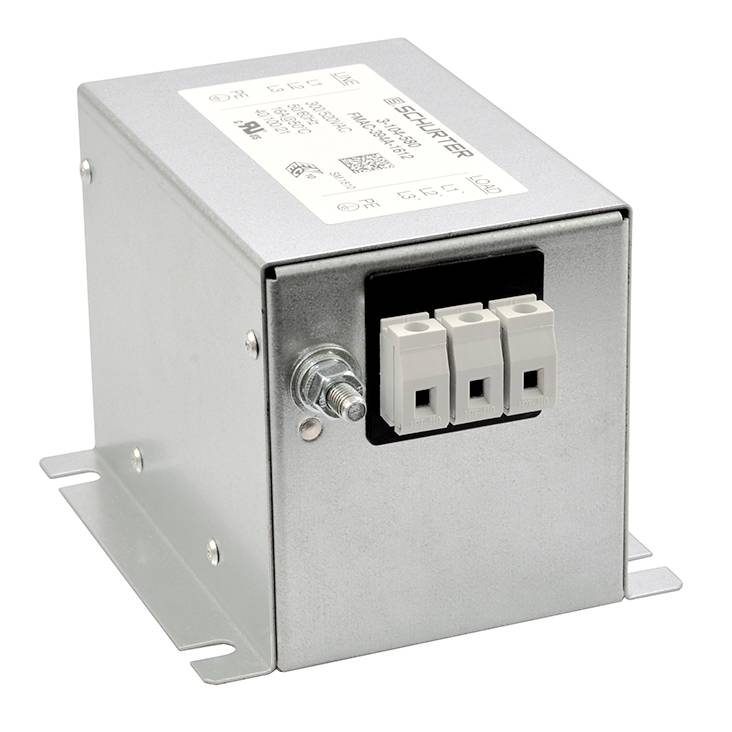

Schurter 3-104-580 3-104-580 Line filter 16.00 A 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Line filter
Connection
Clamp
Nominal current - rounded value
16 A
Nominal current
16.00 A
Datasheet (PDF)
Technical specifications
- FMAC NEO series
- Mounting type: Chassis assembly
- Min. Operating temperature -40 °C
- Max. operating temperature: 100 °C
- Dielectric strength 2NO, conductor/earth 2.75 kV DC
- Dielectric strength 2NO, conductor/conductor 2.25 kV DC
- Leakage current 1.5 mA max.
- Climate category: 40/100/21
- Approvals: CRUus, ENEC10
- Packaging type
Single
- Product type
Line filter
- Connection
Clamp
- Nominal current
16.00 A
- Nominal current - rounded value
16 A
- Leakage current
1.50 mA
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Manufacturer part #
3-104-580
- Type
3-104-580
- Content
1 pc(s)
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3156748 Schurter 3-104-580 3-104-580 Line filter 16.00 A 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3156748 Schurter 3-104-580 3-104-580 Line filter 16.00 A 1 pc(s) Single
Description
Industrial version
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
