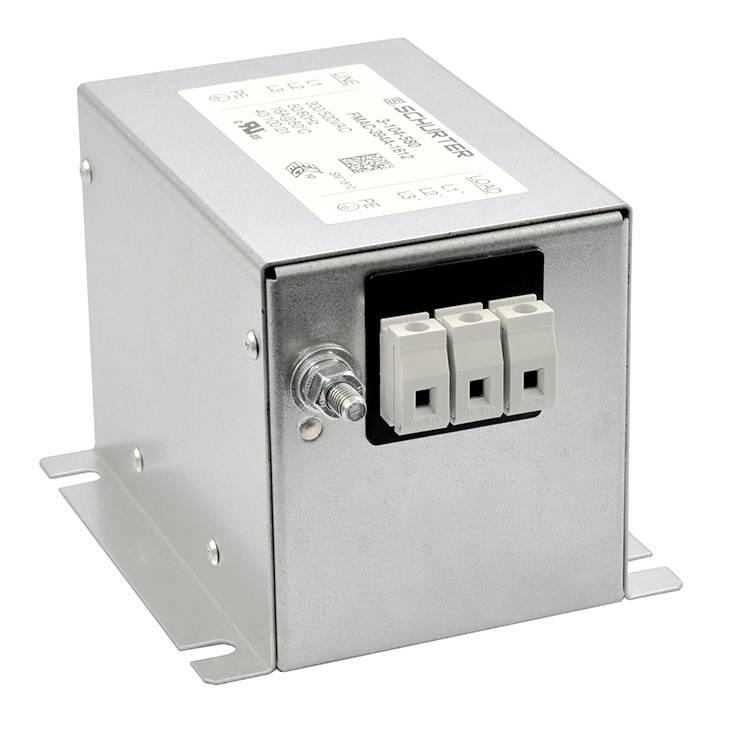

Schurter 3-104-841 3-104-841 Line filter 25.00 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line filter
Nominal current - rounded value
25 A
Nominal current
25.00 A
Leakage current
3.00 mA
Min. temperature
-40 °C
Datasheet (PDF)
Technical specifications
- FMAC NEO series
- Mounting type: Chassis assembly
- Min. Operating temperature -40 °C
- Max. operating temperature: 100 °C
- Dielectric strength 2NO, conductor/earth 2.75 kV DC
- Dielectric strength 2NO, conductor/conductor 2.25 kV DC
- Leakage current 3 mA max.
- Climate category: 40/100/21
- Approvals: CRUus, ENEC10
- Product type
Line filter
- Nominal current
25.00 A
- Nominal current - rounded value
25 A
- Leakage current
3.00 mA
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Manufacturer part #
3-104-841
- Type
3-104-841
- Content
1 pc(s)
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3156757 Schurter 3-104-841 3-104-841 Line filter 25.00 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156757 Schurter 3-104-841 3-104-841 Line filter 25.00 A 1 pc(s)
Description
Low-leakage version
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
With modular terminals for quick installation
Suitable for devices of the protection class I.
