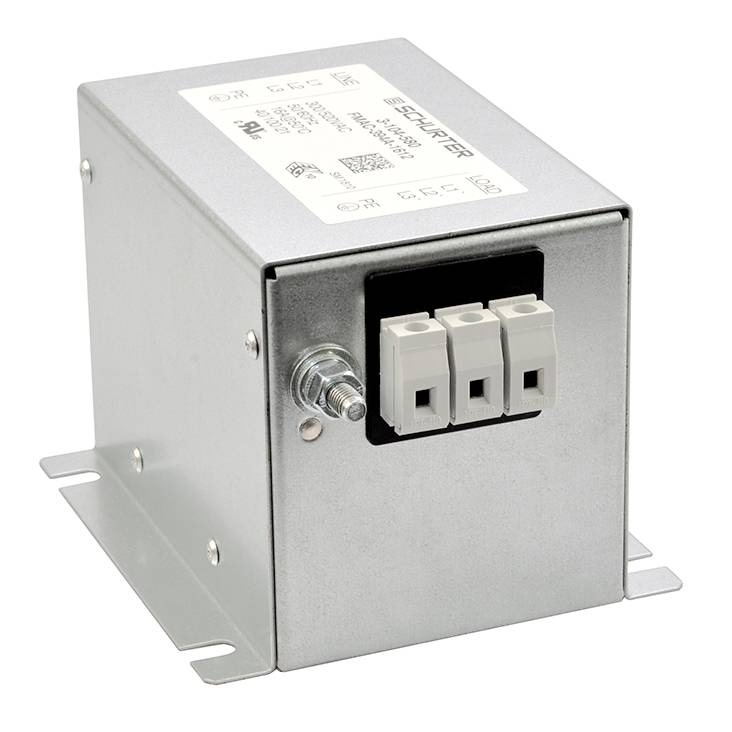

Schurter 3-104-862 3-104-862 Line filter 16.00 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line filter
Connection
Clamp
Nominal current - rounded value
16 A
Mounting type
Chassis
Datasheet (PDF)
Technical specifications
- FMAC NEO series
- Mounting type: Chassis assembly
- Min. Operating temperature -40 °C
- Max. operating temperature: 100 °C
- Dielectric strength 2NO, conductor/earth 2.75 kV DC
- Dielectric strength 2NO, conductor/conductor 2.25 kV DC
- Leakage current 1.4 mA max.
- Climate category: 40/100/21
- Approvals: CRUus, ENEC10
- Packaging type
Piece
- Product type
Line filter
- Connection
Clamp
- Mounting type
Chassis
- Nominal current
16.00 A
- Nominal current - rounded value
16 A
- Leakage current
1.40 mA
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Manufacturer part #
3-104-862
- Type
3-104-862
- Content
1 pc(s)
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3156758 Schurter 3-104-862 3-104-862 Line filter 16.00 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3156758 Schurter 3-104-862 3-104-862 Line filter 16.00 A 1 pc(s) Piece
Description
Low-leakage version
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
