Image similar

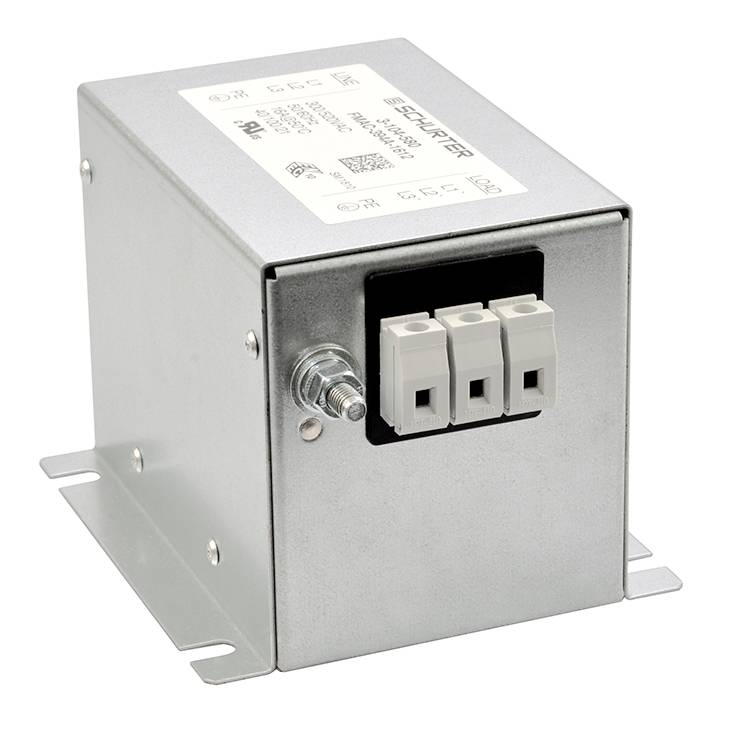

Schurter 3-104-872 3-104-872 Line filter 36.00 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line filter
Connection
Clamp
Nominal current - rounded value
36 A
Nominal current
36.00 A
Datasheet (PDF)
Technical specifications
- FMAC NEO series
- Mounting type: Chassis assembly
- Min. Operating temperature -40 °C
- Max. operating temperature: 100 °C
- Dielectric strength 2NO, conductor/earth 2.75 kV DC
- Dielectric strength 2NO, conductor/conductor 2.25 kV DC
- Leakage current 3 mA max.
- Climate category: 40/100/21
- Approvals: CRUus, ENEC10
- Packaging type
Piece
- Product type
Line filter
- Connection
Clamp
- Nominal current
36.00 A
- Nominal current - rounded value
36 A
- Leakage current
3.00 mA
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Manufacturer part #
3-104-872
- Type
3-104-872
- Content
1 pc(s)
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3156759 Schurter 3-104-872 3-104-872 Line filter 36.00 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3156759 Schurter 3-104-872 3-104-872 Line filter 36.00 A 1 pc(s) Piece
Description
Low-leakage version
With modular terminals for quick installation
Suitable for devices of the protection class I.
This text is machine translated.
With modular terminals for quick installation
Suitable for devices of the protection class I.
