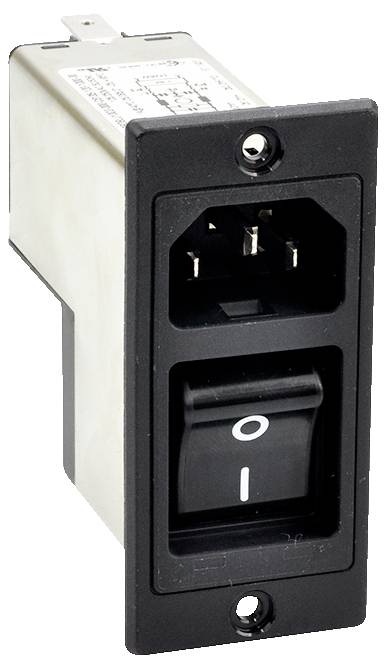

Schurter 3-109-558 EMI filter 250 V 3 A 4 mH (L x W x H) 78.3 x 35 x 76 mm 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
EMI filter
Connection
Type C CEE 7/16 plug 6.3 mm
Inductance (L)
4 mH
Nominal voltage
250 V
Datasheet (PDF)
Highlights & Details
Mains filter IEC 2pole 3A screw A
- 2-pin line filter in metal housing with retractable rocker switch
- Suitable for devices of the protection class I.
- With spade connection 6.3 x 0.8mm
Technical specifications
- Series DG12
- Shock resistance 220 nF
- Contact resistance, max. 2.2 nF
- Mounting type: Panel mounting
- Dielectric strength 2NO, conductor/earth 2.7 kV DC
- Dielectric strength 2NO, conductor/conductor 1.7 kV DC
- Climate category HPF (25/060/21)
- Protection: front IP40
- Packaging type
Piece
- Product type
EMI filter
- Connection
Type C CEE 7/16 plug 6.3 mm
- Inductance (L)
4 mH
- Nominal voltage
250 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Leakage current
0.5 mA
- Material
Metal
- Length
78.3 mm
- Width
35 mm
- Height
76 mm
- Min. temperature
25 °C
- Max. temperature
060 °C
- Certification marks
IEC 60320-1; IEC 60939; IEC 61058-1; UL 60320-1; UL 60939-3; CSA C22.2 No. 60320-1; CSA C22.2 No. 8; UL 62368-1; IEC 62368-1
- Manufacturer part #
3-109-558
- Type
3-109-558
- Content
1 pc(s)
- Dim
(L x W x H) 78.3 x 35 x 76 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3738152 Schurter 3-109-558 EMI filter 250 V 3 A 4 mH (L x W x H) 78.3 x 35 x 76 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738152 Schurter 3-109-558 EMI filter 250 V 3 A 4 mH (L x W x H) 78.3 x 35 x 76 mm 1 pc(s) Piece
Description
Schurter IEC-filter DG12 panel mounting 250V 3A IP40
