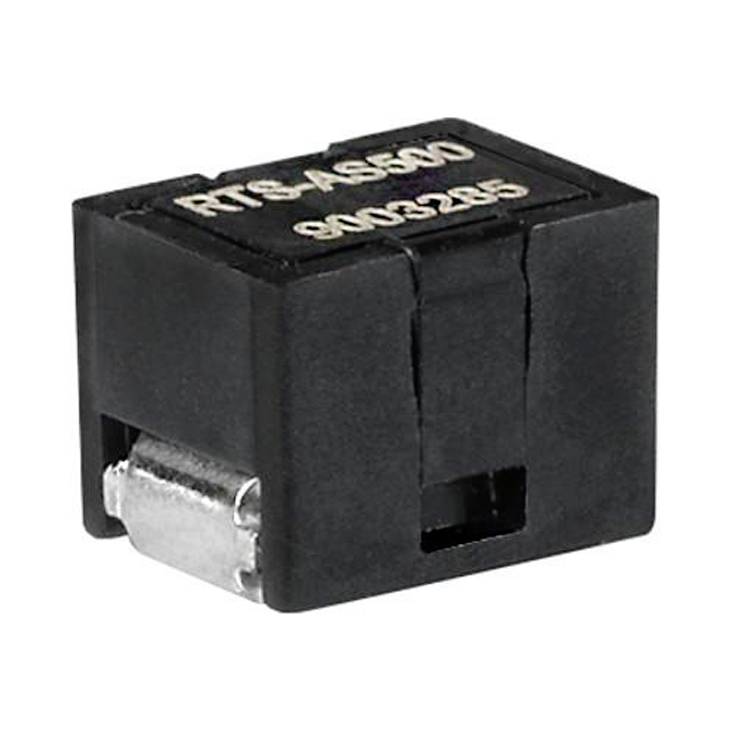

Schurter 3-119-589 3-119-589 Fuse holder 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse holder
Mounting type
Surface-mount
Connection
SMD
Material
Plastic
Min. temperature
-40 °C
Datasheet (PDF)
Highlights & Details
Schurter RTS series temperature fuse
Our service for you
Technical specifications
- Series: ---RTS
- Dimensions: Length 8.8 mm
- Dimensions: Width 6.6 mm
- Dimensions: Height 6.7 mm
- Nominal current 130 A
- SMD mounting
- Contact material: Tin-plated copper alloy
- Applications: Wherever power transistors are in use | Automotive industry: Cooling fan applications, ABS power steering, PTC heaters, HVAC, glow plugs, Diesel Radiators|Industry: battery protection, power supplies, lighting ballasts, H-bridge circuits, motor drives
- Housing material: Plastic
- SMD connection type
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 150 °C.
- Switch-off current, max. 400 A
- NOMINAL VOLTAGE V DC 60 V DC
- Cold resistance, min.: 500 µOhm
- Cold resistance, max. 580 µOhm
- Switch-off temperature, max. 210°C.
- STANDARDS IEC/UL 62368-1, AEC-Q200
- Product type
Fuse holder
- Connection
SMD
- Material
Plastic
- Mounting type
Surface-mount
- Min. temperature
-40 °C
- Max. temperature
150 °C
- Length
8.80 mm
- Width
6.00 mm
- Height
6.70 mm
- Dimensions
Länge: 8.8 mm Abmessung: Breite: 6.6 mm Abmessung: Höhe: 6.7 mm mm
- Content
1 pc(s)
- Dim
(L x W x H) 8.80 x 6.00 x 6.70 mm
- RoHS-compliant
Yes
- Type
3-119-589
Documents & Downloads
Datasheet
Datasheet 3306243 Schurter 3-119-589 3-119-589 Fuse holder 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306243 Schurter 3-119-589 3-119-589 Fuse holder 1 pc(s)
Description
• SMD temperature protection for high currents
• Patented SMD thermal fuse as protection against thermal passage of power semiconductors such as: MOSFET's, ICs, IGBT's, Triac's, SCR's, etc.
• Highest reliability thanks to complete galvanic isolation
• Galvanic isolation takes place completely inside the RTS thermal fuse
• Can cleanly separate rated voltages up to 60V DC
• Reflow compatible by means of subsequent mechanical activation
• Space-saving thanks to integrated shunt (3-119-589)
• AEC-Q20 compliant
This text is machine translated.
• Patented SMD thermal fuse as protection against thermal passage of power semiconductors such as: MOSFET's, ICs, IGBT's, Triac's, SCR's, etc.
• Highest reliability thanks to complete galvanic isolation
• Galvanic isolation takes place completely inside the RTS thermal fuse
• Can cleanly separate rated voltages up to 60V DC
• Reflow compatible by means of subsequent mechanical activation
• Space-saving thanks to integrated shunt (3-119-589)
• AEC-Q20 compliant
