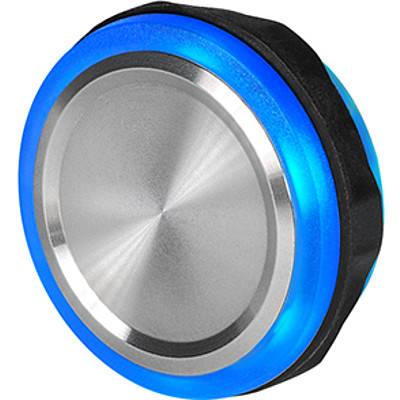

Schurter 3-126-793 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Lighting type
Circular lighting
Contact type
1 maker
Connection
Jack connector
Datasheet (PDF)
Highlights & Details
MSS 30 button multi-color lighted
- 3-126-215: Connection cable with 6 strands for illuminated multi-color switch and button
Technical specifications
- Series MSS
- Function: 1x0-(E)
- Color body: Translucent
- Type of actuator: Buttons
- Colour actuators: Silver
- Lighting: Illuminated
- Lighting type: Ring
- Illumination color: Multi-color
- Housing cut-out: Ø30,1mm
- Storage temperature range, min.: -40 °C.
- Storage temperature range, max. 85 °C.
- Material: Body: PMMA
- Material: Actuator: Stainless steel
- Thread M30 x 1.5
- Connector: Plug connection
- Actuating force, max. 3 N
- LED SUPPLY VOLTAGE 28 V DC
- Electrical life: 20 x 10^6 operations
- Packaging type
Piece
- Product type
Pushbutton
- Switch/button features
illuminable
- Casing/button colour
Silver
- Functions
momentary
- Lighting type
Circular lighting
- Colour
Multi-colour
- Bulb type
LED (monochrome)
- Contact type
1 maker
- Material
Stainless steel
- Connection
Jack connector
- Switching voltage
60 V DC
- Max. switching capacity
1 W
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
85 °C
- (Ø)
30 mm
- Recess diameter
30.1 mm
- Front panel cut-out
Ø30.1mm mm
IP67
- Actuating force
3 N
- Content
1 pc(s)
- Dim
(Ø) 30 mm
- RoHS-compliant
Yes
- Type
3-126-793
- Number of pins
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3738195 Schurter 3-126-793 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738195 Schurter 3-126-793 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece
Description
Schurter pushbutton MSS 1x0-(E) plug connection translucent 60VDC 0.1A 3N ring illuminated Multicolor
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
