Buy Schurter 3-126-794 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece

Highlights & Details

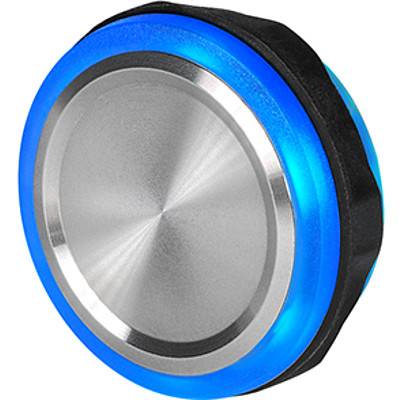

MSS 30 switch multi-color illuminated

3-126-215: Connection cable with 6 strands for illuminated multi-color switch and button

Technical specifications

Series MSS
Function: 1x0-E
Color body: Translucent
Type of actuator: Buttons
Colour actuators: Silver
Lighting: Illuminated
Lighting type: Ring
Illumination color: Multi-color
Housing cut-out: Ø30,1mm
Storage temperature range, min.: -40 °C.
Storage temperature range, max. 85 °C.
Material: Body: PMMA
Material: Actuator: Stainless steel
Thread M30 x 1.5
Connector: Plug connection
Actuating force, max. 3 N
LED SUPPLY VOLTAGE 28 V DC
Electrical life: 20 x 10^6 operations

Packaging type: Piece

Product type: Pushbutton

Switch/button features: illuminable

Functions: momentary

Lighting type: Circular lighting

Colour: Multi-colour

Bulb type: LED (monochrome)

Contact type: 1 maker

Material: PMMA

Contact material: Stainless steel

Connection: Jack connector

Switching voltage: 60 V DC

Max. switching capacity: 1 W

Switching current (max.): 0.1 A

Min. temperature: -40 °C

Max. temperature: 85 °C

(Ø): 30 mm

Recess diameter: 30.1 mm

Front panel cut-out: Ø30.1 mm

: IP67

Actuating force: 3 N

Content: 1 pc(s)

Dim: (Ø) 30 mm

RoHS-compliant: Yes

Switching current (inductive): 0.1 A

Type: 3-126-794

Number of pins: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3738196 Schurter 3-126-794 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3738196 Schurter 3-126-794 Pushbutton 60 V DC 0.1 A momentary Multi-colour (Ø) 30 mm IP67 1 pc(s) Piece
